TUF GAMING Z590-PLUS WIFI Desktop Motherboard - Intel Z590 Chipset - Socket LGA-1200 - Intel Optane Memory Ready - ATX

Sorry, this item is out of stock

Browse similar items
TUF GAMING Z590-PLUS WIFI Desktop Motherboard - Intel Z590 Chipset - Socket LGA-1200 - Intel Optane Memory Ready - ATX
TUF GAMING Z590-PLUS WIFI Desktop Motherboard - Intel Z590 Chipset - Socket LGA-1200 - Intel Optane Memory Ready - ATX

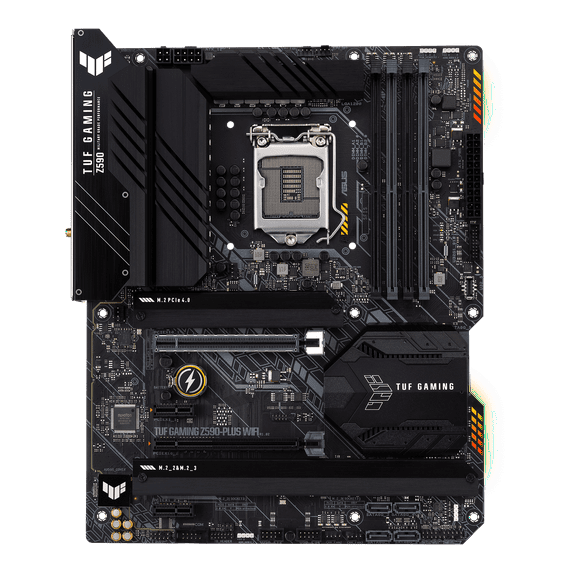

Hero image 0 of TUF GAMING Z590-PLUS WIFI Desktop Motherboard - Intel Z590 Chipset - Socket LGA-1200 - Intel Optane Memory Ready - ATX, 0 of 4
Visit the ASUS Store

TUF GAMING Z590-PLUS WIFI Desktop Motherboard - Intel Z590 Chipset - Socket LGA-1200 - Intel Optane Memory Ready - ATX

4.5 stars out of 71 reviews
(4.5)|
71 ratings

Key item features

  • CPU

    Intel Socket LGA1200 for 11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
    Supports Intel 14 nm CPU
    Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

  • Chipset

    Intel Z590 Chipset

  • Memory

    4x DIMM, Max. 128GB, DDR4 5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Supports Intel Extreme Memory Profile (XMP)
    OptiMem II

  • Graphics

    1x DisplayPort 1.4
    1x HDMITM 2.0

  • Expansion Slots

    Intel 11th & 10th Gen Processors
    1x PCIe 4.0/3.0 x16 slot
    Intel 11th processors support PCIe 4.0 x16
    Intel10th processors support PCIe 3.0 x16

    Intel Z590 Chipset
    1x PCIe 3.0 x16 slot (supports x4 mode)
    2x PCIe 3.0 x1 slots

  • Storage

    Total supports 3x M.2 slots and 6 x SATA 6Gb/s ports

    Intel 11th Gen Processors
    M.2_1 slot (Key M), type 2242/2260/2280/22110
    Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs

    Intel Z590 Chipset
    M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
    M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
    6 x SATA 6Gb/s ports

  • Ethernet

    1x Intel I225-V 2.5Gb Ethernet
    TUF LANGuard

  • Wireless & Bluetooth

    Intel Wi-Fi 6
    2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
    Supports 2.4/5GHz frequency band
    Bluetooth v5.0 or later

  • USB

    Rear USB (Total 7 ports)
    1x USB 3.2 Gen 2x2 port (1x USB Type-C)
    2x USB 3.2 Gen 2 ports (2x Type-A)
    2x USB 3.2 Gen 1 ports (2x Type-A)
    2x USB 2.0 ports (2x Type-A)
    Front USB (Total 7 ports)
    1x USB 3.2 Gen 1 connector (suppports USB Type-C)
    1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
    2x USB 2.0 headers support additional 4 USB 2.0 ports

  • Audio

    Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
    Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    Supports up to 24-Bit/192 kHz playback

    Audio Features
    Audio Shielding
    Rear optical S/PDIF out port
    Premium Japanese audio capacitors
    Dedicated audio PCB layers
    Audio cover

  • Back Panel I/O Ports

    1x USB 3.2 Gen 2x2 port (1x USB Type-C)
    2x USB 3.2 Gen 2 ports (2x Type-A)
    2x USB 3.2 Gen 1 ports (2x Type-A)
    2x USB 2.0 ports (2x Type-A)
    1x DisplayPort
    1x HDMI port
    1x ASUS Wi-Fi Module
    1x Intel I225-V 2.5Gb Ethernet port
    5x Audio jacks
    1x Optical S/PDIF out port
    1x PS/2 Keyboard/Mouse combo port

  • Internal I/O Connectors

    Fan and Cooling related
    1x 4-pin CPU Fan header
    1x 4-pin CPU OPT Fan header
    1x 4-pin AIO Pump header
    3x 4-pin Chassis Fan headers

    Power related
    1x 24-pin Main Power connector
    1x 8-pin +12V Power connector
    1x 4-pin +12V Power connector

    Storage related
    3x M.2 slots (Key M)
    6x SATA 6Gb/s ports

  • Internal I/O Connectors (Contd.)

    USB
    1x USB 3.2 Gen 1 connector (supports USB Type-C)
    1x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports
    2x USB 2.0 headers support additional 4 USB 2.0 ports

    Miscellaneous
    2x AURA Addressable Gen 2 headers
    2x AURA RGB headers
    1x Clear CMOS header
    1x COM Port header
    1x Front Panel Audio header (AAFP)

  • Internal I/O Connectors (Contd..)

    1x 20-3 pin System Panel header with Chassis intrude function
    1x Thunderbolt header

  • Special Features

    ASUS TUF PROTECTION
    DIGI+ VRM (- Digital power design with DrMOS)
    Enhanced DRAM Overcurrent Protection
    TUF LANGuard
    Overvoltage Protection

    ASUS Q-Design
    M.2 Q-Latch
    Q-DIMM
    Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    Q-Slot

    ASUS Thermal Solution
    M.2 heatsink
    VRM heatsink design

  • Special Features (Contd.)

    ASUS EZ DIY
    ProCool
    Pre-mounted I/O shield
    SafeSlot

    AURA Sync
    AURA RGB headers
    Addressable Gen 2 RGB headers

  • Software Features

    ASUS Exclusive Software

    Armoury Crate
    AURA Creator
    AURA Sync
    Two-Way AI Noise Cancelation

    AI Suite 3
    Performance And Power Saving Utility

    TurboV EVO
    EPU
    Digi+ VRM

    Fan Xpert 4
    EZ update

    TUF GAMING CPU-Z
    AI Charger
    ASUS Turbo LAN
    DAEMON Tools
    DTS Custom for GAMING Headsets
    MyASUS

  • Software Features (Contd.)

    Norton Anti-virus software (Free Trial version)
    WinRAR
    UEFI BIOS

    ASUS EZ DIY
    ASUS CrashFree BIOS 3
    ASUS EZ Flash 3
    ASUS UEFI BIOS EZ Mode

  • BIOS

    192 (128+64) Mb Flash ROM, UEFI AMI BIOS

  • Manageability

    WOL by PME, PXE

  • Operating System

    Windows 10 64-bit

  • Form Factor

    ATX

  • Dimensions

    12x 9.6" ( 30.5x 24.4cm)
