Applicable to Sensor Kit, Meter and Instruments, Engine Coolant

Applicable to

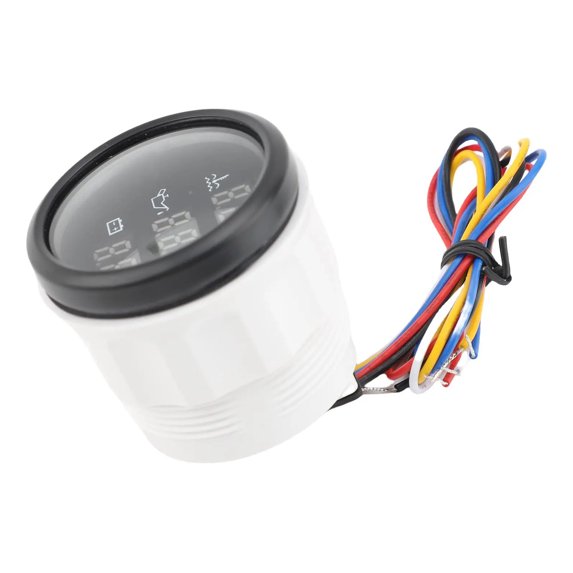

3 in 1 Instrument Sensor Kit, Engine Coolant Temperature and Oil Pressure Gauge, Battery Voltmeter for Car and Boat, 52mm Digital Display,

backlight function:

3 in 1 instrument Used as engine coolant temperature gauge, engine oil pressure gauge and battery voltage indicator. With a digital display, it provides clear readings. The coolant temperature measurement range is 0-120 degrees Celsius and the oil pressure range is 0-10 bar Safe alert system. This instrument is equipped with an alert function to ensure safety during driving or navigation. The high temperature alert activates at a temperature greater than or equal to 95 degrees Celsius and the low oil pressure alert activates at a temperature less than and equal to 0.8 bar Wide Compatibility The engine gauge has an outside diameter of 2-1/16 inches (52.2 mm). Its compact size makes it suitable for installation in cars, caravans, trucks, boats, yachts and motorcycles, ensuring great compatibility Professional Sensor This instrument kit includes a 1/8 inch NPT water temperature sensor (1600-22 Omega range) and a 1/8 inch NPT oil pressure sensor (10-184 Omega). It features an IP67 waterproof rating and a 5G shock resistance rating, ensuring reliability during off-road adventures or daily commutes Convenient and practical This 3-in-1 instrument kit is easy to plug and play, combining a sleek design with smart safety features. It is a practical tool to update your dashboard and detect engine performance

Specs:

Item Type: Car Boat Instrument

Digital display Color: red

Shell material: ABS

Gauge diameter: 52.2 mm (2 1/16 inches)

Measurement content: water temperature + oil pressure + voltage

Coolant temperature measurement range: 0-120 degrees Celsius

Engine oil pressure measurement range: 0-10 bar

Sensor thread size

Pressure sensor pressure: NPT 1/8 inch

Working current: less than or greater than 60 mA in

Operating Temperature: -30 degrees Celsius to 80 degrees Celsius

Storage temperature: -40 degrees Celsius to 85 degrees Celsius

Water resistance level: IP67

Shockproof level: 5G

Application: cars, caravans, trucks, boats, yachts, motorcycles

Wiring method:

1. Black wire

: negative power (-) 2. Red wire: DC voltage

3. Blue wire: NC not connected

4. Yellow wire: water temperature signal wire

5. White wire: oil pressure signal wire.

Package list:

1 instrument 3 in

1, 1 water temperature sensor,

1 pressure sensor, 1 English user manual,
