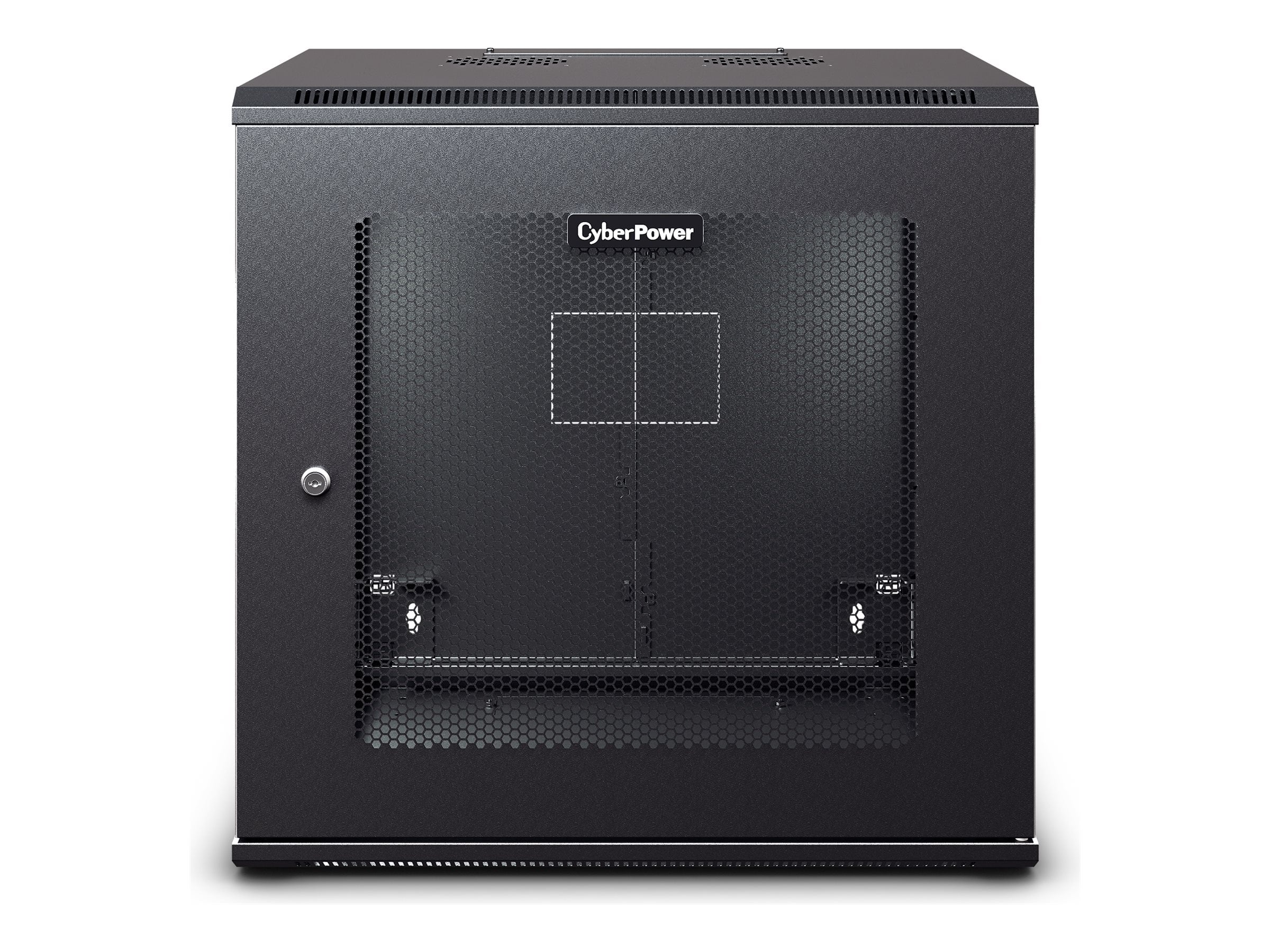

CyberPower CR12U61003 Wall Mount Enclosure

Technical Information

Application/Usage: Switch, Patch Panel
Features: Perforated Door, Lockable Door, Lockable Side Panel, Removable Door, Removable Side Panel, Reversible Front Door, Vented, Reversible Door

Physical Characteristics

Form Factor: Wall Mountable
Color Family: Black
Product Color: Black
Product Material: Metal
Static/Stationary Weight Capacity: 132.28 lb
Height: 23.1"
Width: 23.6"
Depth: 23.6"
Weight (Approximate): 39.71 lb
Rack Height: 12U

Miscellaneous

Package Contents:

• CR12U61003 Wall Mount Enclosure
• Mounting Hardware

Additional Information:

Physical Dimensions - (WxHxD) (cm) : 59.94 x 58.67 x 59.94 (cm)

Physical Dimensions - (WxHxD) (in) : 23.6 x 23.1 x 23.6 (in)

Physical Dimensions - (WxHxD) (mm) : 599 x 587 x 599 (mm)

Weight (kg) : 18.01

Weight (lb) : 39.7

Shipping Dimensions - (WxHxD) (cm) : 66.68 x 71.12 x 66.68 (cm)

Shipping - Dimensions (WxHxD, in) : 26.25 x 28 x 26.25 (in)

Shipping - Dimensions (WxHxD, mm) : 666.75 x 711.2 x 666.75 (mm)

Shipping - Weight (kg) : 21.59

Shipping - Weight (lb) : 47.6

USB Charge Port : No

Cable Access Opening Dimensions : 9.8 x 2.2 in (249 x 56 m)

Color : Black

Door Type : Hex Perforated Metal Door

Factory Default Mounting Depth : 13.2 ft (335.3 mm)

Material of Construction : Metal

Max. Mounting Depth (in) : 20.3

Max. Mounting Depth (mm) : 516

Min. Mounting Depth (in) : 1.9

Min. Mounting Depth (mm) : 47

Rack Angle Mounting Hole Type : Square Mounting Holes

Rack Height : 12U

Wall Mount Rear Frame : Swing Out

Weight Capacity - stationary load (kg) : 60

Weight Capacity - stationary load (lbs) : 132.3

Cable Access : Top and Bottom Openings

Lockable Doors and Side Panels : Yes, keyed alike

Numbered Rack Units : Yes

PE Grounding Point : Yes

Removable Doors and Side Panels : Yes

Reversible Front Door : Yes

Ventilation : Perforated Doors

Protection Class : IP20

Environmental : RoHS Compliant

Safety : EIA-310E, IEC-60297-1, 2, ASTM-D610, ASTM-B117

Product Warranty : 5 Year Limited Warranty

Certifications & Standards: Safety: EIA-310E, IEC-60297-1, 2, ASTM-D610, ASTM-B117
Assembly Required: No
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 5 Year
