Key Features:
- Kit allows you to choose how you want to configure your shield
- Updated for the most compatibility with Arduinos
- Surface-mount chip area holds up to 14 SOIC size parts
- Compatible with tiny breadboards.

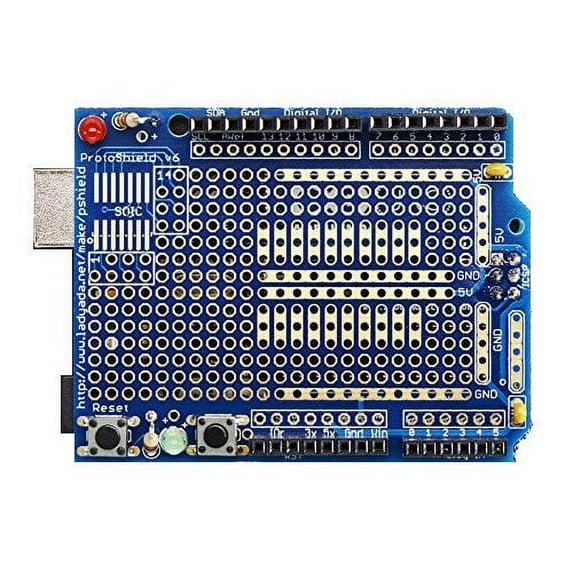

This prototyping shield is the best out there (well, we think so, at least), and now is even better with Version R3 - updated for the most compatibility with just about all the Arduinos! It has a nice standard 0.1"x0.1" prototying grid with big, gold plated pads and comes with stacking headers and plain header, choose whichever you want when soldering together. You will also find A pass-thru ICSP stacking header so you can stack any kind of shield on top, and/or use an AVR programmer. It has a IC pattern for adding DIP ICs, up to 20 pins. The power rails are down the middle and sides. A reset button, an extra general use button and two 3mm general use LEDs, red and green, as well as 2 matching resistors are also included in this kit. Plus, get two 0.1uF capacitors on either side for extra power stability.
Item Specifics
Comes as a kit of parts
Compatible with tiny breadboards.
Some soldering skills required.
Compatible with regular Arduino headers
Dimensions (assembled): 69mm x 53mm x 13mm (2.7in x 2.1in x 0.5in)
