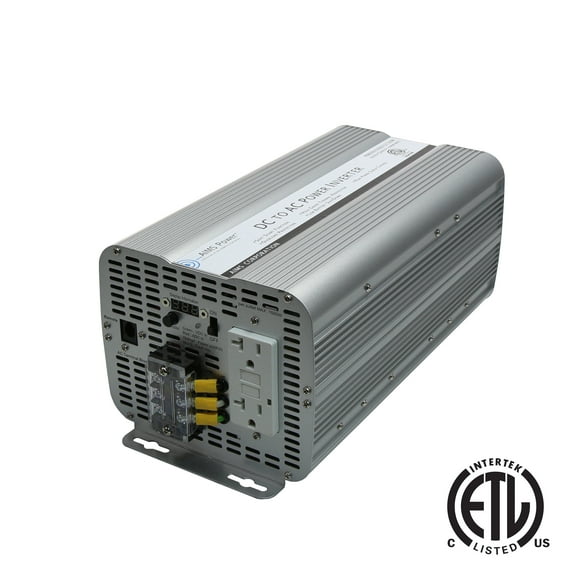

AIMS Power 5000 Watt 12 Volt Modified Sine Inverter

• Features

  • 5000 Watt max continuous power
  • 10,000 watt surge (not recommended for start up applications)
  • Modified sine wave
  • Volt meter on front panel to monitor your battery voltage
  • Amp meter on front panel to monitor your current use (rate at which battery is drained)
  • AC direct connect terminal
  • Overtemperature LED indicator
  • Overload LED indicator
  • Quadruple AC receptacle that can be used with any separate splitter to provide even more outlets
  • On/off switch
  • Overtemperature protection
  • Overload protection
  • Single cooling fan operation thermally controlled only kicks on when needed
  • Internally fuse protected
  • AC output short circuit protection
  • Auto reset on most fault conditions
  • Aluminum case for optimal cooling
  • Pre-wired for remote on/off switch
  • Pre-slotted mounting plate
  • Instruction manual
  • Free 1 year tech support
  • 1 Year warranty parts and labor

Specifications: 5000 WATT MODIFIED SINE INVERTER

• Continuous output power: 5000 Watt
• Surge power capability (peak power): 10,000 Watt
• DC input / operating voltage: 10 to 16 volts
• Output voltage: 120 volts ac +/- 10%
• Output wave form: modified sine wave with phase correction
• Output frequency: 60 Hz +/- 1 Hz
• Battery low voltage alarm: 10.5 +/- 0.5 volts
• Battery low voltage shutdown: 10.0 +/- 0.5 volts
• No load current: < 0.6 Amps
• Full load efficiency: 90%
• 1/3 load efficiency: 95%
• No load minimum operating temperature: 5° F
• Full load maximum operating temperature: 131 +/- 10° F (automatic shutdown)
• AC output socket type: quadruple type 2 -3 prong
• High input voltage protection: 15V-17V
• Low input voltage shutdown: 10V
• Internal fuse protection
• UL maximum recommended per outlet 1500W
