Panduit

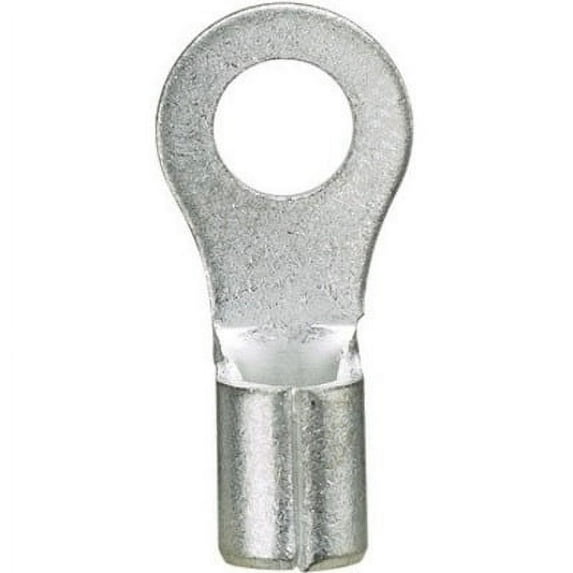

Panduit P10-10R-L

(No ratings yet)

Key item features

Connection Material:Copper
Connection Type:Crimp
Contact Finish:Tin
Contact Material:Copper
Environmentally Friendly:Yes
Features:Brazed Seam
Hole Diameter:0.2 in
Max. Temp.:302 Degrees F
Maximum Copper Conductor Size (AWG):#10
Maximum Metric Conductor Size (mm²):6
Maximum Metric Conductor Size (mmÂ²):6
Maximum Operating Temperature:302 Degrees F
Maximum Voltage:2,000 V
Maximum Wire Size (AWG):#10
Maximum Wire Size:10 AWG
Minimum Copper Conductor Size (AWG):#14
Minimum Metric Conductor Size (mm²):2.5
Minimum Metric Conductor Size (mmÂ²):2.5
Minimum Operating Temperature:302 Degrees F
Minimum Wire Size (AWG):#14
Minimum Wire Size:14 AWG
Overall Lengt
Overall Length (In.):0.81
Overall Length:0.81 in
Ring Width Ranges:0.26 - 0.50 inches
Tongue Thickness (In.):0.04
Tongue Thickness (mm):1
Tongue Thickness:0.04 in
Tongue Width - Wire Connector:0.38 in
Tongue Width (In.):0.38
Tongue Width (mm):9.7
Tongue Width:0.38 in
Width:0.4"
Wire Range:14 to 10 AWG
Wire Strip Length (In.):11933
Wire Strip Length (mm):7.1

Specs

Wire connector type
Ring Terminal
Features
Brazed Seam
Brand
Panduit
Color
Silver
Pieces
1
Has nrtl listing certification
N

Current price is $45.39

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Columbus, 43215

Arrives by Fri, May 8

Sold and shipped by SIM Supply Inc

4.335376967688484 stars out of 5, based on 6035 seller reviews(4.3)

Report an issue with this seller

Free 30-day returns - in store or online

About this item

Product details

Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 302 Degrees F, Maximum Voltage 2,000 V, Minimum Wire Size 14 AWG, Maximum Wire Size 10 AWG, Termination Style Crimp, Tongue Width 0.38 in, Contact Finish Tin, Contact Material Copper, Standards CSA C22.2 No. 65, UL 486A, UL 486B, Barrel Inside Diameter 0.13 in, Barrel Outside Diameter 0.22 in, Barrel Size Standard, Barrel Style Brazed Serrated

Connection Material:Copper
Connection Type:Crimp
Contact Finish:Tin
Contact Material:Copper
Environmentally Friendly:Yes
Features:Brazed Seam
Hole Diameter:0.2 in
Max. Temp.:302 Degrees F
Maximum Copper Conductor Size (AWG):#10
Maximum Metric Conductor Size (mm²):6
Maximum Metric Conductor Size (mmÂ²):6
Maximum Operating Temperature:302 Degrees F
Maximum Voltage:2,000 V
Maximum Wire Size (AWG):#10
Maximum Wire Size:10 AWG
Minimum Copper Conductor Size (AWG):#14
Minimum Metric Conductor Size (mm²):2.5
Minimum Metric Conductor Size (mmÂ²):2.5
Minimum Operating Temperature:302 Degrees F
Minimum Wire Size (AWG):#14
Minimum Wire Size:14 AWG
Overall Lengt
Overall Length (In.):0.81
Overall Length:0.81 in
Ring Width Ranges:0.26 - 0.50 inches
Tongue Thickness (In.):0.04
Tongue Thickness (mm):1
Tongue Thickness:0.04 in
Tongue Width - Wire Connector:0.38 in
Tongue Width (In.):0.38
Tongue Width (mm):9.7
Tongue Width:0.38 in
Width:0.4"
Wire Range:14 to 10 AWG
Wire Strip Length (In.):11933
Wire Strip Length (mm):7.1

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Wire connector type

Ring Terminal

Features

Brazed Seam

Brand

Panduit

Color

Silver

Warranty

Warranty information

1 Year

Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
