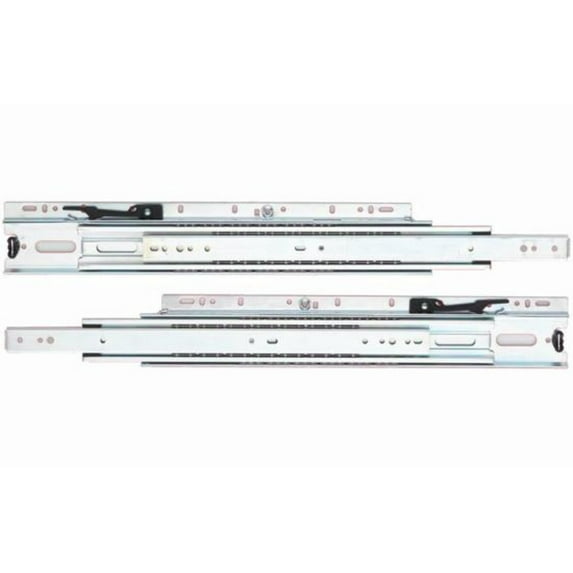

Knape And Vogt 6505B 26 6505 Series 26" Over Travel Side Mount Ball Bearing Drawer Slide -

Features:

• Designed to support up to 125 pounds of weight
• Mounts to the side of the drawer
• Provides maximum access to the drawer with overtravel slides
• Rail disconnect allows easy removal of drawer
• Slides can be installed in either panel (frameless) or face frame cabinets
• Includes a limited lifetime manufacturer warranty

Product Technologies:

• Detent: Also known as anti-rebound, slide detent acts like a brake; ensuring your drawers do not roll back open when closed with too much force.

Specifications:

• BHMA Certification: Grade 1
• Recommended Drawer Length: 26-1/2"
• Slide Length: 26"
• Extension: Type: Over Travel
• Slide Type: Ball Bearing
• Weight Capacity: 125 lbs
• Material: Steel
• Cabinet Type: Face Frame, Panel
• Quantity: 2
• Mounting hardware not included

• 6505B 12: 12 Inch Drawer Slide
• 6505B 14: 14 Inch Drawer Slide
• 6505B 16: 16 Inch Drawer Slide
• 6505B 18: 18 Inch Drawer Slide
• 6505B 20: 20 Inch Drawer Slide
• 6505B 22: 22 Inch Drawer Slide
• 6505B 24: 24 Inch Drawer Slide
• 6505B 26 (This Model): 26 Inch Drawer Slide
• 6505B 28: 28 Inch Drawer Slide
