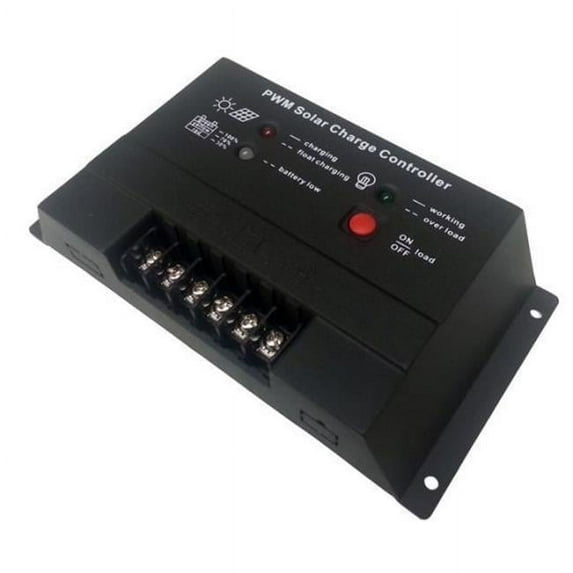

Tycon Systems TP-SC24-20 Solar Charge Controller - 24V- 20 Amp

Tycon Power Systems solar controllers are 3 stage PWM type battery charging controllers controlled by an industrial CPU. The controllers are auto ranging to accommodate 12V and 24V battery voltage systems. They have full electronic protections for short circuit, reverse current, overvoltage, overcharge and over discharge. The built-in over discharge protection and low self consumption ensures the battery is not over discharged, which greatly increases the life of the batteries. They have three multifunction LED indicators to give a quick visual status of the load status, if battery is charging or fully charged, as well as any fault condition. There is a convenient On/Off button to disconnect load power. Connections are via 6 screw terminals for wire size up to 10AWG. The controllers are internally fused with a standard replaceable fuse. There are four screw holes(4 mm.) for mounting.

• 3 stage pwm with automatic over discharge protection for extended battery life
• Low self consumption
• Autoranging 12v or 24v

• Rated Voltage - 12/24 (Auto Detect)
• Rated Current (Solar and Load) - 20A
• Absorption Voltage - 14.4 / 28.8 +/-0.2V
• Float Voltage - 13.8 / 27.6 +/-0.2V
• Overvoltage Protection - 15.5 / 31V
• Over Discharge Voltage - OFF: 10.7 / 21.4 +/- 0.2V, ON: 12.6 / 25.2 +/-0.2V
• Self Consumption - < 15mA
• Voltage Drop (Battery to Load) - < 0.3V
• Max Wire Size - 10 AWG
• Operating Temp - 30°C to 60°C
