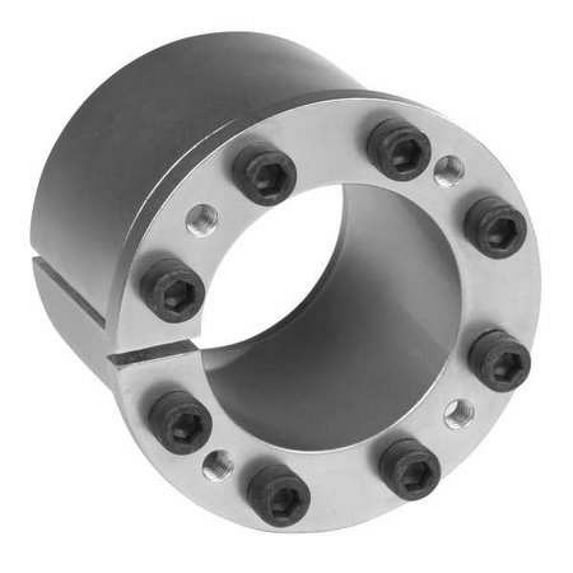

CLIMAX METAL PRODUCTS C192E-087 Keyless Bushing,Dia. 0.875 In.,5 Bolt

Keyless Bushing, Keyless Bushing Type Multi-Screw Locking Assembly, Keyless Bushing Series C192, For Shaft Dia. - Bushings 7/8 in, Outside Dia. 1.75 in, Overall Length 1.346 in, Material - Bushings Steel, Transmissible Torque 2,992 ft-lb, Shaft Dia. Tolerance +/-0.003, Outside Dia. Tolerance +/-0.003, Transmissible Thrust (Lbs.) 6,839, Hub Contact Pressure (PSI) 9,489, Locking Bolt Quantity 5, Bolt Size M6 x 20, Withstand Temp. (Deg. F) Up to 400 Degrees F, Finish Zinc Plated

Features

• Item: Keyless Bushing
• Keyless Bushing Type: Multi-Screw Locking Assembly
• Keyless Bushing Series: C192
• For Shaft Dia. - Bushings: 7/8 in
• Outside Dia. (In.): 1.75
• Overall Length: 1.346 in
• Material - Bushings: Steel
• Transmissible Torque: 2,992 ft-lb
• Transmissible Thrust (Lbs.): 6,839
• Shaft Dia. (In.): 0.875
• Locking Bolt Quantity: 5
• Hub Contact Pressure (PSI): 9,489
• Material: Steel
• Outside Dia.: 1.75 in
• Overall Length (In.): 1.346
• Outside Dia. Tolerance: +/-0.003
• Bolt Size: M6 x 20
• Shaft Dia. Tolerance: +/-0.003
• Type: C192 Series
• Transmissible Torque (Ft.-Lbs.): 2992
• Finish: zinc plated
• Withstand Temp. (Deg. F): Up to 400 Degrees F
