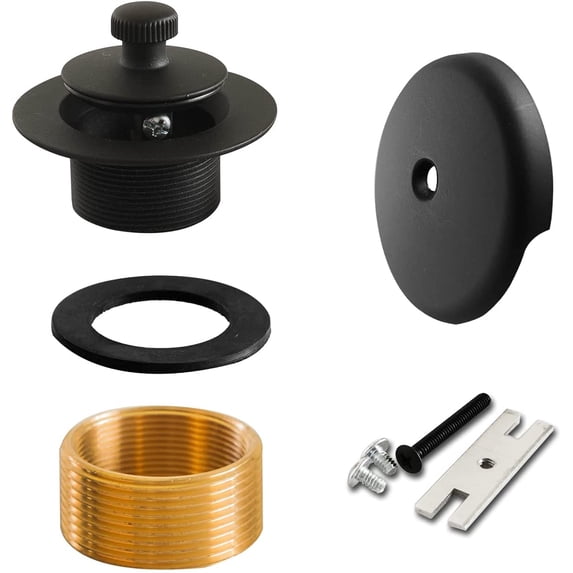

SENTO Bronze Lift and Turn Bathtub Drain Assembly Stopper Kit

SENTO is an American company that has spent over twenty years specializing in custom bathroom wares to fit your own individual needs while providing classy, durable products that don’t sacrifice style for longevity.
Whether you need shower sets or something else, SENTO can help you build the bathroom you deserve, with products that won’t wear down easily over time and need to be replaced.
Life has enough difficult decisions. Choosing SENTO for your bathroom ware needs is an easy one.
Let SENTO help build your best bathroom today. After all, a better bathroom is a better home. Better home, better life.

Classic & elegant design light up your bathroom practical decoration

• The universal bathtub spout brings the most efficient method to your life - Modern looking and easy installation.
• It has a metal construction that will endure the rigors of everyday use.

EASY TO INSTALL

INSTRUCTIONS:

1. Remove old screws and overflow plate from the bathtub.

2. Carefully detach plate from linkage (A) by removing cotter pin (B). Apply to Trip Lever.

3. Attach linkage to new overflow plate (C). Apply to Trip Lever. Align screw holes (S) on your new overflow plate and thread screws into place.

4. Remove the old stopper (D). There are several types of drain stopper, all of which can be removed very easily, with the stopper in the ""open"" position by turning the stopper counter-clockwise until the stopper unthreads from the old one.

5. Remove worn drain body by inserting plier handles (F) or similar tool into drain, engaging cross members, and then turning counterclockwise to the unthread drain body from the bathtub. Remove the worn drain gasket on the tub (G) if needed.

6. For easy installation, remove the stopper from the new drain first and then roll a piece of plumber’s putty in your hands that are about the same thickness as a pencil. Wrap this underneath the lip of the new drain body (E), making sure that it reaches all the way around.

7. Check the size of your bathtub drain hole.

- For 1-5/8” hole, remove bushing/adapter (H) from new drain body (E);

- For 1-1/2” hole, keep the bushing/adapter (H) on the new drain body, and first place the new gasket (G), if needed, and then the drain body (E)

in the drain hole. Slowly turn the drain clockwise to catch the first few threads of the drain elbow underneath the tub.

***Warning - Careful not to cross thread.***

8. Once the drain body is carefully threaded into the first few threads of the drain elbow, use the plier handles (F) or similar tool to turn clockwise to tighten. The connection needs to be tight to prevent leaks but tightening it too many risks cracking the tub or breaking the seal.

***Warning - Do this carefully, so as not to squeeze the gasket underneath the tub out of place.***

9. Remove any excess plumber's putty, and install the tub stopper, if needed. Then plug the tub and run a bit of water, checking for any leaks.
