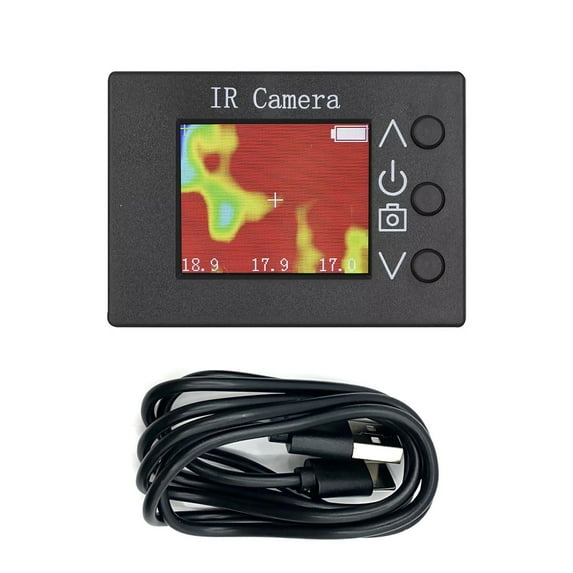

FR4 Epoxy Thermal Imager with 1.8" LCD Screen for Building Temperature Control and Inspection

Features:
This product combines the functions of surface temperature measurement and real-time thermal imaging, suitable for contactless temperature measurement, human temperature detection function, ambient temperature detection, industry parts temperature detection function.
With integrated design, compact, lightweight, and portable, it is easy to carry and does not take up too much space, it can operate smoothly without external devices.
Its uses FR4 epoxy outershell material for better protecting internal component and has a long service lifespan.
Adopts a high sensitive infrared sensor, 32*24 pixel far infrared array, clearly imaging.
1.8 inch LCD color screen, with 240*320 resolution, clearly displays and tracks the maximum temperature, the minimum temperature, and the center point temperature.
Real-time measurement, with -40℃ to +300℃ measurement ranges, and an 8Hz dynamic refresh rate.
This thermal imager has a photo-taking function, for which need to maintain at least 15S time.
Built-in a lithium-ion battery, USB Type-C cable charging design, with long battery lifespan.
The thermal imager boasts a wide range of applications, including high-precision non-contact temperature measurement and body temperature detection, intelligent ambient temperature monitoring and control in buildings, automotive repairs and maintenance inspections for temperature detection of car parts, temperature monitoring and control in microwave ovens and conventional ovens, temperature tracking of industrial components, utilization as visual temperature sensors, leak detection and maintenance of floor heating equipment, as well as thermal inspection of circuit boards and components.

Specifications:
Infrared sensor: MLX90640ESF_BAB
Display: 1.8inch LCD display
Screen resolution: 240*320 pixels
Temperature measurement range: -40℃ to 300℃
Measurement accuracy: ±2℃
Refresh rate: 8Hz
Field of view: 55° horizontal * 35° vertical
Working hours: ≥4 hours (200mAh rechargeable battery)
Charging interface: Type-C 5V/1A

Package Included:
1x Thermal Imager
1x USB Cable
