Hero image 0 of Geekpure 10-Inch Whole House Water Filter Housing 4.5"x10"1-Inch Outlet/Inlet with Wrench and Bracket, 0 of 8
Geekpure 10-Inch Whole House Water Filter Housing 4.5"x10"1-Inch Outlet/Inlet with Wrench and Bracket
Key item features
- Complete Set: 10-inch whole house water filter housing with 1" NPT inlet/outlet, plastic wrench, and metal bracket included. Filter cartridges sold separately.
- Standard Size: Fits all standard 4.5" diameter by 10" height whole house cartridges.
- High Flow: Equipped with a pressure release button for high-pressure applications.
- Whole House Use: Installed at the main water supply to provide pure water for the entire home.
- Durable Construction: ISO9001:2008 certified manufacturer and member of the Water Quality Association (WQA).
- Specifications: Maximum pressure of 90 psi, temperature range of 40-110F, and a shelf life of 5 years.
- Dimensions: Item measures 7 x 7 x 14 inches and weighs 6 pounds.
- Installation Tips: Lubricate the o-ring with silicon grease, use the provided wrench, and protect the housing from freezing.
Generated by AI
Specs
- Rec. useResidential
- Assembled product height14 in
- Housing materialPlastic
- Color categoryBlue
- ManufacturerGeekpure
- Model124-10-1
Reviews summary
Pros
- : Offers good quality at lower cost.
- : Made with high-quality materials.
- : Made with materials that prevent leakage issues.
Neutral
- : Can be leak-free, but may leak at certain connections.
Generated by AI
Current price is USD$39.99
Price when purchased online
Out of stock
How do you want your item?
Out of stock
About this item
Product details
Specification:
Maximum Pressure: 90 psi (6.2 bar) ,Temperature:40-110°F/5-45°C , Shelf life: 5 Years.
Item Dimensions LxWxH: 7 x 7 x 14 inches
Item Weight: 6 Pounds
Key Product Features:
Complete

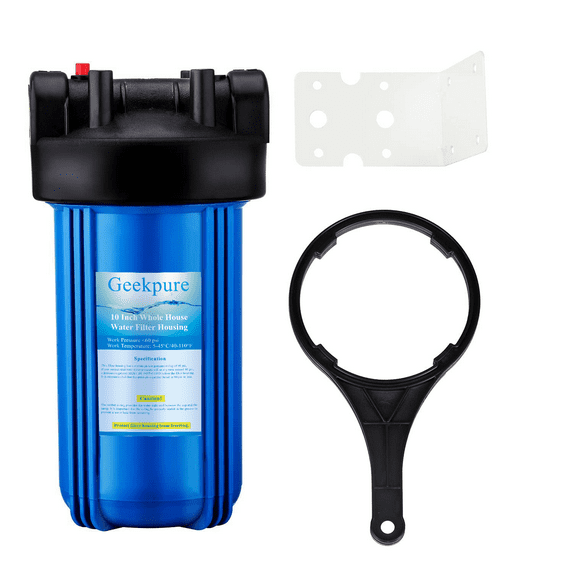

Complete set 10 inch blue housing,with plastic wrench,screw and metal bracket.Housing only, filter cartridges are sold separately .
Pack of 1 set.
Air release valve
Equip with pressure release button for high pressure .
How it works?
Please refer above photo.
More valuable information:
1. What is dimension of the housing?
ANSWER: It is standard sized housing for 4.5"OD x 10" height filters .
2. What is in the box?
ANSWER: 1 x 10 inch blue housing with pressure release , 1 x plastic wrench ,1 x metal bracket and 1 bag screw.
3.What is filters options?
ANSWER:1).PP spun filter, Remove sand, dirt, sediment. life time:6 months.
2).Carbon block filter, Further remove chlorine, taste & odors, very fine particulates. life time:6 months.
PS.The Life Time of the Filter Cartridge Depends on Usage Amount and Feed Water Quality. We list more options for matched filter cartridges and other size housing:
Note:
1. Please lubricate the o-ring with silicon grease and use wrench provided to prevent leakage. you may search "whole house water filter " on YouTube, there is some video about this housing, it is very helpful if it is the first time to install it.
2. Protect filter housing from freezing.
3. This filter housing has a maximum operating pressure rating of 90 psi, if you suspect that your water pressure will at any time exceed 80 psi, a pressure regulator MUST BE INSTALLED before the filter housing. this action will guard against the water pressure exceeding the maximum pressure rating.it is recommended that the pressure regulator be set at 60 psi or less.
4. The rubber o-ring provides the water tight seal between the cap and the sump. it is important that the o-ring be properly SEATED IN THE GROOVE of a water leak could occur.
- 10 Inch Housing-Complete one set 10 inch whole house water filter housing,1"NPT inlet/outlet,with pressure release button for high flow,with plastic wrench and bracket, filter cartridges are sold separately
- STANDARD-Fits all standard sized 4-1/2 inch diameter industry 10 inch whole house cartridges
- It is Installed at the main water supply and produce pure water for your entire home. Enjoy better water from every tap and every appliance in the whole house
- Pack of 1,Filter housing only, filter cartridges are sold separately
- ISO9001:2008 certificated Manufacturer ,also Member of Water Quality Association (WQA),One year limited warranty
