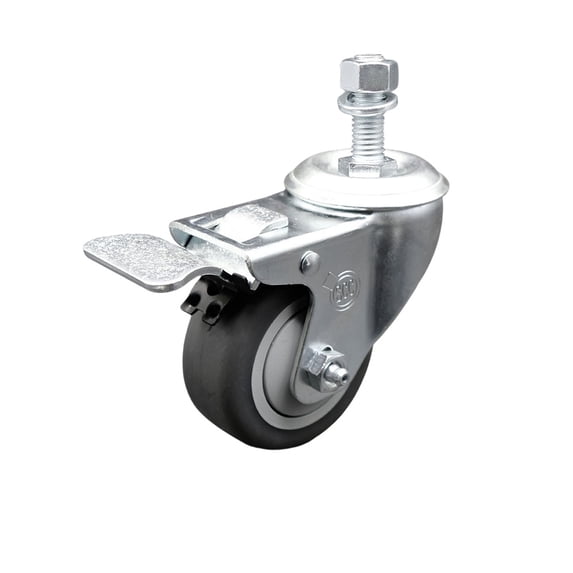

3 Inch Thermoplastic Rubber Swivel ½ Inch Stem Caster with Total Lock Brake SCC
(No ratings yet)
3 Inch Thermoplastic Rubber Swivel ½ Inch Stem Caster with Total Lock Brake SCC3 Inch Thermoplastic Rubber Swivel Inch Stem Caster with Total Lock Brake SCC4 Inch SS Thermoplastic Rubber Inch Threaded Stem Caster with Total Lock Brake3 Inch Thermoplastic Rubber Wheel Swivel Inch Threaded Stem Caster with Brake3 Inch Thermoplastic Rubber Wheel Swivel Inch Threaded Stem Caster SCC
Key item features
- These Service Caster Series #20 Thermoplastic Rubber casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height; 6” wheel: 7-1/8” mounting height.
- Weight Capacity: 3": 210 lbs Capacity/Caster, 3.5": 230 lbs Capacity/Caster, 4": 250 lbs Capacity/Caster, and 5" & 6": 300 lbs Capacity/Caster
- All casters feature a 1/2” diameter (13 TPI x 1-1/2”) threaded stem. Threaded stems can be difficult to measure. Service Caster recommends having existing threads checked on a thread gauge to determine correct thread size before ordering. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button.
- Brake options include a top lock brake (TLB), a total lock brake (TTL), or a posi lock brake (PLB). The top lock brake (TLB) and the posi lock brake (PLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
Specs
- Size3" Wheel
- BrandService Caster
- Weight1.5 lb
- Has castersN
Price when purchased online
Not Available
How do you want your item?
Not available
Similar items you might like
Based on what customers bought
3 Inch Green Polyurethane Wheel Swivel ½ Inch Threaded Stem Caster SCC $23.29
$2329current price $23.293 Inch Green Polyurethane Wheel Swivel ½ Inch Threaded Stem Caster SCC
6 Inch Thermoplastic Rubber Wheel Swivel 7/8 Inch Square Stem Caster SCC $24.97
$2497current price $24.976 Inch Thermoplastic Rubber Wheel Swivel 7/8 Inch Square Stem Caster SCC
5 Inch Yellow Polyurethane Wheel Swivel 3/8 Inch Threaded Stem Caster SCC $25.80
$2580current price $25.805 Inch Yellow Polyurethane Wheel Swivel 3/8 Inch Threaded Stem Caster SCC
Creeper 4 Inch Black Polyurethane Wheel Swivel ½ Inch Threaded Stem Caster SCC $24.43
$2443current price $24.43Creeper 4 Inch Black Polyurethane Wheel Swivel ½ Inch Threaded Stem Caster SCC
4 Inch Orange Polyurethane Wheel Swivel 3/4 Inch Square Stem Caster with Brake $23.51
$2351current price $23.514 Inch Orange Polyurethane Wheel Swivel 3/4 Inch Square Stem Caster with Brake
3 Inch Thermoplastic Rubber Wheel Swivel 7/16 Inch Grip Ring Stem Caster SCC $26.39
$2639current price $26.393 Inch Thermoplastic Rubber Wheel Swivel 7/16 Inch Grip Ring Stem Caster SCC
Creeper 4 Inch Blue Polyurethane Wheel Swivel ½ Inch Threaded Stem Caster SCC $24.43
$2443current price $24.43Creeper 4 Inch Blue Polyurethane Wheel Swivel ½ Inch Threaded Stem Caster SCC
3 Inch Gray Polyurethane Wheel Swivel 7/8 Inch Square Stem Caster with Brake $23.83
$2383current price $23.833 Inch Gray Polyurethane Wheel Swivel 7/8 Inch Square Stem Caster with Brake
5 Inch Green Polyurethane Wheel Swivel ½ Inch Threaded Stem Caster with Brake $27.39
$2739current price $27.395 Inch Green Polyurethane Wheel Swivel ½ Inch Threaded Stem Caster with Brake
3.5 Inch Soft Rubber Wheel Swivel 7/8 Inch Square Stem Caster with Brake SCC $22.14
$2214current price $22.143.5 Inch Soft Rubber Wheel Swivel 7/8 Inch Square Stem Caster with Brake SCC
4 Inch Green Polyurethane Wheel Swivel 7/16 Inch Grip Ring Stem Caster SCC $27.64
$2764current price $27.644 Inch Green Polyurethane Wheel Swivel 7/16 Inch Grip Ring Stem Caster SCC
4 Inch Soft Rubber Wheel Swivel 7/16 Inch Grip Ring Stem Caster Service Caster $26.39
$2639current price $26.394 Inch Soft Rubber Wheel Swivel 7/16 Inch Grip Ring Stem Caster Service Caster
11 out of 5 Stars. 1 reviews4 Inch Thermoplastic Rubber Wheel with ¾ Inch NPT Pipe Thread Stem Swivel Caster $25.57
$2557current price $25.574 Inch Thermoplastic Rubber Wheel with ¾ Inch NPT Pipe Thread Stem Swivel Caster
5 Inch Green Polyurethane Wheel Swivel 3/8 Inch Threaded Stem Caster with Brake $27.39
$2739current price $27.395 Inch Green Polyurethane Wheel Swivel 3/8 Inch Threaded Stem Caster with Brake
Creeper 4 Inch Red Polyurethane Wheel Swivel ½ Inch Threaded Stem Caster SCC $24.43
$2443current price $24.43Creeper 4 Inch Red Polyurethane Wheel Swivel ½ Inch Threaded Stem Caster SCC
4 Inch Soft Rubber Wheel Swivel 7/8 Inch Square Stem Caster Service Caster $20.15
$2015current price $20.154 Inch Soft Rubber Wheel Swivel 7/8 Inch Square Stem Caster Service Caster
3 Inch Hard Rubber Wheel Swivel 7/16 Inch Grip Ring Stem Caster with Brake SCC $26.69
$2669current price $26.693 Inch Hard Rubber Wheel Swivel 7/16 Inch Grip Ring Stem Caster with Brake SCC
3.5 Inch Soft Rubber Wheel Swivel 10mm Threaded Stem Caster with Brake SCC $22.23
3 optionsAvailable in additional 3 options$2223current price $22.233.5 Inch Soft Rubber Wheel Swivel 10mm Threaded Stem Caster with Brake SCC
5 Inch Thermoplastic Rubber Swivel 3/4 Inch Square Stem Caster Total Lock Brake $26.18
$2618current price $26.185 Inch Thermoplastic Rubber Swivel 3/4 Inch Square Stem Caster Total Lock Brake
3 Inch Soft Rubber Wheel Swivel 7/16 Inch Grip Ring Stem Caster Service Caster $24.85
$2485current price $24.853 Inch Soft Rubber Wheel Swivel 7/16 Inch Grip Ring Stem Caster Service Caster
About this item
Product details
Listing is for one (1) Service Caster Series #20 swivel caster with a 3" diameter by 1-1/4" wide thermoplastic rubber wheel and a 1/2" threaded stem with total lock brake capable of supporting 210 lbs./caster.When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 20 thermoplastic rubber casters. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition, and the soft, quiet and non-marking thermoplastic rubber wheels perform especially well on hard surfaces such as concrete, tile, and wood. They are resistant to water, oil, and grease and will keep you safely moving forward. Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.
- These Service Caster Series #20 Thermoplastic Rubber casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height; 6” wheel: 7-1/8” mounting height.
- Weight Capacity: 3": 210 lbs Capacity/Caster, 3.5": 230 lbs Capacity/Caster, 4": 250 lbs Capacity/Caster, and 5" & 6": 300 lbs Capacity/Caster
- All casters feature a 1/2” diameter (13 TPI x 1-1/2”) threaded stem. Threaded stems can be difficult to measure. Service Caster recommends having existing threads checked on a thread gauge to determine correct thread size before ordering. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button.
- Brake options include a top lock brake (TLB), a total lock brake (TTL), or a posi lock brake (PLB). The top lock brake (TLB) and the posi lock brake (PLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.
Specifications
Size
3" Wheel
Material
Thermoplastic Rubber Tread on Polyolefin Core
Brand
Service Caster
Color
Swivel - Total Lock Brake - Gray
