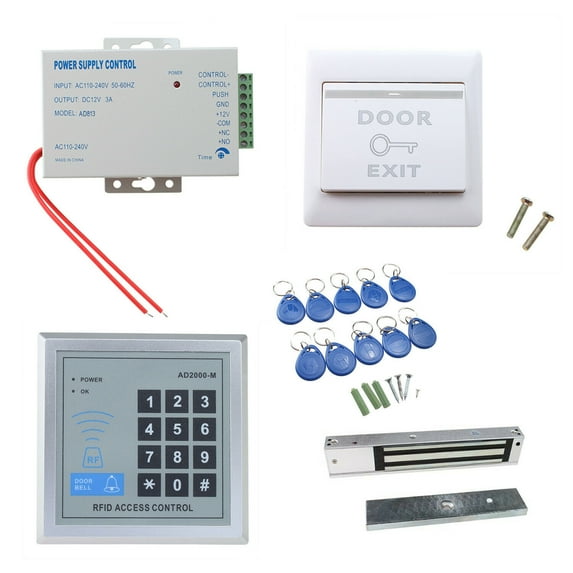

AGPtek RFID Door Access Control System Kit with Electric Magnetic Lock

(No ratings yet)

Key item features

Electric Magnetic lock Specifications:

Lock Size: 250Lx46.8Wx25.2H(mm)

Armature plate: 179Lx38Wx11H(mm)

Holding Force: 280kg(620lbs)

Mode: NC (locked whilst power supply is operating), fail safe mode

Voltage: DC12V

Current Draw: 0.15A~0.45A

Safety function: Built-in voltage spike suppressor

Opening Mode: 90 degree swinging door

Suitable For: Wooden Door, Glass Door, Metal Door, Fire Proof Door, etc.

Net Weight: 1.784kg
Power Supply Specifications:

1.Small and exquisite, easy installation.

2.Advantages: Voltage range input regularly from 100V-240V, compatible with world voltage, light weight, convenient transportation, small disturbance, output voltage fluctuation is only ±1% from no-load to full load, lock temperature rising reduces greatly (compared with power frequency supply).

3.AC input: Standard AC100V-240V 50-60HZ 36W

4.DC output: Stabilizater DC12V/ 3 A

5.It controls electric lock directly. It can set time lapse control circuit and unlocking time can be in 0-15 seconds(it is arbitrarily adjustable).

6.Automatic protection function: It will protect automatical and no voltage output when short circuit happening in the circumferential circuit.

7.Outside iron shell dimension:120mm*95 mm*38mm

8.Set NC / NO outputs, can control various types of electric locks

9.Note: Opening time must set to 0 second when connecting with electric controlled lock. Otherwise electric bolt lock would be Burned Down.
Control System keypad Specifications:

Power Supply:DC：voltage 12V±10% Current < 0.1A

Dimension:116mm×116mm×20mm

Ambient temperature :0℃—60℃

Relative humidity :20%—80%

Memory capacity:500 user cards or 50 door opening passwords

Working distance:5－15CM

Card Type: EM or EM compatible cards
Push Release Button Exit Switch Specifications:

Dimensions: 86Lx86Wx20H(mm)

Current Rating: 3A@36VDC Max

Suitable for Door: Hollow Door

Operating temp: 10～+55℃(14-131F)

Operating Humidity: 0-95% (non- condensing)

Panel Material: Fireproof Material
Package Include:

1x Magnetic Door Lock main body 280kg Strong Force(NC mode)

1x Armature faceplate

1 x Access Control Power Supply

1x Push Release Button

1x RFID Proximity Door Entry keypad

10x RFID Key Fobs

1x package Mounting hardware kit (for Magnetic lock)

1xpackage Mounting hardware (for keypad)

1x package mounting accessories. (for button)

1 x Manual(for magnetic lock)

1 x Manual(for power supply)

1 x Manual(access control keypad)

Specs

Hardware lock type
Magnetic Lock
Features
Easy Installation, Adjustable
Brand
AGPtek
Material
Metal
Compatibility
Wooden Door, Glass Door, Metal Door, Fire Proof Door
Has written warranty
No

Current price is $58.99

Price when purchased online

Free shipping
Free 30-day returns

Handyman Service

Doorbell & Deadbolt Install - $88.00

How do you want your item?

Ships to

Arrives between Jun 12 - Jun 16

Sold and shipped by Nicewealth development Limited

4.346153846153846 stars out of 5, based on 52 seller reviews(4.3)

Report an issue with this seller

Free 30-day returns

About this item

Product details

This RFID Proximity access controller using proximity system is one of the modern access control systems. The state-of-the-art CPU and integrated circuit techniques are applied to keep all the data from loss due to power failure. It is powerful and can open the door using proximity cards, passwords, or the hybrid. The access controller can provide users with more convenience by connecting to terminals, including the button for opening the door, doorbell, and electric lock that is normally open or closed. This product offers a method for controlling access safely and automatically, qualifying it as an ideal equipment for businesses, offices, factories, and communities.

Electric Magnetic lock Specifications:

Lock Size: 250Lx46.8Wx25.2H(mm)

Armature plate: 179Lx38Wx11H(mm)

Holding Force: 280kg(620lbs)

Mode: NC (locked whilst power supply is operating), fail safe mode

Voltage: DC12V

Current Draw: 0.15A~0.45A

Safety function: Built-in voltage spike suppressor

Opening Mode: 90 degree swinging door

Suitable For: Wooden Door, Glass Door, Metal Door, Fire Proof Door, etc.

Net Weight: 1.784kg
Power Supply Specifications:

1.Small and exquisite, easy installation.

2.Advantages: Voltage range input regularly from 100V-240V, compatible with world voltage, light weight, convenient transportation, small disturbance, output voltage fluctuation is only ±1% from no-load to full load, lock temperature rising reduces greatly (compared with power frequency supply).

3.AC input: Standard AC100V-240V 50-60HZ 36W

4.DC output: Stabilizater DC12V/ 3 A

5.It controls electric lock directly. It can set time lapse control circuit and unlocking time can be in 0-15 seconds(it is arbitrarily adjustable).

6.Automatic protection function: It will protect automatical and no voltage output when short circuit happening in the circumferential circuit.

7.Outside iron shell dimension:120mm*95 mm*38mm

8.Set NC / NO outputs, can control various types of electric locks

9.Note: Opening time must set to 0 second when connecting with electric controlled lock. Otherwise electric bolt lock would be Burned Down.
Control System keypad Specifications:

Power Supply:DC：voltage 12V±10% Current < 0.1A

Dimension:116mm×116mm×20mm

Ambient temperature :0℃—60℃

Relative humidity :20%—80%

Memory capacity:500 user cards or 50 door opening passwords

Working distance:5－15CM

Card Type: EM or EM compatible cards
Push Release Button Exit Switch Specifications:

Dimensions: 86Lx86Wx20H(mm)

Current Rating: 3A@36VDC Max

Suitable for Door: Hollow Door

Operating temp: 10～+55℃(14-131F)

Operating Humidity: 0-95% (non- condensing)

Panel Material: Fireproof Material
Package Include:

1x Magnetic Door Lock main body 280kg Strong Force(NC mode)

1x Armature faceplate

1 x Access Control Power Supply

1x Push Release Button

1x RFID Proximity Door Entry keypad

10x RFID Key Fobs

1x package Mounting hardware kit (for Magnetic lock)

1xpackage Mounting hardware (for keypad)

1x package mounting accessories. (for button)

1 x Manual(for magnetic lock)

1 x Manual(for power supply)

1 x Manual(access control keypad)
