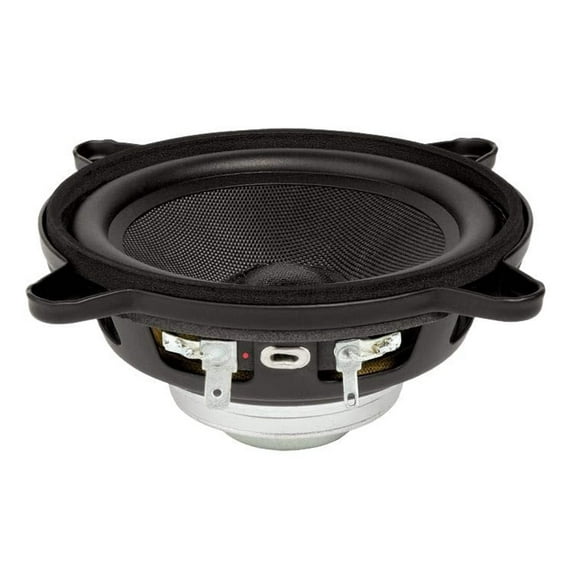

Faital Pro 4FE32-8 4 30w 8 Ohm 91db Midbass

(No ratings yet)

Key item features

NOMINAL SPECIFICATIONS Nominal Diameter : 100 mm 4 in Overall Diameter : 129.85/100.5 mm 5.11/3.96 in Bolt Circle Diameter : 4.54 in Baffle Cutout Diameter : 3.60 in Depth : 1.96 in Flange & Gasket Thickness : 0.28 in Net Weight : 0.6 lb Shipping Box Single Carton Box - 8 units : 8.9 x 8.9 x 5.9 in Shipping Box Single Carton Box : 1.9 x 1.9 x .73 in Shipping Weight 8 units : 6.2 lb Shipping Weight per unit : 0.78 lb
TECHNICAL PARAMETERS Nominal Impedance : 8 Ohm Minimum Impedance : 7 Ohm AES Power Handling 1 : 30 W Maximum Power Handling 2 : 60 W Sensitivity 1W/1m : 91 dB Frequency Range : 9020000 Hz Voice Coil Diameter : 19 mm 0.75 in Winding Material : Al Former Material : Kapton
TECHNICAL PARAMETERS Winding Depth : 6.8 mm 0.27 in Magnetic Gap Depth : 4 mm 0.16 in Flux Density : 1.4 T Magnet : Neodymium Ring Basket Material : Steel Demodulation : No Cone Surround 3 : Half Roll NET Air Volume filled by Loudspeaker : 0.075 dm3 0.003 ft3 Spider Profile : 1x constant height waves
THIELE AND SMALL PARAMETERS Fs : 100 Hz Re : 6.5 Ohm Qes : 0.7 Qms : 4.9 Qts : 0.61 Vas : 2.3 dm3 0.08 ft3 Sd : 51.9 cm2 8.04 in2 Xmax 4 : 2.73 mm Xdamage 5 : 6.8 mm Mms : 4.2 g Bl : 4.8 N/A Le : 0.18 mH Mmd : 3.8 g Cms : 0.60 mm/N Rms : 0.5 kg/s Eta Zero : 0.30 % EBP : 143 Hz
Brand : FAITAL PRO Model Number : 4FE32-8 4FE32 UPC : 810130951314 PART NUMBER P/N Faston Terminals - 8 Ohm Version : 1004084 NOTES Packaged and sold in multiples of 8 units 1 2 Hours Test According to AES 2-1984 Rev. 2003 2 Maximum power is defined as 3dB greater than nominal power 3 NBR Rubber 4 Xmax= [winding depth - magnetic gap depth/2] + magnetic gap depth/3 5 Maximum excursion before permanent damage

Specs

Size
4"
Car speaker size class
4"
Rms power rating
30 W
Peak audio power handling
60 W
Loudspeaker sensitivity
91 dB
Freq range
90/20000 Hz

Current price is $41.47

Price when purchased online

Out of stock

How do you want your item?

Out of stock

Report an issue with this seller

About this item

Product details

FaitalPRO's 4FE32 4" neodymium professional woofer has exceptionally flat response from 90 Hz to 6, 500 Hz, both on and off-axis, and features a 91 dB sensitivity due to a powerful neodymium ring motor. Great for use in compact professional line array speakers, the 4FE32 is also right at home in home audio, personal audio, and car audio applications. It's also ideal for fixed installation applications as a mid bass, midrange, or full-range speaker. Made in Italy.

Features

Flat response from 90 to 6, 500 Hz
High 91 dB sensitivity
Great for use as a midrange, mid bass, or full-range speaker
Made in Italy

Specifications

Nominal Impedance: 8 Ohm
Minimum Impedance: 7 Ohm
AES Power Handling (1): 30 W
Maximum Power Handling (2): 60 W
Sensitivity (1W/1m): 91 dB
Frequency Range: 90/20000 Hz
Voice Coil Diameter: 19 mm (0.75 in)
Winding Material: Al
Former Material: Kapton
Winding Depth: 6.8 mm (0.27 in)
Magnetic Gap Depth: 4 mm (0.16 in)
Flux Density: 1.4 T
Magnet: Neodymium Ring
Basket Material: Steel
Cone Surround: Half Roll
NET Air Volume filled by Loudspeaker: 0.075 dm-3 (0.003 ft-3)
Weight: 5 lbs

- SKU: TNSR10943

NOMINAL SPECIFICATIONS Nominal Diameter : 100 mm 4 in Overall Diameter : 129.85/100.5 mm 5.11/3.96 in Bolt Circle Diameter : 4.54 in Baffle Cutout Diameter : 3.60 in Depth : 1.96 in Flange & Gasket Thickness : 0.28 in Net Weight : 0.6 lb Shipping Box Single Carton Box - 8 units : 8.9 x 8.9 x 5.9 in Shipping Box Single Carton Box : 1.9 x 1.9 x .73 in Shipping Weight 8 units : 6.2 lb Shipping Weight per unit : 0.78 lb
TECHNICAL PARAMETERS Nominal Impedance : 8 Ohm Minimum Impedance : 7 Ohm AES Power Handling 1 : 30 W Maximum Power Handling 2 : 60 W Sensitivity 1W/1m : 91 dB Frequency Range : 9020000 Hz Voice Coil Diameter : 19 mm 0.75 in Winding Material : Al Former Material : Kapton
TECHNICAL PARAMETERS Winding Depth : 6.8 mm 0.27 in Magnetic Gap Depth : 4 mm 0.16 in Flux Density : 1.4 T Magnet : Neodymium Ring Basket Material : Steel Demodulation : No Cone Surround 3 : Half Roll NET Air Volume filled by Loudspeaker : 0.075 dm3 0.003 ft3 Spider Profile : 1x constant height waves
THIELE AND SMALL PARAMETERS Fs : 100 Hz Re : 6.5 Ohm Qes : 0.7 Qms : 4.9 Qts : 0.61 Vas : 2.3 dm3 0.08 ft3 Sd : 51.9 cm2 8.04 in2 Xmax 4 : 2.73 mm Xdamage 5 : 6.8 mm Mms : 4.2 g Bl : 4.8 N/A Le : 0.18 mH Mmd : 3.8 g Cms : 0.60 mm/N Rms : 0.5 kg/s Eta Zero : 0.30 % EBP : 143 Hz
Brand : FAITAL PRO Model Number : 4FE32-8 4FE32 UPC : 810130951314 PART NUMBER P/N Faston Terminals - 8 Ohm Version : 1004084 NOTES Packaged and sold in multiples of 8 units 1 2 Hours Test According to AES 2-1984 Rev. 2003 2 Maximum power is defined as 3dB greater than nominal power 3 NBR Rubber 4 Xmax= [winding depth - magnetic gap depth/2] + magnetic gap depth/3 5 Maximum excursion before permanent damage
