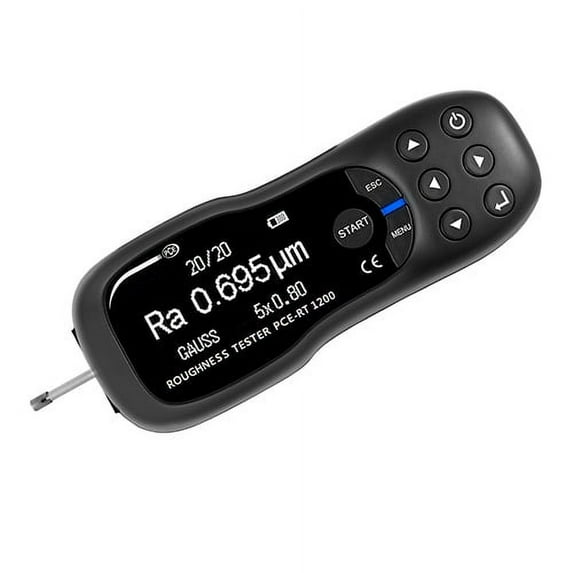

Profilometer - Roughness Tester PCE-RT 1200
(No ratings yet)
Key item features
- Measurement parameters: Ra, Rz, Rq, Rt
- Measuring ranges:
Ra, Rq: 0.005 ... 16.00 µm / 0.197 ... 629.921 µin
Rz, Rt: 0.002 ... 200.0 µm / 0.079 ... 7874.016 µin
- Radius probe tip: 5 µm/ 196.850 µin
- Material probe tip: Diamond, 90° angled
- Max. recommended force for static measurement: 4 mN (0.4 gf)
- Radius longitudinal guide bar: 45 mm / 1.77"
- Standards: ANSIB46.1/ASMEB46.1 (DIN EN ISO 4287)
- Maximum driving distance: 15 mm / 0.59"
- Measuring principle: Inductive
- Cut-off wavelength: 0.25 mm / 0.8 mm / 2.5 mm / 0.009" / 0.03" / 0.098"
- Testing speed:
0.135 mm/s at cut-off wavelength: 0.25 mm
0.5 mm/s at cut-off wavelength: 0.8 mm
1 mm/s at cut-off wavelength: 2.5 mm
Reversing speed: 1 mm/s
- Measuring accuracy: < ± 10%
- Repeatability: < 6%
- Very compact
- Easy to handle
- A large OLED display
- 4 measurable parameters of roughness
- The probe of the roughness meter consists of a high-quality diamond
- The display of the roughness meter outputs the measured values in tabular form
- The measured values can also be output by the roughness meter as a graph
- A micro-USB interface for online data transmission to a PC (for example useful for serial measurement or laboratory measurement)
- An internal rechargeable battery (3000 measurements with one battery charge (Li-ion))
Specs
- Measurement accuracy< 10%
- BrandPCE Instruments
- Rec. useLaboratory
- DisplayLCD
- Height1.7 in
- Weight370 g
More seller options (1)
Starting from $2,400.00
Similar items you might like
Based on what customers bought
3-Axis Vibration Meter / Vibration Tester PCE-VM 10 $1,155.00
$1,15500current price $1,155.003-Axis Vibration Meter / Vibration Tester PCE-VM 10
Vibration Analyzer PCE-VDL 24I 3-Axis $465.00
$46500current price $465.00Vibration Analyzer PCE-VDL 24I 3-Axis
MP-3000E Intelligent Vibration Testing Machine Vertical Vibration Test Bench Frequency 0-400Hz $1,699.90
$1,69990current price $1,699.90MP-3000E Intelligent Vibration Testing Machine Vertical Vibration Test Bench Frequency 0-400Hz
MP-3000E Professional Vertical Vibration Test Bench 0-400Hz Adjustable Frequency Horizontal Vibration Tester $1,699.00
$1,69900current price $1,699.00MP-3000E Professional Vertical Vibration Test Bench 0-400Hz Adjustable Frequency Horizontal Vibration Tester
Digital Vibration Meter SW-63A High Precision Vibrometer 0.1-199.9m/S² Handheld Vibration Analyzer Vibrator Tester ,Precise Measurement $168.85
$16885current price $168.85Digital Vibration Meter SW-63A High Precision Vibrometer 0.1-199.9m/S² Handheld Vibration Analyzer Vibrator Tester ,Precise Measurement
ST-140D Digital Vibration Tester ST140D Vibration Meter Vibrometer Ran 0.5~199.9 m/S2 with Data logr ,User Friendly $1,889.54
$1,88954current price $1,889.54ST-140D Digital Vibration Tester ST140D Vibration Meter Vibrometer Ran 0.5~199.9 m/S2 with Data logr ,User Friendly
Vibration Meter PCE-VT 3700 $1,200.00
$1,20000current price $1,200.00Vibration Meter PCE-VT 3700
Digital Vibration Meter Monitoring of Vibration Machinery and Equipment $199.00
$19900current price $199.00Digital Vibration Meter Monitoring of Vibration Machinery and Equipment
HT-1201 Portable Vibration Meter Analyzer 0.1~199.9m Ht-1201 Digital Split Type Vibrometer $156.76
$15676current price $156.76HT-1201 Portable Vibration Meter Analyzer 0.1~199.9m Ht-1201 Digital Split Type Vibrometer
Pocket Vibrometer, Pen Vibration Meter Tester Gauge Analyzer Measure Precision Sensitivity Accelerometers AS63D ,Versatile Frequency $134.49
$13449current price $134.49Pocket Vibrometer, Pen Vibration Meter Tester Gauge Analyzer Measure Precision Sensitivity Accelerometers AS63D ,Versatile Frequency
HT-1201 Portable Vibration Meter Analyzer 0.1~199.9m Ht-1201 Digital Split Type Vibrometer ,Versatile Frequency $149.63
$14963current price $149.63HT-1201 Portable Vibration Meter Analyzer 0.1~199.9m Ht-1201 Digital Split Type Vibrometer ,Versatile Frequency
TM63A LCD Digital Sensor Vibration Meter Measure Gau Tester Vibrometer Analyzer ,Versatile Frequency $213.02
$21302current price $213.02TM63A LCD Digital Sensor Vibration Meter Measure Gau Tester Vibrometer Analyzer ,Versatile Frequency
Vibration Analyzer Digital Vibration Meter Device Probe Analizador De Vibraciones Handheld GM63A Vibrator Tester ,Versatile Frequency $178.70
$17870current price $178.70Vibration Analyzer Digital Vibration Meter Device Probe Analizador De Vibraciones Handheld GM63A Vibrator Tester ,Versatile Frequency
LCD Digital Vibration Analyzer Portable AC Output Vibration Meter Backlight Vibrometer Tester 0.1~199.9m/s2 ,Versatile Frequency $173.10
$17310current price $173.10LCD Digital Vibration Analyzer Portable AC Output Vibration Meter Backlight Vibrometer Tester 0.1~199.9m/s2 ,Versatile Frequency
Portable Handheld Vibration Meter Vibrometer Digital Vibration Sensor Meter Tester Analyzer Acceleration AS63A ,Versatile Frequency $180.47
$18047current price $180.47Portable Handheld Vibration Meter Vibrometer Digital Vibration Sensor Meter Tester Analyzer Acceleration AS63A ,Versatile Frequency
AS63D Pen Type Vibration Meter Pocket Vibrometer Tester Gau Analyzer Measure Precision Sensitivity Accelerometers ,Versatile Frequency $163.17
$16317current price $163.17AS63D Pen Type Vibration Meter Pocket Vibrometer Tester Gau Analyzer Measure Precision Sensitivity Accelerometers ,Versatile Frequency
Digital Vibration Meter Vibrometer Tester Gauge Analyzer Measure Precision Sensitivity Accelerometers SW-65A ,Versatile Frequency $175.98
$17598current price $175.98Digital Vibration Meter Vibrometer Tester Gauge Analyzer Measure Precision Sensitivity Accelerometers SW-65A ,Versatile Frequency
AS63D Pen Type Vibration Meter Pocket Vibrometer Tester Gau Analyzer Measure Precision Sensitivity Accelerometers ,User Friendly $167.60
$16760current price $167.60AS63D Pen Type Vibration Meter Pocket Vibrometer Tester Gau Analyzer Measure Precision Sensitivity Accelerometers ,User Friendly
TM63A LCD Digital Sensor Vibration Meter Measure Gau Tester Vibrometer Analyzer ,Easy to Operate $207.86
$20786current price $207.86TM63A LCD Digital Sensor Vibration Meter Measure Gau Tester Vibrometer Analyzer ,Easy to Operate
Digital vibration Meter Analyzer Velocity High Accuracy Vibrometer with Vibration Measuring Instrument $195.17
$19517current price $195.17Digital vibration Meter Analyzer Velocity High Accuracy Vibrometer with Vibration Measuring Instrument
About this item
Product details
The Profilometer - Roughness Tester PCE-RT 1200 is used to determine surface roughness. The profilometer is a handheld device for mobile use. Due to the power supply via a powerful battery, it can be used directly on site. The profilometer is used in the laboratory, in production and everywhere where the roughness of surfaces is to be determined. The measured values are displayed on the clear and user-friendly OLED display directly on the measuring device. In addition, the profilometer has a storage option for up to 20 measured values, which can later be read out via the micro USB interface. For this purpose, the measurement software can be used, and a USB cable is included in the delivery. The built-in rechargeable battery is also charged via the micro USB interface. The above mentioned measurement software is particularly suitable when measurement series are pending. The data is then transferred to the software and can be evaluated directly on the screen. The profilometer has a protective cap for the sensor, which protects it from external influences and can be easily screwed to the device. A calibration plate with roughness standard is also part of the standard equipment and serves to check the correctness of the measurement results. Rz = average roughness The average roughness Rz is the arithmetic mean of the largest single roughness depths of several adjacent individual measuring sections. Ra = arithmetic centers roughness Ra is the generally recognized and internationally applied roughness parameter. It is the arithmetic mean of the absolute values of the profile deviations within the reference line. The measured value Ra is always smaller than the Rz value determined on the same roughness profile.
- Measurement parameters: Ra, Rz, Rq, Rt
- Measuring ranges:
Ra, Rq: 0.005 ... 16.00 µm / 0.197 ... 629.921 µin
Rz, Rt: 0.002 ... 200.0 µm / 0.079 ... 7874.016 µin
- Radius probe tip: 5 µm/ 196.850 µin
- Material probe tip: Diamond, 90° angled
- Max. recommended force for static measurement: 4 mN (0.4 gf)
- Radius longitudinal guide bar: 45 mm / 1.77"
- Standards: ANSIB46.1/ASMEB46.1 (DIN EN ISO 4287)
- Maximum driving distance: 15 mm / 0.59"
- Measuring principle: Inductive
- Cut-off wavelength: 0.25 mm / 0.8 mm / 2.5 mm / 0.009" / 0.03" / 0.098"
- Testing speed:
0.135 mm/s at cut-off wavelength: 0.25 mm
0.5 mm/s at cut-off wavelength: 0.8 mm
1 mm/s at cut-off wavelength: 2.5 mm
Reversing speed: 1 mm/s
- Measuring accuracy: < ± 10%
- Repeatability: < 6%
- Very compact
- Easy to handle
- A large OLED display
- 4 measurable parameters of roughness
- The probe of the roughness meter consists of a high-quality diamond
- The display of the roughness meter outputs the measured values in tabular form
- The measured values can also be output by the roughness meter as a graph
- A micro-USB interface for online data transmission to a PC (for example useful for serial measurement or laboratory measurement)
- An internal rechargeable battery (3000 measurements with one battery charge (Li-ion))
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it. Â
Specifications
Measurement accuracy
< 10%
Brand
PCE Instruments
Rec. use
Laboratory
Display
LCD
Warranty
Warranty information
We warrant to you that for a period of two (2) years any Product manufactured by us and purchased from us through our Website will conform in all material respects with its description, be of reasonably satisfactory quality, and be reasonably fit for all the purposes for which products of that kind are commonly supplied, and for any Product not manufactured by us, then to the extent a manufacturer’s warranty exists with respect to such Product, we will pass such manufacturer’s warranty on to you.
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
Warranty url
Warnings
Ingestion Hazard
This product contains a battery. Death or serious injury can occur if ingested. A swallowed battery can cause Internal Chemical Burn in as little as 2 hours. Keep new and used batteries OUT OF REACH OF CHILDREN. Seek Immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.
