Hero image 0 of 4 Inch V Groove Semi Steel Caster Set 2 Brakes/Swivel Locks and 2 Rigid SCC, 0 of 2

4 Inch V Groove Semi Steel Caster Set 2 Brakes/Swivel Locks and 2 Rigid SCC

(No ratings yet)

Key item features

These Service Caster Series #35 V Groove Semi Steel casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height.
Weight capacity ranges from 800 lbs on the 4” caster, 1100 lbs on the 5”, 1200 lbs on the 6” and 1250 lbs. on the 8”.
Top plate measures at 4-1/2" x 6-1/4" with a bolt hole pattern of 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" and can either be bolted or welded on.
Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.

Specs

Size
4" Wheel
Caster type
Swivel Casters
Brand
Service Caster
Rec. use
Heavy-Duty
Weight
30.3 lb
Piece count
4

Current price is $209.82

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Ships to

Arrives by Thu, Jun 18

Sold and shipped by Service Caster CorporationPro Seller

4.642857142857143 stars out of 5, based on 14 seller reviews(4.6)

Free 30-day returns

More seller options (2)

Starting from $224.72

About this item

Product details

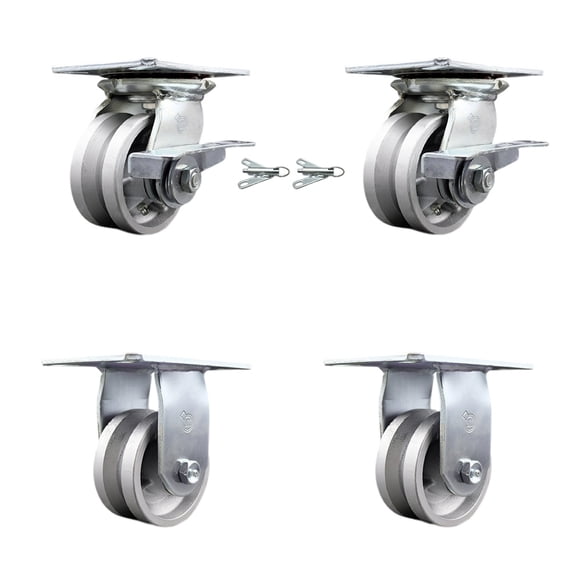

Listing is for a set of four (4) Service Caster Series #35 casters, two (2) swivel casters with side lock brakes & bolt on swivel locks and two (2) rigid casters, with 4" diameter by 2" wide v-groove cast iron wheels and maintenance free precision ball wheel bearings. Capable of supporting a total weight of 3,200 lbs. (800 lbs./caster). When searching for a reliable and durable solution for heavy duty projects, consider Service Caster’s Series 35 semi steel cast iron v-groove wheel casters. The Service Caster Series #35 v-groove wheel is designed to roll on 45 degree angled track, and also has a flat face suitable for non-tracked use. The semi-steel cast iron wheel is built to withstand high capacity, heavy loads up to 1250lbs and in temperatures up to 600°F. An economic choice over steel, semi-steel wheels are abrasion resistant and rugged. Finely crafted with double ball bearing heat treated raceways, these versatile casters are ideal for a wide range of applications specific to high capacity tracked workflows, but also for dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 35, keeping you moving forward.

These Service Caster Series #35 V Groove Semi Steel casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height.
Weight capacity ranges from 800 lbs on the 4” caster, 1100 lbs on the 5”, 1200 lbs on the 6” and 1250 lbs. on the 8”.
Top plate measures at 4-1/2" x 6-1/4" with a bolt hole pattern of 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" and can either be bolted or welded on.
Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Size

4" Wheel

Caster type

Swivel Casters

Material

Semi Steel Cast Iron V-Groove
