Hero image 0 of Anderson Power Products Connector,Wire/Cable 6325G1, 0 of 1

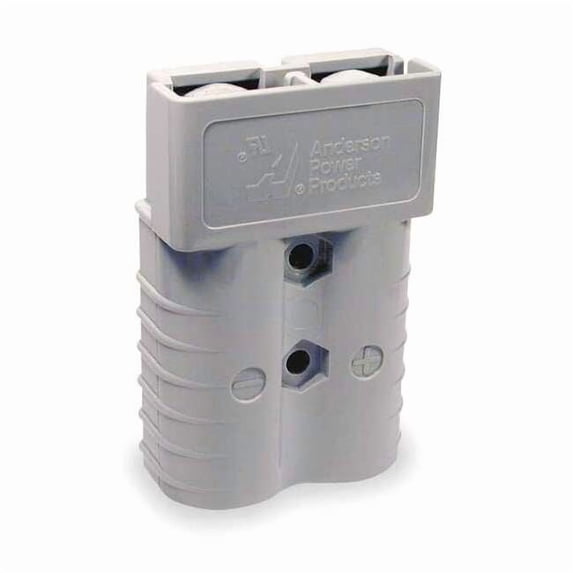

Anderson Power Products Connector,Wire/Cable 6325G1

Name: Anderson Power Products Connector,Wire/Cable 6325G1
Brand: Anderson Power
SKU: 936209261
Price: 19.1 USD
Availability: InStock
Rating: 5 (1 reviews)

|1 rating

Key item features

Amps:175 A
Application:Rotate One Connector 180 Degrees to Connect to the Other
Cable Well Depth (In.):0.75 in
Cable Well Depth:0.75 in
Color:Gray
Connection Type:Two Pole
Connector Type:Two Pole
Contact Material:Silver Plated Electrolytic Copper
Contacts:Silver-plated Electrolytic Copper
Cross-Ref. to Brad Harrison:49110
Cross-Reference to Brad Harrison:49110
Cross-Reference to SMH:SY6325G1
Features:3.13 in L x 2.18 in W x 1.00 in H, Continuous 600V AC/DC Operation
Function:Rotate One Connector 180 Degrees to Connect to the Other
Gauge:1/0 ga
Guage:1/0 ga
Item:Power Connector
Material of Construction:Polycarbonate
Material:Polycarbonate
Mating Cycles:10,000
Max. Wire Dia.:0.437 in
Maximum Current:175 A
Maximum Operating Temperature:221 Degrees F
Maximum Wire Diameter:0.437 in
Minimum Current:175 A
Minimum Operating Temperature:-4 Degrees F
Mounting Style:Inline
Plating:Silver Plated
Product Type:Power Connector
Standards:UL
Type:Two Pole
Wire Size (AWG):1/0

Specs

Wire connector type
Two Pole
Amps
175 Amps
Brand
Anderson Power
Color
Gray
Pieces
1
Has nrtl listing certification
N

Current price is $19.10

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Ships to

Arrives by Mon, May 4

Sold and shipped by Milagru Group

4.552631578947368 stars out of 5, based on 342 seller reviews(4.6)

Report an issue with this seller

Free 30-day returns - in store or online

More seller options (3)

Starting from $19.11

About this item

Product details

Power Connector, Connector Type Two Pole, Maximum Current 175 A, Minimum Current 175 A, Color Gray, Guage 1/0 ga, Maximum Operating Temperature 221 Degrees F, Minimum Operating Temperature -4 Degrees F, Mating Cycles 10,000, Maximum Wire Diameter 0.437 in, Cable Well Depth 0.75 in, Cross-Reference to Brad Harrison 49110, Cross-Reference to SMH SY6325G1, Mounting Style Inline, Plating Silver Plated, Material Polycarbonate

Amps:175 A
Application:Rotate One Connector 180 Degrees to Connect to the Other
Cable Well Depth (In.):0.75 in
Cable Well Depth:0.75 in
Color:Gray
Connection Type:Two Pole
Connector Type:Two Pole
Contact Material:Silver Plated Electrolytic Copper
Contacts:Silver-plated Electrolytic Copper
Cross-Ref. to Brad Harrison:49110
Cross-Reference to Brad Harrison:49110
Cross-Reference to SMH:SY6325G1
Features:3.13 in L x 2.18 in W x 1.00 in H, Continuous 600V AC/DC Operation
Function:Rotate One Connector 180 Degrees to Connect to the Other
Gauge:1/0 ga
Guage:1/0 ga
Item:Power Connector
Material of Construction:Polycarbonate
Material:Polycarbonate
Mating Cycles:10,000
Max. Wire Dia.:0.437 in
Maximum Current:175 A
Maximum Operating Temperature:221 Degrees F
Maximum Wire Diameter:0.437 in
Minimum Current:175 A
Minimum Operating Temperature:-4 Degrees F
Mounting Style:Inline
Plating:Silver Plated
Product Type:Power Connector
Standards:UL
Type:Two Pole
Wire Size (AWG):1/0
