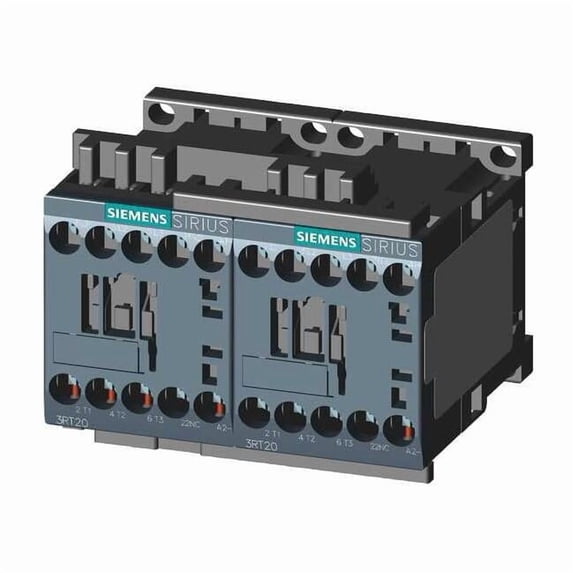

IEC Magnetic Contactor, 2NC, 110V-120V AC, 3 P, Reversing, Screw

The Siemens IEC Magnetic Contactor is a 3-pole, reversing-type control device rated for operation within the specified voltage and current ranges. The device has screw terminals; complies with relevant standards; operates at a coil voltage of 110–120 V AC; includes three main contacts (normally open) and two auxiliary contacts (normally closed); IP20 enclosure rating and vertical mounting orientation (DIN Rail or Surface). Supports auxiliary contact functionality as specified. Key features - Action: Reversing action capability as specified. - Poles/Main contacts: 3 poles; 3 normally open; 2 normally closed - Auxiliary contacts: 2 NC - Coil voltage: 110–120 V AC; Frequency: 50/60 Hz - Maximum voltage: Rated for use up to 690 V AC under normal operating conditions - IP rating: IP20 - Enclosure: No Enclosure; Standards: REACH Art 33, WEEE - Mounting: Vertical; Mounting style: DIN Rail, Surface; Terminals: Screw - Series/Frame: SIRIUS 3RA23, Frame size S00 - Mechanical durability: 10,000,000 cycles; Temperature: -13°F to 140°F - Dimensions: Width 3.54 in, Height 3.20 in, Depth 3.70 in - Phase: Three; Reversing: Yes
