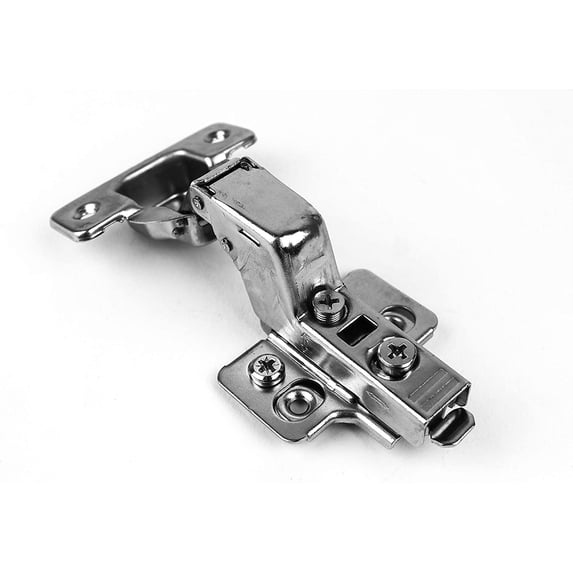

Berta 110 Degrees Inset Overlay Clip on Frameless Cabinet Hinges (20 Pack)

Inset cabinet doors are set into the cabinet frame and fit flush with the face of the cabinet when closed. With this type of door, the hinges can either be concealed or exposed. Inset cabinets are desired by many for their smooth, clean appearance. Each cabinet door hinge features a built-in damper that creates a self-closing (soft closing) movement. A hydraulic soft close silent system is built into the hinge, cabinet door will close slowly even you slam the door. The clip-on plate, 3-way adjustments on the hinge, and 2-way adjustments on the base allow faster and more efficient installation. The 2-way adjustment on the base allows for adjusting the door height after installation, great for DIY jobs or contractors. OPENING ANGLE: 110 Degrees. OVERLAY: Inset. CUP DIAMETER: 1-2/5” (35 mm). CUP DEPTH: 1/2" (12 mm). SUITABLE DOOR THICKNESS: 11/20"-22/25" (14 – 22 mm). SCREW HOLE CENTER TO CENTER: 1-4/5" (45 mm). MATERIAL: Cold Rolled Steel. FINISH: Nickel Plated. CLOSING TYPE: Soft/Self Close. ADJUSTMENT: 3-way adjustable: Side (-3mm +1mm), Depth (+3mm -1mm) and Height (+2mm -2mm). CABINET TYPE: Frameless. BORE DISTANCE: 1/8" (3 mm).
