Guitar Humbucker Alnico 2 Pickups BB1&BB2 Series N/B with Wiring Harness 4C for Gibson LP Electric Guitars Replacement Parts

Product Name: BB1 & BB2 Alnico 2 Humbucking Pickup Set for LP

Product Description:

On the shop floor of the original plant in Kalamazoo, Michigan, the earliest Patent Applied For humbuckers were wound using imprecise machines, resulting in pickups with varying degrees of output and tone. The Burstbucke line of pickups represents drive to recapture the magic of the original Patent Applied For humbucker pickups. First introduced in the early 1990s, the Burstbucker — Types 1, 2, and 3 — successfully captured the subtle variations of true, classic humbucker tone with historically unbalanced coil windings and Alnico 2 magnets. They produce an airy, full tone, and when overdriven, they achieve a magical distortion with the slightly enhanced highs that made the originals famous.

Burstbucke Type 1 features a lower output, excellent for the neck position.
Burstbucker Type 2 features medium output and is perfect for any position.
None of the Burstbuckers are wax potted, and all feature vintage braided two-conductor wiring.

Position: Neck
Magnet: Alnico 2
Wiring: 4-Conductor wiring with quick-connect terminals
Double Black Bobbins
Wax Potted
Average DC Resistance: 8K
Pickup hole spacing: 50mm
Details: Vintage vibes with rich, warm tones and balanced coils.

"Position: Bridge
Magnet: Alnico 2
Wiring: 4-Conductor wiring with quick-connect terminals
Double Black Bobbins
Wax Potted
Average DC Resistance: 9K
Pickup hole spacing: 50mm
Details: Like the 'BB1 but slightly overwound for increased output."


Features:
- AUTHENTIC REPRODUCTION: Accurately reproduces '50s PAF humbucking pickups, including nickel elements and Alnico 2 magnets.
- FULL-RANGE RESPONSE: Provides rich full-range tone and clear tonal resolution.
- NOISELESS OPERATION: A completely noiseless playing experience thanks to the humbucking construction and wax-sealed design.
- Multi-position fit: Fits in the neck and bridge positions of any guitar equipped with humbucking pickups.
- Tone Versatility: Whether it's a soulful blues solo or a raw rocker, the 'BB1 & BB2 delivers.

For LP models:
- Les Paul Standard PlusTop
- Les Paul Ultra
- Les Paul Standard Quilt Top PRO
- Les Paul Custom PRO
- Les Paul Ultra-III
- and other upcoming models

Models: BB1 & BB2

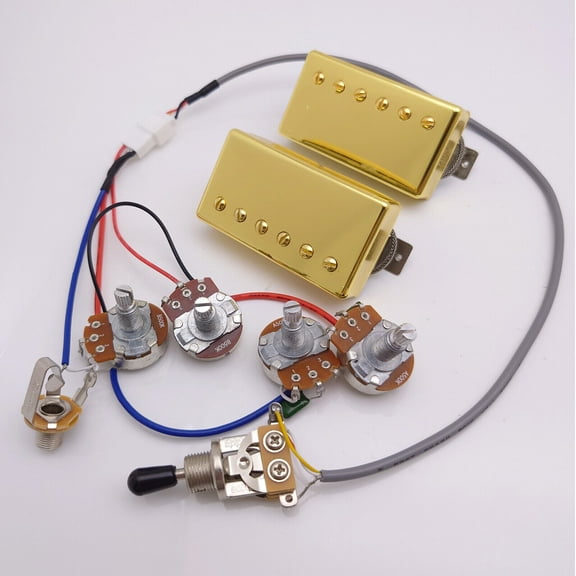

Choose from 2 versatile wiring harness combinations to customize your guitar's electronics setup. Each combination includes essential components for a complete installation.

Combination 1 : 2V1T (2 Volume, 1 Tone)
1 Toggle Switch
3 Potentiometers
1 Jack
Potentiometers:
3 Pcs ALPHA Potentiometer (2 x B500K with Push-pull single cut Switch, 1 x A500K)

Combination 2: 2V2T (2 Volume, 2 Tone)
1 Toggle Switch
4 Potentiometers
1 Jack
Potentiometers:
4 Pcs ALPHA Potentiometer (2 x B500K with Push-pull single cut Switch, 2 x A500K)
