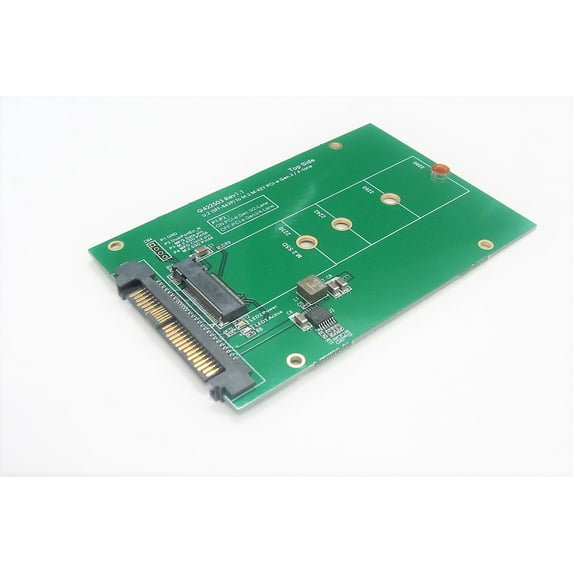

M.2 to U.2 SFF-8639 PCIe X4 GEN 3 Adapter

M.2 to U.2 SFF-8639 PCIe X4 GEN 3 Adapter‌

Features

• 4 Layer PCB Designed
• Built in SFF-8639 Plug connector
• Built in M.2 NGFF M-Key receptacle connector
• LED ON indicates M.2/PCI-e 4 Lane device power OK
• LED 3 indicates active status

Specifications

• PCI Express Base Specifications Rev 3.0
• SFF-8639 Enterprise SSD Form Factor Version 1.0a
• PCI Express Card Electro-Mechanical (CEM) Specification REV 2.0
• PCI Express M.2 Spec Revision 0.7, Version 1.0
• NVM Express 1.0
• PWM synchronous buck converter Power IC
• 3.3V, 4A Maximum output current
• Short circuit protection
• In-rush current suppression
• Thermal shut down protection
• ESD HBM (Human Body Mode) 2KV
• ESD CDM(Charged Device Mode)/ 500V

Support M.2 M-Key Form Factors

• Type 2280-D2-B-M : 80mm(L) X 22mm(W)
• Type 2260-D2-B-M : 60mm(L) X 22mm(W)
• Type 2242-D2-B-M : 42mm(L) X 22mm(W)
• Type 2230-D2-B-M : 30mm(L) X 22mm(W)

Operating System Support

• Windows 7 64 bit
• Windows 8 64 bit
• Windows 8.1 64 bit
• UEFI 2.3.1 or later

Micro SATA Cables PN # SFF-937-4XGEN3

Cable Options for Adapter

• Micro SATA Cables PN # U2-1173-50CM
• ‌Micro SATA Cables PN # SFF-992-20CM
• Micro SATA Cables PN # SFF-854-1M
