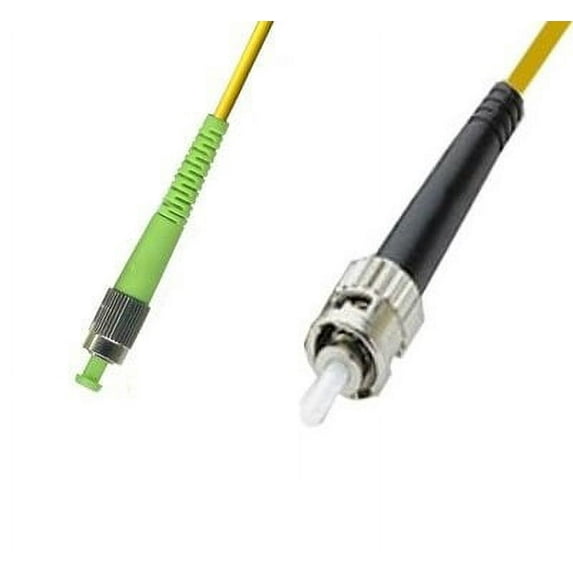

FCA-STP-SS9 - FC/APC to ST/UPC singlemode 9/125 simplex fiber optic patch cord cable, length 1m

(No ratings yet)

Key item features

singlemode 9/125um core (SMF-28e), simplex, FC/APC to ST/UPC fiber optic patch-cord, 1 meter length
typical insertion loss: 0.2 dB, return loss > 65 dB, fiber jacket 2.0mm, yellow color, zipcord style, operating temperature: -40 to +75 Celsius degrees
each cable assembly is manually tested and verified, individually packaged and labeled - label mentions measured loss on patch cord

Specs

Price when purchased online

Not Available

How do you want your item?

Not available

Report an issue with this seller

About this item

Product details

Singlemode 9/125 um core, simplex, zipcord style, FC/APC to ST/UPC fiber optic patch-cord, 1 meter length. APC stands for Angle-polished Physical Contact (8 degrees angle ferrule cut) for very high return loss (>65dB) and UPC stands for Ultra Physical Contact and represents one of the best ways of polishing for fiber ferrules, assuring a return attenuation greater than 50dB for singlemode connections. Technical specifications: - typical insertion loss: 0.2 dB - return loss > 65 dB - fiber jacket 1.8mm, yellow color, zipcord style - operating temperature: -40 to +75 Celsius degrees - each cable assembly is manually tested and verified - each cable assembly is individually sealed and labeled - label mentions measured loss on patch cord

singlemode 9/125um core (SMF-28e), simplex, FC/APC to ST/UPC fiber optic patch-cord, 1 meter length
typical insertion loss: 0.2 dB, return loss > 65 dB, fiber jacket 2.0mm, yellow color, zipcord style, operating temperature: -40 to +75 Celsius degrees
each cable assembly is manually tested and verified, individually packaged and labeled - label mentions measured loss on patch cord

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Brand

CTCUnion

Warranty

Warranty information

Product is guaranteed free of manufacturer defects. If any fault caused by manufacturing process is found, product is replaced under warranty. Faults of manufacturing do not include misuse or normal wear and tear of the product.
