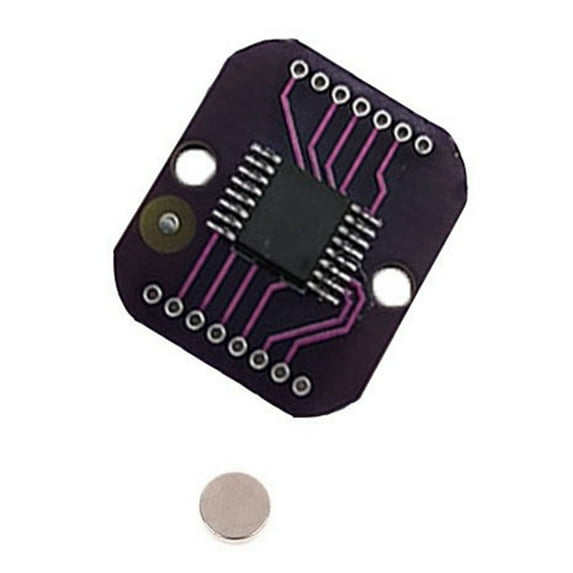

MT6835 Magnetic Encoder Module PWM/SPI Brushless Motor 21BIT Encoder Can Replace AS5048
(No ratings yet)
Key item features
- Based on technology, it provides absolute angle measurement from 0° to 360°
- Working voltage 3.3~5.0V
- Typical value of linearity deviation Less than ±0.5° (factory value), typical value of linearity deviation Less than ±0.07° (typical value self-calibration), typical value of linearity deviation Less than ±0.02° (typical self-calibration)
- The system delay is 2us~10us, and the maximum speed can be up to 120,000 rpm
- Working temperature -40℃~125℃
Specs
- ColorPurple
- Has written warrantyNo
Current price is USD$9.99
Price when purchased online
- Free shipping
Free 30-day returns
How do you want your item?
Ships to
Arrives between Jun 24 - Jun 26
|
Sold and shipped by NY Electronics Co. Ltd
3.678571428571429 stars out of 5, based on 84 seller reviews(3.7)84 seller reviews
Free 30-day returns
About this item
Product details
Provide standard 4-wire SPI interface (maximum clock 16MHz) to read 21-bit angle data inside the chip
Incremental output ABZ supports any resolution from 1 to 16384 lines
Incremental output UVW supports 1~16 arbitrary pole pairs
Support up to 5 times online zero programming
The output is SPI
Colour:
Material:PCB
Package Contents:
1 x Magnetic encoder
1 x Magnet
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Incremental output ABZ supports any resolution from 1 to 16384 lines
Incremental output UVW supports 1~16 arbitrary pole pairs
Support up to 5 times online zero programming
The output is SPI
Colour:
Material:PCB
Package Contents:
1 x Magnetic encoder
1 x Magnet
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
- Based on technology, it provides absolute angle measurement from 0° to 360°
- Working voltage 3.3~5.0V
- Typical value of linearity deviation Less than ±0.5° (factory value), typical value of linearity deviation Less than ±0.07° (typical value self-calibration), typical value of linearity deviation Less than ±0.02° (typical self-calibration)
- The system delay is 2us~10us, and the maximum speed can be up to 120,000 rpm
- Working temperature -40℃~125℃
