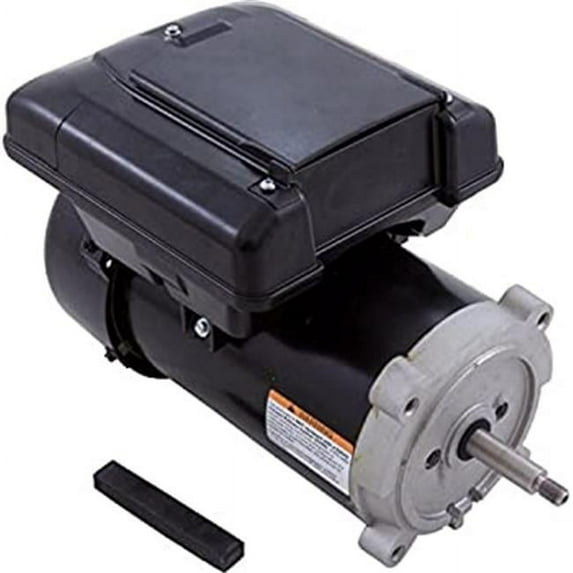

Hero image 0 of AO Smith Century VGreen 165 C-Face Variable Speed Pool Pump Motor 1.65HP 230V, 0 of 1
AO Smith Century VGreen 165 C-Face Variable Speed Pool Pump Motor 1.65HP 230V
Key item features
- Total Horsepower: 1/2 min to 1.65 max | RMP: 600-3450 | Volts: 208-230 | Max Amps: 10.5-10.0
- Service Factor: 1.0 | Frame Size: 56J | Energy Savings: 80% | Model # ECM16CU
- Features: Integrated User Interface, Timer Mode, Manual Mode, Freeze Protection, Noise Reduction Design, Factory Default Settings Reset, Ball Bearing and Totally Enclosed Fan Cooled (TEFC)
- More Features: Single Phase, Schedule Advance, ECM Design, Program Memory Back-Up, 303 Stainless Steel Shaft, Class F Insulation, 50 degrees Celsius Ambient, UV & Rain-Proof Enclosure, Keypad Lockout and Digital Inputs for Third Part Automation.
- Warranty Period: VGreen motors are warranted against defects in materials and workmanship for a period of 18 months from the date of installation or 24 months from the date of manufacture, whichever comes first.
Specs
- BrandAO Smith
- Horsepower1.65 HP
- Volts230 V
- Pump operating phaseVariable Speed
- FeaturesEnergy Efficient
- Has written warrantyNo
Current price is USD$642.71
Price when purchased online
Out of stock
How do you want your item?
Out of stock
About this item
Product details
An integrated user interface that allows for easier installation and operation of a variable speed motor. The all-in-one design reduces installation time and expense with no additional wiring required. The VGreen motor can replace any single speed motor without replacing the pump, turning any pool into a high-efficiency system that is better for the environment and lowers the cost of pool ownership. The amount of power required to move the water through the pipes drops much more quickly than the speed. While it may take one horsepower to move the water through the pipes on high speed, it only takes 1/8 horsepower to move one half as much water through those same pipes on low speed. Even when run on low speed twice as long to pump the same amount of water as on high speed, the lower horsepower results in significant energy savings.
- Total Horsepower: 1/2 min to 1.65 max | RMP: 600-3450 | Volts: 208-230 | Max Amps: 10.5-10.0
- Service Factor: 1.0 | Frame Size: 56J | Energy Savings: 80% | Model # ECM16CU
- Features: Integrated User Interface, Timer Mode, Manual Mode, Freeze Protection, Noise Reduction Design, Factory Default Settings Reset, Ball Bearing and Totally Enclosed Fan Cooled (TEFC)
- More Features: Single Phase, Schedule Advance, ECM Design, Program Memory Back-Up, 303 Stainless Steel Shaft, Class F Insulation, 50 degrees Celsius Ambient, UV & Rain-Proof Enclosure, Keypad Lockout and Digital Inputs for Third Part Automation.
- Warranty Period: VGreen motors are warranted against defects in materials and workmanship for a period of 18 months from the date of installation or 24 months from the date of manufacture, whichever comes first.
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it. Â
Specifications
Brand
AO Smith
Horsepower
1.65 HP
Volts
230 V
Pump operating phase
Variable Speed
Warranty
Warranty information
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
