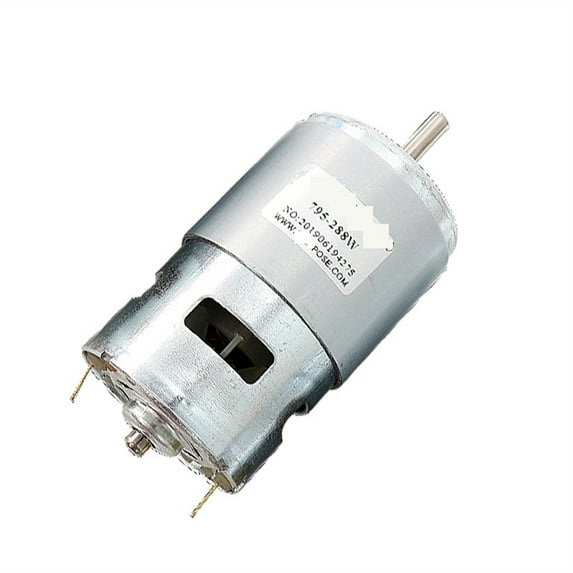

775 795 895 Spindle Motor 3000-12000 RPM Motor Brush Dc Motors 775 150W Lawn Mower Motor With Two Ball Bearing Rated ,Connector Compatible

775 795 895 Spindle Motor 3000-12000 RPM Motor Brush Dc Motors 775 150W Lawn Mower Motor With Two Ball Bearing Rated

Motor Type 775-150W 795-288W 895-368W

Rated Voltage DC12-24V Universal DC12-24V Universal DC12-24V Universal

Shaft Diameter 5mm 5mm 5mm

Front Axle Length 16mm 16mm 16mm

Torque 0.2Nm 0.39Nm 0.45Nm

Rated Current 5-20A 10-20A 10-20A

Rear Axle Length 6mm 6mm 6mm

Mounting Aperture 29mm (M4 threaded Hole) 29mm (M4 threaded Hole) 29mm (M4 threaded hole)

32mm(M4 threaded hole)

Motor Power 12v 12000rpm 6000rpm 6000rpm

Motor Power 24v 24v cannot be used 12000rpm 12000rpm

Motor Power 150w 288w 368w

Motor Shaft Type round Shaft Round Shaft Round shaft

Ball Bearing Double Ball Front and Rear Double Ball Front and Rear Double Ball Front And Rear

Motor Weight 320g 370g 500g
