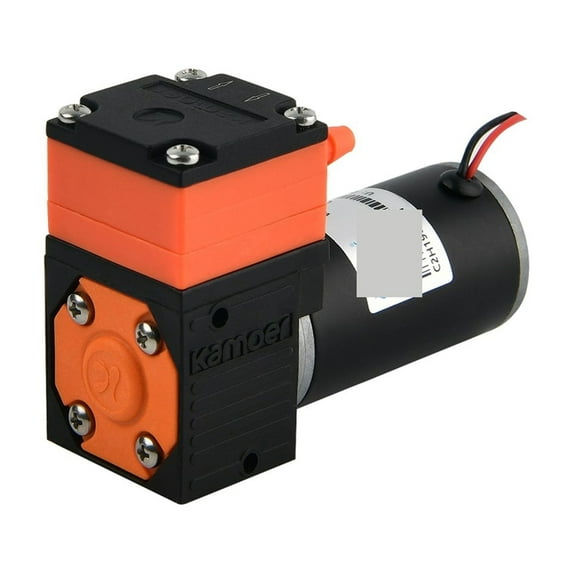

400-600ml/min ELP02/01 Diaphragm Pump 24V/12V DC Motor Liquid Pressure 0.2Mpa Self-priming Pump ,Support Speed Adjustment

400-600ml/min ELP02/ELP01 Mini Diaphrag Pump with 12V/24V

Brush Motor Self Priming Pump for Liquid Transfer

Basic Parameters

ELP02

Flow ml/min

600ml

Suction

2m

Head

20m

Power

6W

Motor

Brush motor

Voltage

12V/24V

Noise

68dB (test environment noise 35dB, the horizontal distance between the test product and the noise meter is 0.5m)

Weight

215g

Control method

Switch control

Lifetime

1000H

Working environment

<80%

Optional accessories

PU: ID4mmxOD6mm

Basic Parameters

ELP01

Flow ml/min

400ml

Suction

2m

Head

20m

Power

4W

Motor

Brush motor

Voltage

12V/24V

Noise

68dB (test environment noise 35dB, the horizontal distance between the test product and the noise meter is 0.5m)

Weight

215g

Control method

Switch control

Lifetime

1000H

Working environment

<80%

Optional accessories

PU: ID4mmxOD6mm

Supplementary instructions

The above parameters are the test results under standard atmospheric pressure, room temperature

25°C, water medium, and no load pressure of the pump (no liquid drop).

The performance parameters of the product are affected by the environmental state (air pressure, temperature, humidity, etc.), medium state (temperature, density, viscosity, chemical properties, etc.) and

the load before and after the pump, so the above parameters may be different from the actual parameters.

Various Applications

# Experiment

# Liquid dispensing

# Inkjet

# Medical equipment

# Washer machine

# Sewage sampling

Materials of Diaphragm

E---EPDM

Decent resistance and tolerance with alcohol, acid, alkali, oxidant, ketone, and grease, etc.Poor oil resistance.

Straight connectors

Easy to connect the tubing

Left is Export. Right is Import.

Four holes on the pump for mounting

Brush motor 12V or 24V Optional voltage

Power 6W

Lifetime 1000H

Technical Size
