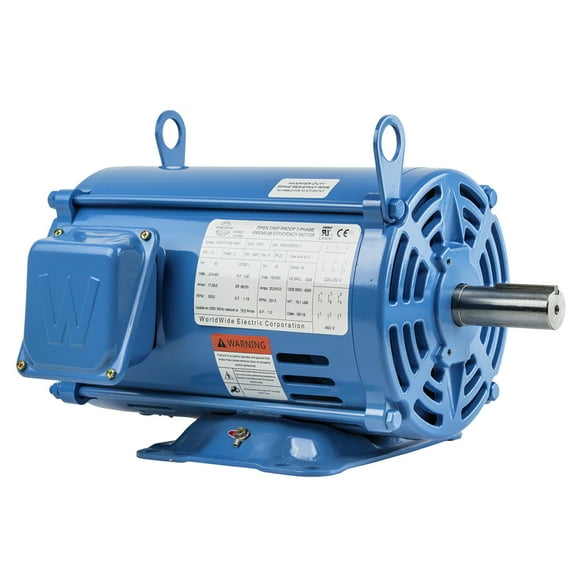

7.5 HP 3 Phase Electric Motor 3500 RPM 184T Frame ODP Open Drip Proof 230/460V

Worldwide Electric ODP7.5-36-184T 7.5 HP 3502 RPM 184T Electric Motor Brand new 7.5 horsepower, open drip proof, 3 phase premium efficiency electric motor with rigid base. Worldwide Electric designs and manufactures motors with quality and reliability in mind. This motor features Class F insulation, fan cooling, a 1.15 service factor (1.00 at 50Hz), and is a premium efficiency motor. Designed for 60Hz, features an ODP enclosure, and is a 184T frame. SPECIFICATIONS: • 7.5 Horsepower • 3 Phase • ODP Enclosure • 184T Frame • Service Factor 1.15 • Class F Insulation • 78.1 LBS • 230/460 Volt • 3502 RPM   • Fan Cooled • Worldwide Electric Brand • Shaft Length: Approximately 2 7/8" • Keyed 1 1/8" Diameter Shaft • Current: AC • Full Load Amps: 17.2/8.6 • Usable on 208V 60Hz Network at 18.9 Amps • 60 HZ  • Design: B • Max Ambient Temp: 40 Degrees C
