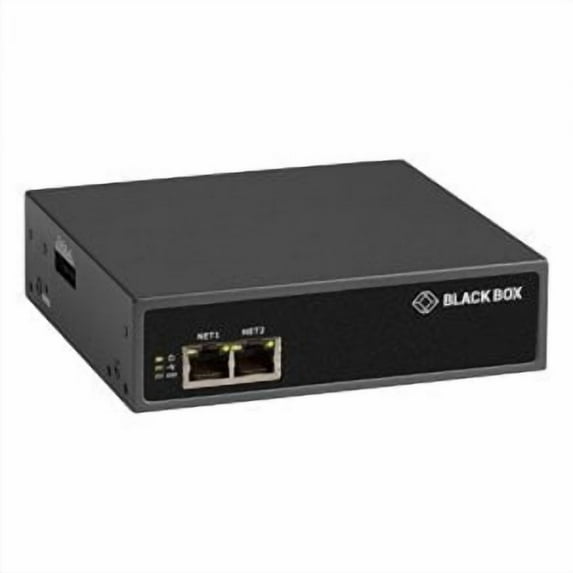

Black Box 8-Port Console Server

Technical Information

Device Type: Console Server

Memory

Standard Memory: 256 MB
Memory Technology: DDR3 SDRAM

Media & Performance

Media Type Supported: Twisted Pair

Network & Communication

Ethernet Technology: Gigabit Ethernet
Network Standard: 10/100/1000Base-T

Interfaces/Ports

Network (RJ-45): Yes
USB: Yes
Serial Port: Yes
Number of Network (RJ-45) Ports: 2
Number of USB Ports: 4
Number of Serial Ports: 8

Power Description

Input Voltage: 120 V AC, 230 V AC, 12 V DC

Physical Characteristics

Height: 5.1"
Width: 4.8"
Depth: 1.4"
Weight (Approximate): 1.30 lb

Miscellaneous

Additional Information: Serial Port: Cisco straight 50 to 230,400 bps

Security and Authentication: SSH; FIPS-140-2 compliant Open SSL Module; Strong ciphers-AES encryption; Cisco-compatible IPsec; AAA-TACACS+, RADIUS, Active Directory/OpenLDAP, Kerberos, with local fallback; Two factor authentication via remote AAA; Configurable stateful firewall; OpenVPNStorage Temperature: -40 to +167° F (-40 to +75° C)

Power Consumption: Less than 11.5 W

Operating Humidity: 5 to 90%

Console Management: Built-in web terminal, SSH direct to consoles, optional console keystroke logging, alert on cable disconnects, inline power control, multiple concurrent sessions
Country of Origin: United States
TAA Compliant: Yes

Warranty

Limited Warranty: 4 Year
