Hero image 0 of INTSUPERMAI Plate Frame Filter Slag Machine FT-150 Model 110V Stainless Steel, 0 of 6

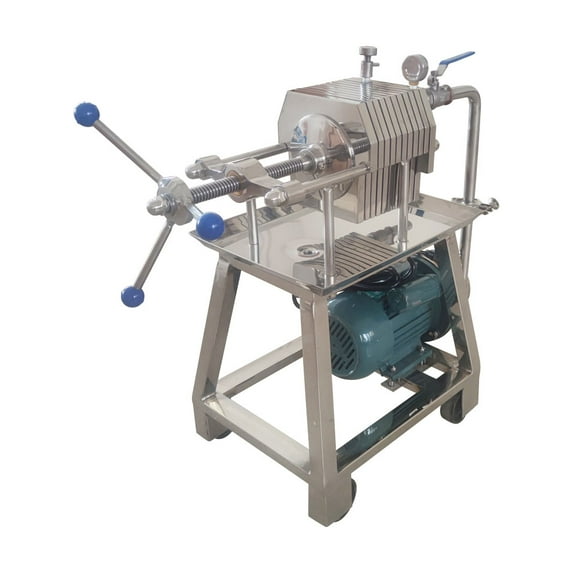

INTSUPERMAI Plate Frame Filter Slag Machine FT-150 Model 110V Stainless Steel

(No ratings yet)

Key item features

The plate and frame filter is suitable for closed filtration of liquids with low viscosity below 50% and low slag content to achieve the requirements of fine filtration and semi-fine filtration such as purification and clarification. Microporous filter membrane is directly used without microporous Membrane filter directly achieves the ideal filtering purpose.
The series plate and frame filter adopts convex plate filter plate, which effectively increases the cross-sectional area of water guide, reduces the resistance of liquid filtration and circulation, and can maintain the stability of liquid performance. The service life of the filter material.
All sealing parts are installed with milky white silicone rubber sealing rings, which are resistant to high temperature and no leakage.
Different filter materials can be replaced according to the different production process requirements of the filtered liquid. The user can reduce or increase the filter material according to the production flow size to meet various production needs.
The pressure filtration. Slurry pump into each sealed filter material filter chamber, under the effect of pressure, the filtrate through filter layer and the filter cloth, filter cloth liquid outlet discharge, the filter residue is left in the filter box filter cake formation, so as to achieve the goal of solid-liquid separation.

Specs

Brand
intsupermai
Material
Stainless Steel
Watts
750 Watts
Volts
110 V
Horsepower
0.75 HP
Lab filter type
Filter Membranes

Price when purchased online

Report an issue with this seller

More seller options (1)

Starting from $1,632.96

About this item

Product details

Parameter:
Model: FT-150
Voltage: 110V
Power: 750W
Number of layers: 10
Filtration area:1.83square feet(0.17㎡)
Filter size: 5.9inch(150mm)
Working pressure: 0.15Mpa
Maximum flow: 1.5T/h

Item included: 188032
INTSUPERMAI Plate Frame Filter FT-150 Model 110V

The plate and frame filter is suitable for closed filtration of liquids with low viscosity below 50% and low slag content to achieve the requirements of fine filtration and semi-fine filtration such as purification and clarification. Microporous filter membrane is directly used without microporous Membrane filter directly achieves the ideal filtering purpose.
The series plate and frame filter adopts convex plate filter plate, which effectively increases the cross-sectional area of water guide, reduces the resistance of liquid filtration and circulation, and can maintain the stability of liquid performance. The service life of the filter material.
All sealing parts are installed with milky white silicone rubber sealing rings, which are resistant to high temperature and no leakage.
Different filter materials can be replaced according to the different production process requirements of the filtered liquid. The user can reduce or increase the filter material according to the production flow size to meet various production needs.
The pressure filtration. Slurry pump into each sealed filter material filter chamber, under the effect of pressure, the filtrate through filter layer and the filter cloth, filter cloth liquid outlet discharge, the filter residue is left in the filter box filter cake formation, so as to achieve the goal of solid-liquid separation.
