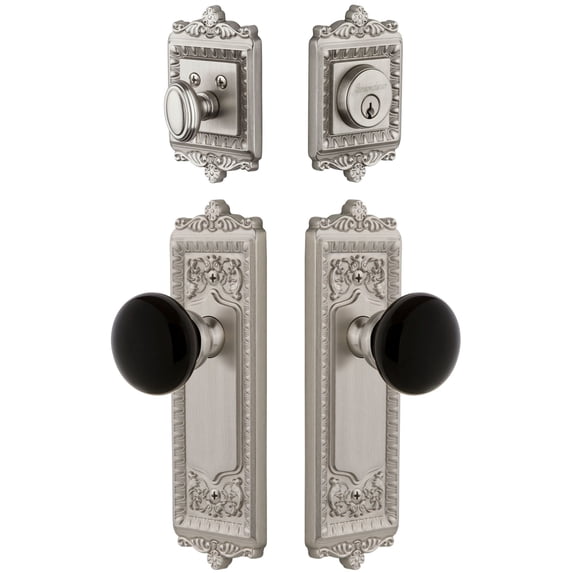

Grandeur 853558 Windsor Solid Brass Rose Single Cylinder Keyed Entry Deadbolt And Knobset

Keyed Entry (Single Cylinder) Function: Single cylinder keyed entry door hardware is locked and unlocked from the exterior using a key and can be locked and unlocked from the interior using the locking mechanism. Perfect for securing entrances, side doors, and anywhere else that needs a bit more security.

Features:

• Entry sets are only keyed at the deadbolt - knobs are not keyed
• Hand forged from solid brass and porcelain
• Handing is reversible for left or right handed doors
• Easily installs on standard prepared doors
• Includes a 2-3/4" backset and square corner latch
• Covered by a Limited Lifetime Mechanical and 10 Year Finish Warranty
• Does not fulfill criteria of the American's with Disabilities Act (ADA)
• Hand assembled in the United States
• Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys

Product Technologies:

• Solid Brass Construction: Grandeur rosettes and backsets are forged from a solid piece of brass. This process yields a denser, stronger and higher quality product that can better display intricate designs than casted door hardware.

Specifications:

• Backset: 2-3/4"
• Edge Bore: 1"
• Cross Bore: 2-1/8"
• Door Thickness: 1-3/8" to 1-3/4"
• Handing: Reversible, Left or Right
• Trim Height: 8-11/16"
• Trim Width: 2-5/8"
• Handle Height: 2-5/16"
• Handle Width: 2-5/16"
• Handle Projection: 2-7/16"
• Cylinder: 5 Pin Schlage C
• Latch Faceplate: Square Corner
• Locking Mechanism: Thumbturn
• Material: Brass, Porcelain
