CT Sounds Car Audio Strato 6.5 Inch 3-Way Component Set 230 Watts RMS Power

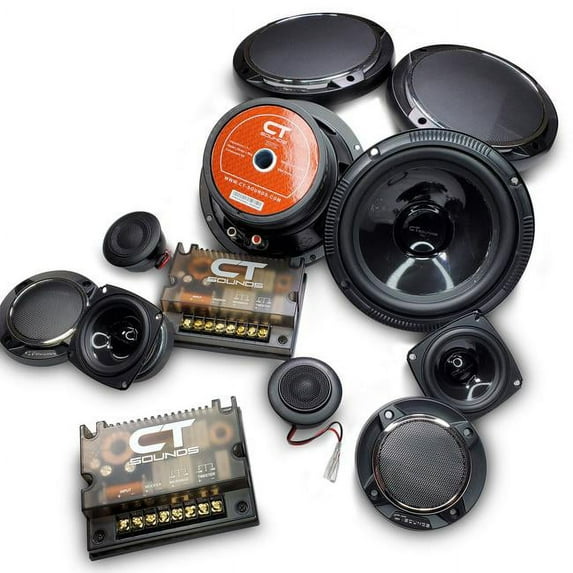

Whats in the box:

• 2 x Stato 6.5" Midrange Driver (Woofer)
• 2 x Strato 3" Midrange Speaker
• 2 x Strato 25mm / 1" Silk Dome Tweeter
• 2 x ABS Box 3-Way Crossover
• 2 x Woofer Protection Grille (for 6.5" woofers)
• Tweeters Mounting Pods

Features:

1. Each speaker has Vacuum PP cone with rubber surround
2. Yellow color PC spider (white Zinc plated) with 6mm top plate and 5mm back plate
3. Voice coil of 1.4" / 36mm (dia) at each speaker
4. Y30 ferrite & Neo magnets
5. Each 25mm silk-dome tweeter is covered with black metal mesh face grille
6. Crossover circuit box has dark clear top cover with CT Sounds logo printed on top of it
7. Quality Copper Clad Aluminium Wire (CCAW) connected with tweeters for connectivity
8. Spring type terminals for woofer connectivity, RED one for Positive (+ve) & BLACK one for Negative (-ve) & steel plate type terminals for 3" midrange driver connectivity, big one for Positive (+ve) & small one for Negative (-ve)
9. Each speaker has black cast aluminium basket with black powder texture paint on them
10. Embossed logo on speaker basket & around speaker magnet for a bold outlook
11. Quality metal mesh face grilles (pair) provided for 6.5" woofer & 3" Midrange safety
12. Comes with wires & screws for easy installation

Technical Specifications:

1. Speaker size: 6.5"
2. Midrange size: 3"
3. Tweeter size: 1"
4. System type: 3-Way Component
5. Impedance per speakers set (woofer+midrange+tweeter): 4-Ohm
6. Power per speakers set: 115W (RMS) | 230W (MAX)
7. Total system power: 230W (RMS) | 460W (MAX)

6.5" Woofer:

1. Rated power per speaker: 60W (RMS) | 120W (MAX)
2. Rated power per speaker pair: 120W (RMS) | 240W (MAX)
3. Output SPL (@1w/1m): 89 dB
4. Frequency response (@SPL -10dB): 50 Hz ~ 8 kHz
5. X-over point: 3.5 kHz
6. Magnet size: 100mm x 20mm
7. Magnet weight: 21 Oz
8. Magnet type: Y30 ferrite
9. Cone material: IMPP Cone with NBR Surround

3" Mid-range Woofer:

1. Rated power per speaker: 30W (RMS) | 60W (MAX)
2. Rated power per speaker pair: 60W (RMS) | 120W (MAX)
3. Output SPL (@1w/1m): 89 dB
4. Frequency response (@SPL -10dB): 100 Hz ~ 15 kHz
5. X-over point: 3.5 kHz
6. Magnet size: 65mm x 10mm
7. Magnet weight: 4 Oz
8. Cone material: IMPP Cone with NBR Surround

25mm Tweeter:

1. Rated power per tweeter: 25W (RMS) | 50W (MAX)
2. Rated power per speaker pair: 50W (RMS) | 100W (MAX)
3. Output SPL (@1w/1m): 90 dB
4. Fo: 2 kHz
5. Frequency response (@SPL -10dB): 1.5 Hz ~ 20 kHz
6. X-over point: 3.5 kHz
7. Magnet type: Neodynium
8. Tweeter material: Silk dome tweeter with metal mesh grilles
9. Tweeter body: Plastic

Crossover:

1. Crossover circuit: 4μF capacitor / 100V
2. Crossover point: 3.5kHz
3. Filter for woofer: 6dB
4. Filter for mid-range: 9dB
5. Filter for tweeter: 12dB

Mounting / Installation Parameters:

6.5" Woofer:

1. Cutout diameter: 5.56" / 141mm
2. Outer diameter: 6.93" / 176mm
3. Mounting depth: 2.86" / 73mm
4. Mounting depth (Grilles on): 3.90" / 99mm

3" Mid-range Woofer:

1. Cutout diameter: 2.61" / 66mm
2. Outer diameter: 3.58" / 91mm
3. Mounting depth: 1.57" / 40mm
4. Mounting depth (Grilles on): 2.32" / 59mm

25mm Tweeter:

1. Cutout diameter: 2.07" / 53mm
2. Outer diameter: 2.38" / 60mm
3. Mounting depth: 0.96" / 24mm

Crossover box:

1. Box length (bottom): 4.91" / 125mm
2. Box length (top): 4.70" / 120mm
3. Box breadth: 3.73" / 95mm
4. Box height: 1.34" / 34mm
