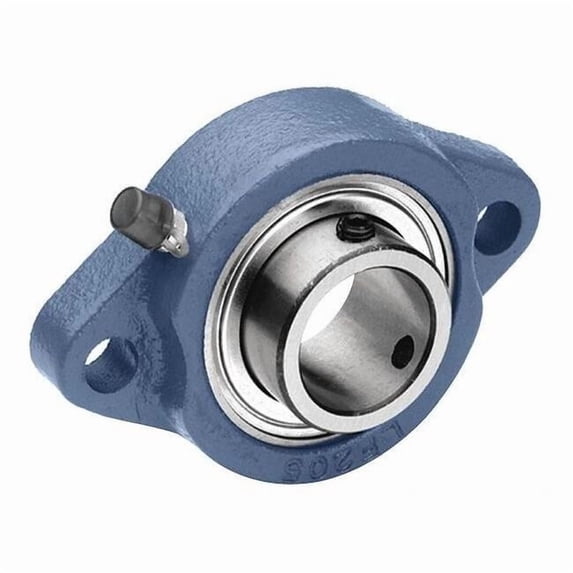

Tritan Flange Bearing,2-Bolt,Ball,5/8" Bore SBLF202-10G

(No ratings yet)

Key item features

Bearing Housing Material Type:Cast Iron
Bearing Insert Material:52100 Steel
Bearing Insert Type:Radial Ball
Bearing Lubrication:Shell Alvania RL2 or NLGI #2 Equivalent
Bearing Material Grade:52100
Dynamic Load Capacity:2146 Lbf
Features:Narrow Inner Ring Bearing, SBLF Light Duty
Finish:Painted
Flange Thickness:0.375 in
Housing Material Finish:Painted
Housing Material:Cast Iron
Housing Type:Rhombus
Included Bearing:SB202-10G
Item:2 Bolt Flange Bearing
Locking Type:Set Screw
Lubricant Material:NLGI #2 Equivalent
Lubrication Openings:One Zirc Fitting
Lubrication:NLGI Grade 2 Multipurpose Lithium Soap Based Bearing Grease
Maximum Temperature:250 Degrees F
Minimum Temperature:-40 Degrees F
Mount Hole Center-to-Center Length:2.5 in
Mount Hole Size:5/16 in
Mounting Bolt Size:1/4 in
Number of Mount Holes:2
Rolling Element Rows:1
S
Seal Material:Rubber
Series:SBLF
Standards:AFBMA, ISO Certified
Static Load Capacity:1034 Lbf
Static Radial Load Capacity:1,034 lbf
System of Measurement:Inch
Temp. Range:-4 to +248Â° F

Specs

Brand
Tritan
Vehicle fitment type
Universal
Material
Cast Iron
Has written warranty
No
Items included
SB202-10G
Weight
0.61 lb

Price when purchased online

Report an issue with this seller

More seller options (4)

Starting from $31.69

About this item

Product details

2 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 5/8 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing SB202-10G, Lubricant Material NLGI #2 Equivalent, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Number of Mount Holes 2, Overall Height 2 13/64 in, Overall Length 3 11/64 in, Overall Width 1 in, Rolling Element Rows 1

Bearing Housing Material Type:Cast Iron
Bearing Insert Material:52100 Steel
Bearing Insert Type:Radial Ball
Bearing Lubrication:Shell Alvania RL2 or NLGI #2 Equivalent
Bearing Material Grade:52100
Dynamic Load Capacity:2146 Lbf
Features:Narrow Inner Ring Bearing, SBLF Light Duty
Finish:Painted
Flange Thickness:0.375 in
Housing Material Finish:Painted
Housing Material:Cast Iron
Housing Type:Rhombus
Included Bearing:SB202-10G
Item:2 Bolt Flange Bearing
Locking Type:Set Screw
Lubricant Material:NLGI #2 Equivalent
Lubrication Openings:One Zirc Fitting
Lubrication:NLGI Grade 2 Multipurpose Lithium Soap Based Bearing Grease
Maximum Temperature:250 Degrees F
Minimum Temperature:-40 Degrees F
Mount Hole Center-to-Center Length:2.5 in
Mount Hole Size:5/16 in
Mounting Bolt Size:1/4 in
Number of Mount Holes:2
Rolling Element Rows:1
S
Seal Material:Rubber
Series:SBLF
Standards:AFBMA, ISO Certified
Static Load Capacity:1034 Lbf
Static Radial Load Capacity:1,034 lbf
System of Measurement:Inch
Temp. Range:-4 to +248Â° F
