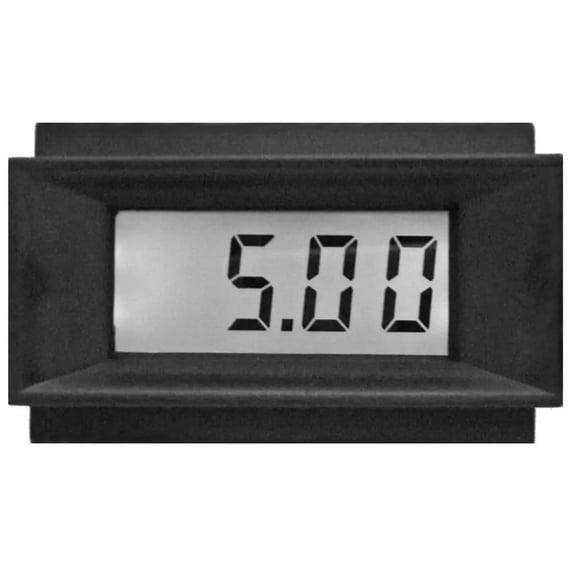

3½ Digit Backlit LCD Panel Meter - Isolated or Common Ground (5VDC or 9VDC)

Name: 3½ Digit Backlit LCD Panel Meter - Isolated or Common Ground (5VDC or 9VDC)
Brand: Electronix Express
SKU: 814415360
Price: 17.95 USD
Availability: InStock
Rating: 5 (1 reviews)

|1 rating

Key item features

Backlit LCD Panel Meter suitable for various applications such as Volt meter, Amp meter, Temperature meter, etc.
Can be set to work with either a 5VDC or 9VDC power source
Common or Isolated Ground
Easy to use jumper points for setting the required measurement range
Overall measures 1⅝" tall, 2¾" wide, and approx. 1" deep

Specs

Brand
Electronix Express
Volts
12 V, 24 V
Power type
Electric
Features
Adjustable
Color
Gray
Assembled product height
42 mm

Current price is $17.95

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Ships to

Arrives by Tue, Jun 16

Sold and shipped by RSR Electronics Inc.

4.4217506631299734 stars out of 5, based on 377 seller reviews(4.4)

Free 30-day returns

About this item

Product details

The PM-128E has a Back Light and is an enhanced version of our best selling PM-128A 3.5 digit LCD panel meter. PM-128E has all of the capabilities of the PM-128A & is identical in size & look. However, unlike the PM-128A, the E version can be set to work with either a 5VDC or 9VDC power source. Also, the E version will perform with either a common ground or an isolated ground. Finally, the E version is supplied with easy to use jumper points so the end user can easily set the measurement range required. Like the PM-128A, construction is very professional implementing SMT technology.

Measurement Ranges:

DC Amps: 200mA
AC Volts: 200V, 500V
DC Volts: 200mV, 2V, 20V, 200V, 500V

The display is a standard Gray LCD & has Black numbers.

The PM-128E is the same size as the PM-128A. The primary section of the meter is approximately 2 5/8" (66mm) wide, 1 5/8" (42mm) high approximately 3/4" (19mm) deep. The second section is 2 3/4" (70mm) wide, 1 1/4" (32mm) high 1/4" (7mm) deep. Total height is 1 5/8" (42mm), 2 3/4" wide (70mm) & approx. 1" (25mm) deep.

Backlit LCD Panel Meter suitable for various applications such as Volt meter, Amp meter, Temperature meter, etc.
Can be set to work with either a 5VDC or 9VDC power source
Common or Isolated Ground
Easy to use jumper points for setting the required measurement range
Overall measures 1⅝" tall, 2¾" wide, and approx. 1" deep
