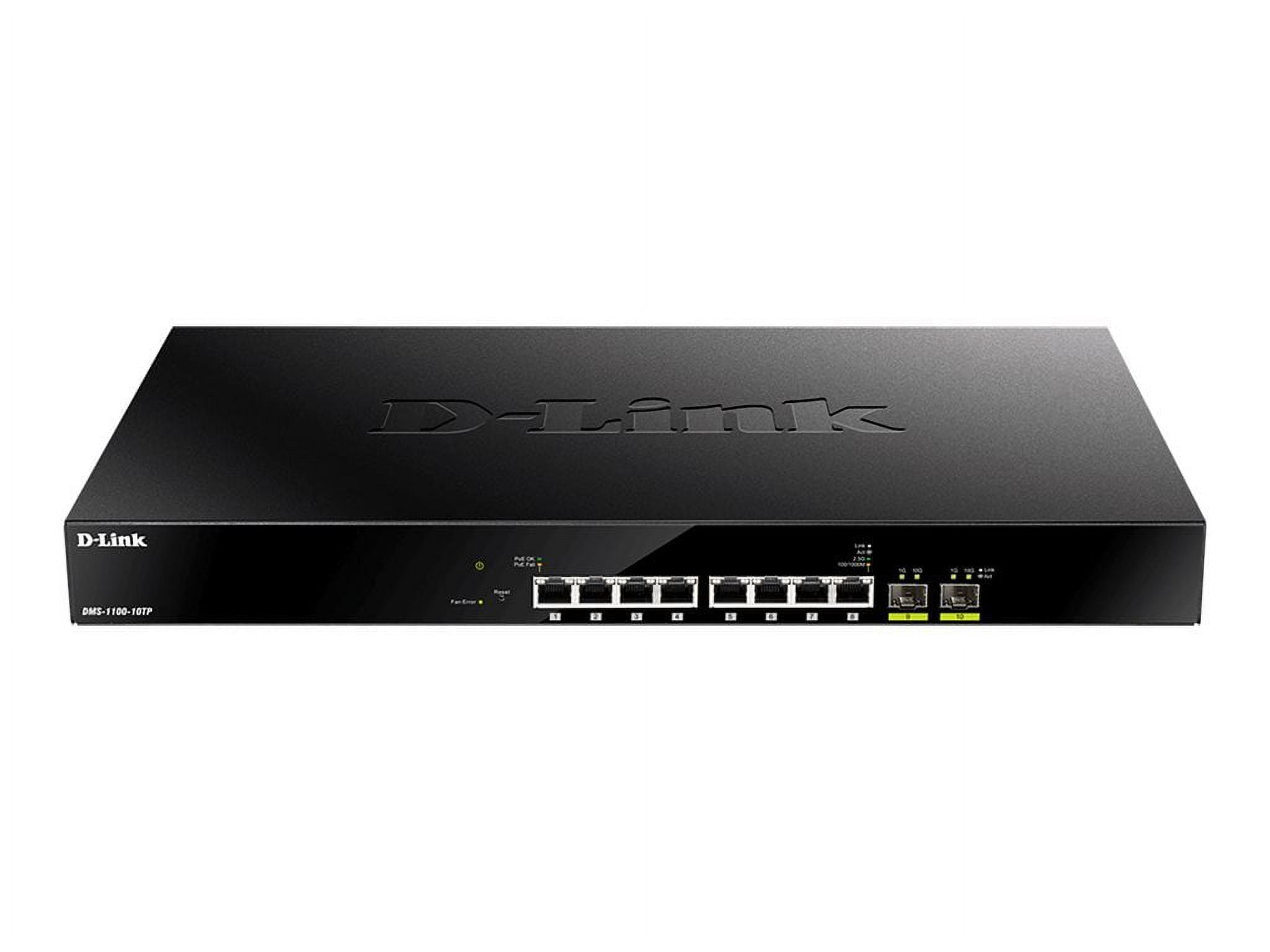

8-Port Multi-Gigabit Ethernet Smart Managed PoE Switch with 2 10GbE SFP+ ports
8-Port Multi-Gigabit Ethernet Smart Managed PoE Switch with 2 10GbE SFP+ ports
Hero image 0 of 8-Port Multi-Gigabit Ethernet Smart Managed PoE Switch with 2 10GbE SFP+ ports, 0 of 4
D-Link

8-Port Multi-Gigabit Ethernet Smart Managed PoE Switch with 2 10GbE SFP+ ports

(No ratings yet)

Key item features

  • Seamless Integration and Future Proof The DMS-1100 switches support IEEE 802.3bz and are fully backwards compatible with 802.3ab Gigabit Ethernet to deliver 2.5 Gigabit speed over commonly deployed Cat 5e cables over distances up to 100 meters. Driven by the increasing popularity of 802.11ac Wave 2 access points and the emerging trend of 2.5 Gigabit LAN connections, 2.5 Gigabit technology will ultimately replace Gigabit as the standard for Ethernet connectivity. With backwards compatibility for older standards, the DMS-1100 Series can be flawlessly integrated into existing Gigabit Ethernet network infrastructures while simultaneously making networks future-proof for the next generation of 2.5 Gigabit connectivity.
  • Complete Layer 2 and Troubleshooting Features The DMS-1100 switches come with a complete lineup of L2 features, including port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). The switches also feature loopback detection and cable diagnostics to help network administrators identify and solve network problems quickly and easily. Loopback detection is used to detect loops created by a specific port and automatically shuts down the affected port. Cable diagnostics helps network administrators quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.
  • Versatile Management The DMS-1100 switches support a variety of management options. An intuitive, web-based Graphical User Interface (GUI) enables administrators to easily set up and remotely manage their networks, greatly reducing switch deployment time. These switches also come with the D-Link Network Assistant (DNA) utility that simplifies the configuration of devices supporting the D-Link Discovery Protocol. This utility allows network administrators to discover multiple D-Link Smart Managed Switches within the same L2 network segment and displays them on screen for instant access. With this utility, users do not need to change the IP address of their PC. It further allows for simultaneous configuration and basic setup of all discovered devices, including password changes and firmware upgrades. The DMS-1100 Series also supports D-View. D-View is a network management system that allows for the central management of critical network characteristics such as availability, reliability, resilience, and security.
  • Power over Ethernet Support The DMS-1100-10TP supports industry standard IEEE 802.3at power over Ethernet across all eight copper ports. It features a total power budget of 240 W, capable of supplying up to 30 W of power per port to connected PoE-enabled devices. Power over Ethernet simplifies deployment of surveillance devices and access point infrastructures by reducing cable clutter, and eliminating the need for dedicated power supplies to allow PoE devices to be installed in remote locations.
  • Lifetime Warranty and NBD Replacement D-Link offers a Lifetime Warranty and Next Business Day (NBD) hardware replacement on the DMS-1100 Series 2.5 Gigabit Ethernet Smart Managed switches to further its commitment to product quality and long-term customer confidence.
  • Hardware version • Rev A
  • Number of Ports: • 8 x 100/1000/2.5GBASE-T (RJ45) • 2 x 10GbE (SFP+)
  • Port Standards & Functions • IEEE 802.3u 100BASE-TX • IEEE 802.3ab 1000BASE-T • IEEE 802.3z 1000BASE-X • IEEE 802.3bz 2.5GBASE-T • IEEE 802.3ae 10G over fiber • IEEE 802.3az • IEEE 802.3af/at (DMS-1100-10TP only)
  • Network Cables for 2.5GBASE-T • Cat 5e (100 m max)
  • Media Interface Exchange • Auto MDI/MDIX adjustment for all twisted-pair ports
  • Performance Switching Capacity • 80 Gbps Maximum Packet Forwarding Rate • 59.52 Mpps Transmission Method • Store-and-forward MAC Address Table • Up to 16,000 entries per device
  • PoE (DMS-1100-10TP only) PoE Standards • IEEE 802.3af/at Ports • Ports 1 to 8 PoE Budget • 240 W
  • Physical & Environmental AC Input • 100 to 240 VAC Maximum Power Consumption • DMS-1100-10TS: 33.7 W • DMS-1100-10TP: 293.4 W (PoE on); 38.1 W (PoE off) Standby Power Consumption • DMS-1100-10TS: 21.6 W • DMS-1100-10TP: 27.3 W Operating Temperature • 23˚F to 122˚F (-5˚C to 50˚C) Storage Temperature • -40˚F to 158˚F (-40˚C to 70˚C) Operatng Humidity • 0% to 95% non-condensing Storage Humidity • 0% to 95% non-condensing Dimensions • DMS-1100-10TS: • 17.32 x 8.27 x 1.73 in. (440 x 210 x 44 mm) • 19” standard rack mounting width; 1U • DMS-1100-10TP: • 17.32 x 9.84 x 1.73 in. (440 x 250 x 44 mm) • 19” standard rack mounting width; 1U Weight • DMS-1100-10TS: • 5.58 lbs (2.53 kg) • DMS-1100-10TP: • 7.56 lbs (3.43 kg) Ventilation • 1 Smart fan MTBF • 378,023 hours • 676,329 hours Diagnostic LEDs • Link/Activity/Speed (Per 2.5GBASE-T port) • Link/Activity/Speed (Per 10G SFP+ port) • POWER • FAN error • PoE status (DMS-1100-10TP only) Certifications • CE, FCC, C-Tick, VCCI, BSMI, CCC Safety • cUL, CB, CE, CCC, BSMI
  • Software Features L2 Features • Flow control • 802.3x Flow control • HOL Blocking Prevention • Jumbo frames up to 9216 Bytes • IGMP Snooping • IGMP v1/v2/v3 Snooping • Supports 192 groups (shared with MLD Snooping) • IGMP Snooping Querier • IGMP Snooping Fast Leave • MLD Snooping • MLD snooping v1/v2 • Supports 192 groups (shared with IGMP Snooping) • MLD Snooping Querier • MLD Snooping Fast Leave • 802.3ad Link Aggregation: • Support 8 groups per device and 8 ports per group • Loopback Detection v4.07 • LLDP/LLDP-MED • Port Mirroring • One-to-One • Many-to-One • Mirror based on Tx • Mirror based on Rx • Statistics • Tx Ok • Tx Error • Rx Ok • Rx Error • Spanning Tree Protocol • 802.1D STP • 802.1w RSTP • Ethernet Ring Protection Switching • G.8032 ERPS single ring • 16 max nodes per ring VLAN • 802.1Q tagged VLAN • Port-based VLAN • Auto Surveillance VLAN 2.01 • Voice VLAN • Asymmetric VLAN • VLAN Group • Supports 4094 static VLAN groups • Max. 4094 VIDs Quality of Service (QoS) • 802.1p Quality of Service • 8 queues per port • Strict Priority Queue (SPQ) • Weighted Round Robin (WRR) • Deficit Round Robin (DRR) • Port-based bandwidth control (rate limiting) • Port-based bandwidth control • Ingress bandwidth control • Egress bandwidth control Security • D-Link Safeguard • Traffic segmentation • Broadcast/Multicast/Unknown Unicast Storm Control • DoS attack prevention • SSLv3/TLS 1.2 • IPv4 support • IPv6 support Operations, Administration and Management (OAM) • Cable Diagnostics • Factory Reset Authentication, Authorization, and Accounting (AAA) • Trusted Host Management • Web-based GUI (supports IPv4/IPv6) • Smart Wizard • Client-based D-Link Network Assistant (DNA) • SNTP • SNMP • Supports v1/v2c • SNMP trap • System log • DHCP/BootP client • TFTP client • D-Link Discovery Protocol (DDP) • Dual images • Dual configurations • Ping Green Technology • Power saving features • LED shutoff • Link status • Port shutoff • System hibernation • Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE) MIB/RFC Standards • RFC768 UDP • RFC791 IP • RFC792 ICMP • RFC793 TCP • RFC826 ARP • RFC1213 MIB II • RFC768 UDP • RFC791 IP • RFC792 ICMP • RFC793 TCP • RFC826 ARP • RFC1213 MIB II
