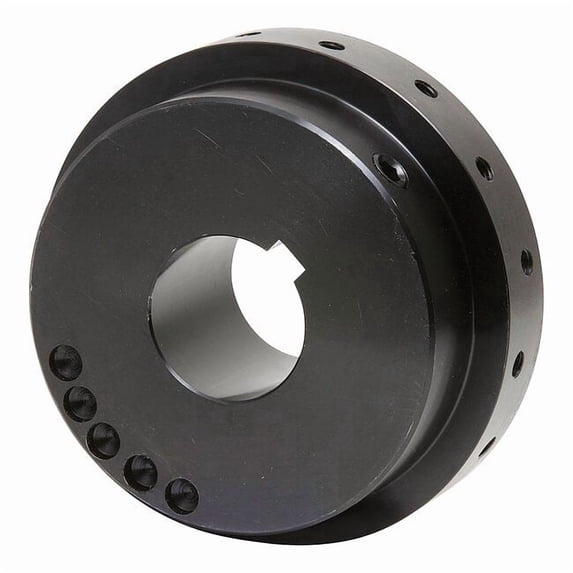

Dura-Flex Tire Coupling Hub, WE10, Bore 1-7/8" WE10H178

Tire Coupling Hub, Angular Misalignment 4 Degrees , Coupling Size WE10, Horsepower @ 100 RPM 2.3 hp, Maximum Speed 7,500 RPM, Bore Type Round Keyed, For Bushing Size Not Applicable, Maximum Torque 1,450 in-lb, Keyway Depth 1/4 in, Keyway Width 1/2 in, Hub Diameter 3.65 in, Parallel Misalignment 0.0625 in, Bore Diameter 1 7/8 in, Screw Thread Size 1/4 In.-20, Set Screw Location Over Keyway, System of Measurement Inch, Torsional Stiffness 15,800 in-lb/rad, Length through Bore 1 7/8 in
