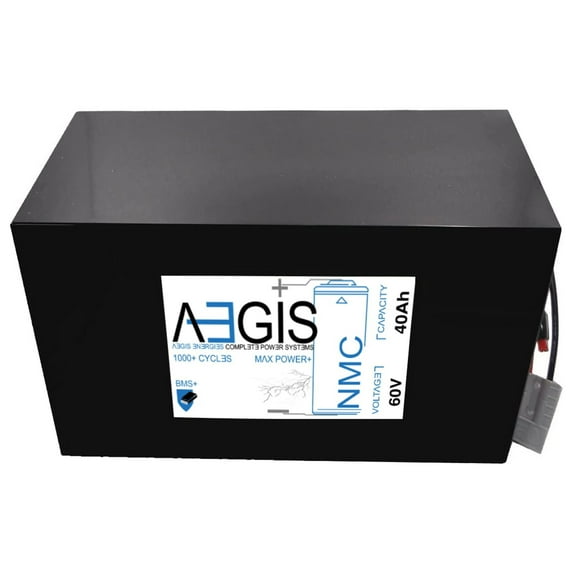

Hero image 0 of Aegis Battery 60V 40Ah Lithium Battery - NMC Deep Cycle Lithium-ion, 0 of 4

Aegis Battery 60V 40Ah Lithium Battery - NMC Deep Cycle Lithium-ion

(No ratings yet)

Key item features

Aegis Battery NMC Advantage:
Advanced NMC (Nickel Manganese Cobalt Oxide) Li-ion Chemistry superior to traditional Li-ion Batteries
All-Aspect Solution with best overall balance of features with high specific energy (150-220Wh/kg)
Ideally Suited for EV and High Energy Power Consumption Applications
Excellent Lifespan (1000-2000 Cycles Average)
US Warranty & US Support
Specifications:
Model: ABL-060040P
Battery Case: PVC Pack
Battery Chemistry: NMC (Nickel Manganese Cobalt) Lithium
Cell Type/Assembly Method: 18650 Cylindrical cells / welded
Voltage (V): 60V
Capacity (Ah): 40Ah
Energy Stored (Wh): 2400 Watt-Hours
Weight: 31.7 lbs (14.4 kg)
Dimension (L x W x H): 14.9 in x 6.6 in x 5.6 in (+/-0.1in)
Discharge Connector: SB50
Charge Connector: Anderson PP45
Cycle Life: 1000+ cycles
Normal Charged Voltage: 71.4V
Normal Charge Current: 10.0 Amps
Nominal Continuous Discharge Current: 20.0 Amps
Maximum Continuous Discharge Current: 40.0 Amps
Maximum Peak Discharge Current: 80.0 Amps
Charge Temperature: 0°C to 45°C
Discharge Temperature: -20°C to 60°C
Operating Humidity: 60±25%R.H
Storage Humidity: 60±25%R.H
Automatic Battery Protection Module/System: Low Voltage Disconnect, Over Voltage Disconnect, Short Circuit Protection, Reverse Polarity Protection, Cell Balancing.
Specifications may slightly differ depending on date of manufacture. Please check with us for exact measurements.
Compatible AC-to-DC Charger Specifications:
Input Voltage: AC110V-240V, 50/60HZ
Output Voltage: 71.4VDC
Current: 10A
Compatible Charger Model Number: CRG-06010P
Intelligent Technology:
Advanced Lithium Battery Management System (BMS) Board
Every Battery has bespoke board matching its performance parameters
Comprehensively balances charging and discharging
Internal balancing circuitry and charger circuitry inside BMS
Comprehensive protections against overcharge, over-discharge, over-voltage, over-current, short circuits, reverse polarity, thermal protection
Dramatically extends service life
Comprehensive Improvement:
Achieve full depth discharge of 100% Label Capacity
“True Lithium Capacity” guarantees capacity of purchase is capacity delivered
Reliable, repeatable full depth cycling without system life cycle degradation
NMC Systems can be fully discharged safely without impact on system performance
Multiple times usable capacity and lifespan of Lead Acid

Specs

Battery post location
Top Post
Brand
Aegis Battery
Vehicle fitment type
Universal
Model
ABL-060040P
Vehicle model
ABL-060040P
Height
5.6 in

Current price is $899.99

Price when purchased online

Out of stock

How do you want your item?

Out of stock

Report an issue with this seller

About this item

Product details

The Aegis 60V 40Ah Li-ion Battery is a state of the art rechargeable battery pack made with 18650 cells designed for 60V devices. It is perfect for e-scooters, e-bikes, solar applications, robots, and other applications that require a higher-energy density battery. The battery comes with integrated Anderson Power Pole PP45 and SB50 connectors making it a perfect drop in solution for your applications. it contains a built in battery management system (BMS) that keeps the battery running at peak performance and protects the cells for thousands of cycles, including over-charge, over-discharge, over-current, and short-circuit protection.

Aegis Battery NMC Advantage:
Advanced NMC (Nickel Manganese Cobalt Oxide) Li-ion Chemistry superior to traditional Li-ion Batteries
All-Aspect Solution with best overall balance of features with high specific energy (150-220Wh/kg)
Ideally Suited for EV and High Energy Power Consumption Applications
Excellent Lifespan (1000-2000 Cycles Average)
US Warranty & US Support
Specifications:
Model: ABL-060040P
Battery Case: PVC Pack
Battery Chemistry: NMC (Nickel Manganese Cobalt) Lithium
Cell Type/Assembly Method: 18650 Cylindrical cells / welded
Voltage (V): 60V
Capacity (Ah): 40Ah
Energy Stored (Wh): 2400 Watt-Hours
Weight: 31.7 lbs (14.4 kg)
Dimension (L x W x H): 14.9 in x 6.6 in x 5.6 in (+/-0.1in)
Discharge Connector: SB50
Charge Connector: Anderson PP45
Cycle Life: 1000+ cycles
Normal Charged Voltage: 71.4V
Normal Charge Current: 10.0 Amps
Nominal Continuous Discharge Current: 20.0 Amps
Maximum Continuous Discharge Current: 40.0 Amps
Maximum Peak Discharge Current: 80.0 Amps
Charge Temperature: 0°C to 45°C
Discharge Temperature: -20°C to 60°C
Operating Humidity: 60±25%R.H
Storage Humidity: 60±25%R.H
Automatic Battery Protection Module/System: Low Voltage Disconnect, Over Voltage Disconnect, Short Circuit Protection, Reverse Polarity Protection, Cell Balancing.
Specifications may slightly differ depending on date of manufacture. Please check with us for exact measurements.
Compatible AC-to-DC Charger Specifications:
Input Voltage: AC110V-240V, 50/60HZ
Output Voltage: 71.4VDC
Current: 10A
Compatible Charger Model Number: CRG-06010P
Intelligent Technology:
Advanced Lithium Battery Management System (BMS) Board
Every Battery has bespoke board matching its performance parameters
Comprehensively balances charging and discharging
Internal balancing circuitry and charger circuitry inside BMS
Comprehensive protections against overcharge, over-discharge, over-voltage, over-current, short circuits, reverse polarity, thermal protection
Dramatically extends service life
Comprehensive Improvement:
Achieve full depth discharge of 100% Label Capacity
“True Lithium Capacity” guarantees capacity of purchase is capacity delivered
Reliable, repeatable full depth cycling without system life cycle degradation
NMC Systems can be fully discharged safely without impact on system performance
Multiple times usable capacity and lifespan of Lead Acid
