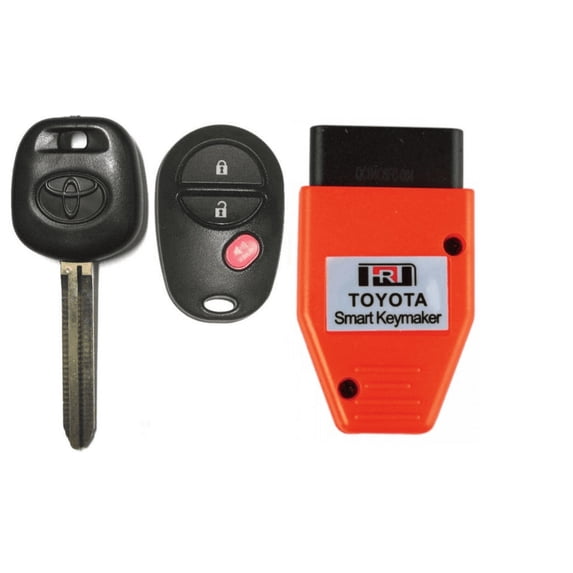

Toyota Transponder Chip Key 44D Dot + 3 Button Remote + Programming Tool VLS

Toyota Toy44D Transponder Key

Chip: 4D67 (Master)

Cross Reference: TOY44D-PT, 5910834, 89785-08020, 89785-60160

FCC ID: GQ43VT20T IC: 1470A-1T

Frequency: 315 MHz

Button: Lock, Unlock, Panic

Compatible with the following:

2004-2010 Toyota Sienna

2008-2010 Toyota Sequoia

2008-2010 Toyota Highlander

2005-2010 Toyota Tacoma

2007-2010 Toyota Tundra

Toyota / Lexus Smart Keymaker OBD Programmer

Smart and efficient. Program a transponder key in about 20 seconds! No 30-minute wait, no pin

codes. Just connect to the OBDII port and go. Simply the fastest way to program TOY44D or

proximity keys.

To program keys when all keys have been lost:

1. Using the transponder master key, switch the ignition to the "ON" position

2. Insert the tool into the OBDII port. You will hear one beep. After about 3 seconds, the tool

will beep 3 more times indicating that the vehicle has been placed into programming

mode.

3. Remove the tool and the key.

4. Perform the following steps to program the keys:

a. Close all doors

b. Insert the first master key for 5 seconds (do not turn)

c. Insert the second key for 5 seconds (do not turn)

d. Insert the valet key for 5 seconds (do not turn)

e. The programming mode should automatically end. If, for some reason, you need to

end programming mode manually, simply insert and remove the first master

key 5 times (do not turn).

To program additional keys when you have one working master key:

1. Using the working master key, switch the ignition to the "ON" position

2. Insert the tool into the OBDII port. You will hear one beep. After about 3 seconds, tool

will beep 3 more times indicating that the vehicle has been placed into programming

mode.

3. Remove the tool and the key.

4. Perform the following steps to program the keys:

a. Close all doors

b. Insert the first master key needing programming for 5 seconds (do not turn)

c. Repeat step B for each key needing programming

d. Insert and remove the original master key 5 times (do not turn) to end

the programming
