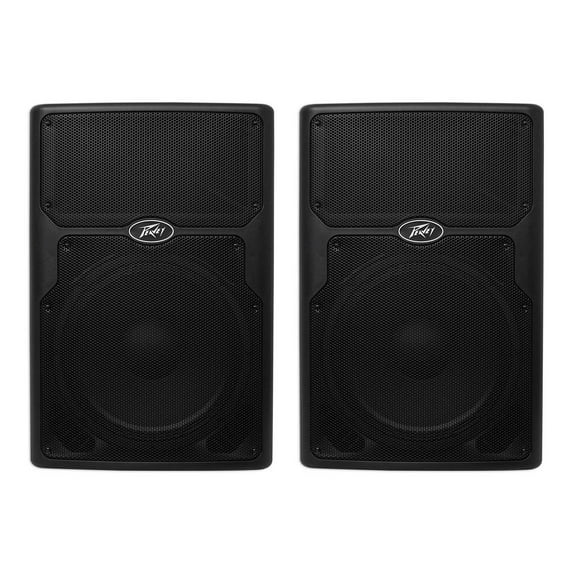

(2) Peavey PVXP15DSP 15" Powered Active DJ/PA Speakers w DSP and 128dB SPL!
Key item features
EQ Modes: The EQ modes are used to shape the tone of the sound coming out ofthe speaker. The selections are as follows:
-Music: Tuned for general music use
-EDM: Used to enhance electronic dance music
-DJ KS 1: Standalone use (no Subwoofer), Indoors
-DJ KS 2: Used with Subwoofer, Indoors
-DJ KS 3: Used with Subwoofer, Outdoors
-DJ KS 3: Used with Subwoofer, Outdoors
-Rock, Country, Hip-Hop: Optimizes the speaker for these typical genres
-Acoustic: Used to enhance acoustic performances
-Voice: Gently rolls off the extreme highs and lows to enhance spoken word
-Church: Tuned for the typical church environment
-Monitor: Optimizes the speaker’s frequency response while being used as a floormonitor
P. Save (Power Save): The power save settings are “on” and “off”. In the “off”position, the LCD is illuminated at all times. In the “on” position, the LCD isilluminated until the user stops using the controls. The LCD backlight will turnoff about 1 minute after the last on screen change. To turn the backlight backon, simply rotate the “Push-to-Select” knob.
Bright: Various conditions (like bright sun) or even the position of the speakercan sometimes make the LCD difficult to see or read. Two adjustments have beenincluded to improve the visibility of the LCD. The first is a brightnessadjustment. It varies the brightness of the illuminated characters on thescreen. Turning the adjustment clockwise makes it brighter, while turning itcounterclockwise
makes the characters dimmer.
Locate: Used to optimize the speakers response based on its location. Theselections are Pole, Floor and Wall.
Contr (Contrast): The second adjustment is the contrast. The contrast adjustmentcan be used to improve the viewing angle of the LCD. This may need to beadjusted if the speaker is overhead (like on a pole) or on the floor. You mayhave to try some experimenting with this control to improve the visibility ofthe LCD.
Treble: The treble control can be used to boost or cut the high frequencyresponse of the speaker up to +/-6dB. It can be used to brighten a dull sound orto reduce harshness.
Bass: The bass control can be used to boost or cut the low frequency response ofthe speaker up to +/-6dB. It can be used to add bass to a “thin” source or toremove boomy bass from the speakers.
System Reset: Selecting the “System Reset” returns the DSP section to thefactory settings. There is a confirmation screen to prevent accidental changes.
Features:
Peavey PVXP15DSP 15" Powered Active DJ/PA Speaker w DSP and 128dB SPL!
Two-way bi-amplified analog amp powered speaker system
Heavy-duty woofer with a 2-3/8" voice coil & 50 oz magnet
RX 14 compression driver, with 1.4" titanium diaphragm
Fan cooled for maximum reliability
Patented Quadratic Throat Waveguide™ technology, 100 by 50° coverage
Asymmetrical horn aims the sound down at the audience, not over their heads
Input is via a combo female XLR and 1/4" TRS phone jack with balanced input
A Mic/Line switch provides for two different gain settings
Thru output is via a male XLR jack and 1/4" TRS phone jack
Multiple Factory Preset EQ settings
Rugged plastic injection-molded trapezoidal enclosure
Full-coverage perforated steel grille, with powder coat finish
Pole mount molded-in for 1 3/8" diameter poles
Top, bottom and right side flying point inserts
Multiple Fly Points, Ready for Install Applications
Exclusive Quadratic Throat Waveguide Technology
Asymmetrical Quadratic Throat Waveguide horn aims its coverage 15 degrees upwardand 35 degrees downward- directing sound to the audience, not over their heads.
A.D.S.P. (Advanced Digital Signal Processing)
Dimensions (HxWxD): 28.25" x 18.9" x 18.71" (717.6mm x 4
Specs
- BrandPeavey
- ModelPVXP15DSP
