Fits Kia Rondo 2009-2010 Double DIN Aftermarket Harness Radio Install Dash Kit

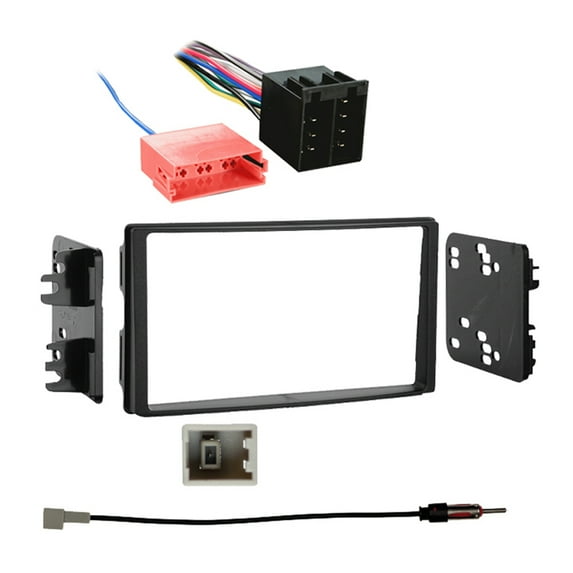

This Package Includes the Following Items:

• 1 x Metra 95-7329 Two Single DIN or Double DDIN Radio Installation Kit for 2007-Up Kia Rondo Vehicles
• 1 x Metra 70-7303 Aftermarket Radio Wiring Harness for 2009 Hyundai & Kia Vehicles
• 1 x Metra 40-KI11 Aftermarket Radio Antenna Adapter for Hyundai - Kia 2009 - 2011

NOTE - This package is designed to replace only Factory Standard Audio System. It will not work with Factory Premium Audio Sound.

Metra 95-7329 Two Single DIN or Double DDIN Radio Installation Kit for 2007-Up Kia Rondo Vehicles:

Install dash kit for Double DIN/ISO Radios

Designed and manufactured with precision tolerances, resulting in a gapless fit between the dash and the kit

Painted to match factory dash color

High-grade ABS plastic construction

Factory style texture

Kit Includes: Radio Housing Trim Plate, Radio Housing Brackets

Metra 70-7303 Aftermarket Radio Wiring Harness for 2009 Hyundai & Kia Vehicles:

Power/4-Speaker

Plugs into car harness at radio

One 16-pin plug and one 20-pin plug

Works with factory Infinity amplified systems

Compatible with select 2008-up Hyundai/Kia Vehicles

Connections:

• Yellow 12V Constant
• Red 12V Accessory
• Black - Ground
• Orange Dash Light Dimmer/Illumination
• Green Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• Gray Right Front Speaker (+)
• Gray with Black Stripe Right Front Speaker (-)
White Left Front Speaker (+)
• White with Black Stripe Left Front Speaker (-)
• Purple Right Rear Speaker (+)
• Purple with Black Stripe Right Rear Speaker (-)
• Gray Right Front Speaker (+)
• Gray with Black Stripe Right Front Speaker (-)

Metra 40-KI11 Aftermarket Radio Antenna Adapter for Hyundai - Kia 2009 - 2011

Aftermarket Radio to Antenna Adapter

Compatible with 2007-up Kia vehicles

OEM Style Adapter

:
