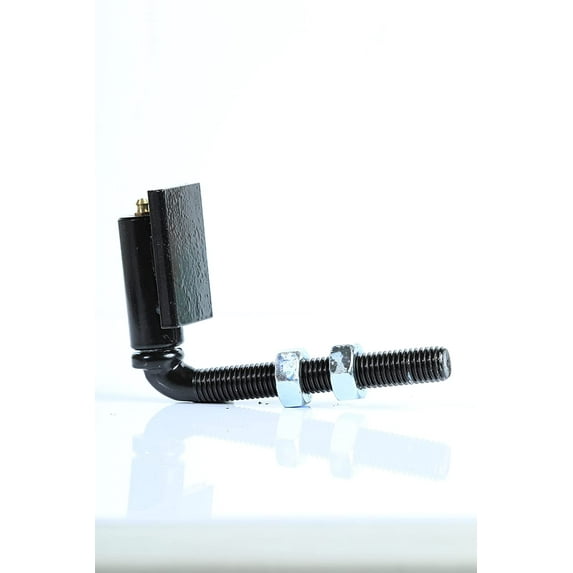

Bobco Metals 3/4" J Bolt Adjustable Barrel Hinges, 1 Piece

Made of durable steel with a black powder coating, this 3/4" adjustable barrel hinge J-Bolt provides a full range of swing for gates and doors. The total length of each hinge is 7", and the threaded arm measures 5.75". A pair of this J-Bolt hinge can hold up to 600 pounds, ideal for use in metals, concrete or wooden objects.

To Install, weld the flat back plate of the hinge to the mounting post. Then, drill a hole through the gate frame big enough for the threaded bolt. Pass the bolt through, and secure the thread with a nut. Make sure the hinge is mounted with the threaded arm on top. The minimum distance between the post and gate should be 2", to accommodate for the welding plate and barrel.
