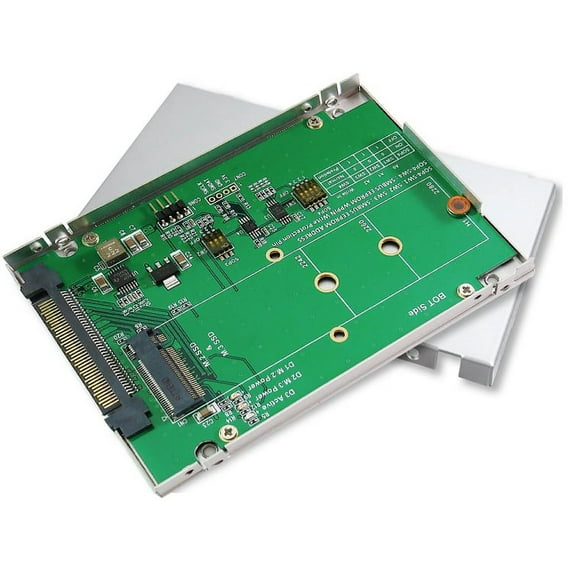

‌2.5 Inch U.2 (SFF-8639) to M.2/M.3 SSD Adapter

2.5" U.2 (SFF-8639) to M.2/M.3 SSD Adapter with SMBus Isolated & repeater with SMBus EEPROM 512K

Features :

• M. 2 NVMe to U.2(SFF-8639) convert M.3 NVMe to U.2(SFF-8639) convert
• Build in M. 2 M-key Female connector
• Build in SFF-8639 connector, pin-out defined by PCIe
• PW M synchronous buck converter Power for M. 2 SSD
• 4A maximum output current X Short circuit protection
• In-rush current suppression
• Thermal shutdown protection
• ESD HBM (Human Body Mode)/2KV
• Supports CLKREQ#, WAKE#
• Supports M. 2 / 1.8V & M.3/ 3.3V SMB_CLK, SMB_DATA Level Shift
• Supports M. 2 /1.8V & M.3/ 3.3V SMB_CLK, SMB_DATA isolated
• Builde in SMBUS EEPROM 256KB
• Supports M. 3 Dual ports, U. 2 Dual ports
• DI Green LED on indicates M. 2 NVMe SSD power ready D 2 Green LED on indicates M. 2 NVMe SSD power ready
• D 3 RED LED Blinking indicates M. 2 & M. 3 SSD active status

•M.2 NVMe to U.2(SFF-8639) convert

•M.3 NVMe to U.2(SFF-8639) convert

•Build in M.2 M-key Female connector

•Build in SFF-8639 connector, pin-out defined by PCIe

•PWM synchronous buck converter Power for M.2 SSD

•4A maximum output current

•Short circuit protection

•In-rush current suppression

•Thermal shutdown protection

•ESD HBM (Human Body Mode)/2KV

•Supports CLKREQ#, WAKE#

•Supports M.2 /1.8V & M.3/ 3.3V SMB_CLK, SMB_DATA Level Shift

•Supports M.2 /1.8V & M.3/ 3.3V SMB_CLK, SMB_DATA isolated

•Builde in SMBUS EEPROM 512KB

•Supports M.3 Dual ports, U.2 Dual ports

•D1 Green LED on indicates M.2 NVMe SSD power ready

•D2 Green LED on indicates M.2 NVMe SSD power ready

•D3 RED LED Blinking indicates M.2 & M.3 SSD active status
