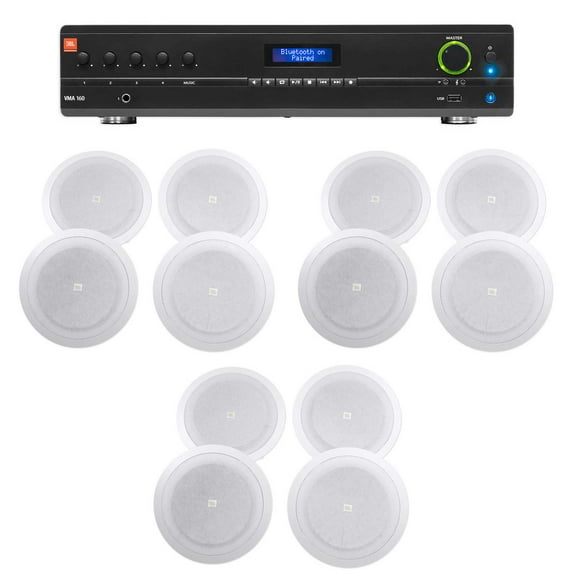

JBL VMA160 60 Watt Amplifier+(12) 8" JBL Speakers For Restaurant/Bar/Cafe
(No ratings yet)
Key item features
- Package Includes: (1) JBL VMA160 60-Watt 70 Volt 70V Mixer/Amplifier with Bluetooth 5 Channel Inputs. (3) Pairs of JBL 8128 8" Full Range Commercial 70V/100V 6w Ceiling Speakers 4 Restaurant. Features: JBL VMA160 60 Watt 70V Mixer/Amplifier with Bluetooth and 5 Channel Inputs. Max Output Power: 60 Watts. Frequency Response: 20 Hz - 20 kHz. THD (Total Harmonic Distortion): <0.5%
- Signal-to-Noise Ratio: > 76 dB. Input Impedance: Mic: 400 Ohms Line: 20 kOhms (balanced) RCA: 50 kOhms. Phantom Power: 27VDC. Crosstalk: -70 dB. Nominal AC Line Voltages: 100V, 120V, 220V, 220-240V, 50/60 Hz. Minimum Load Impedance: 4 Ohms, 80 Ohms,160 Ohms. Insertion Loss: 1 dB Maximum. Number of Inputs: 5. Number of Outputs: 1. Tone Control: Bass +/-14dB @ 50Hz; Treble +/-14dB @10kHz
- Input Sensitivity: Mic Input: 5.5mVRMS Line Input: 1.3VRMS RCA Input (stereo in): 130mVRMS. Independent bass and treble controls for each output channel. Paging Chime, and Priority Muting. Rack mounting hardware included. Product Dimensions (W x D x H): 17" x 16.3" x 3.5" inches. Product Weight: 19.4 Lbs.. Features:
- (4) JBL 8128 8" Full Range 70V/100V 6 Watt Commercial Ceiling Speakers for Restaurant/Bar/Cafe. Component: 8" Full-Range Driver. Frequency Range: 50 Hz 16 kHz. Sensitivity: 97 dB. Coverage: 90 Conical. 70V/100V Taps: 6W, 3W, 1.5W (0.75W at 70V only). Termination: Bare Wires. Clear, High-Fidelity Performance. Dog-ears for easy Blind Mount Installations
- High Sensitivity (93 dB, 1W, 1m) for Maximum Power Efficiency. 6W Transformer for use of 70V / 100V Distributed Lines. Included Accessories: Sculpted Grille. Product Dimensions (Diameter x Depth): 11.3" x 4.1" inches. Product Weight: 3.0 Lbs.
Specs
- BrandJBL
- WirelessN
Current price is USD$859.80
Price when purchased online
Out of stock
How do you want your item?
Out of stock
About this item
Product details
Package Includes:
The 8128 is a 8-inch, full-range, cost-effective loudspeaker for commercial applications. The 8128 features high-fidelity performance in an easy to install package. The system’s high sensitivity drivers deliver maximum sound levels using minimal amplifier power. With its contemporary grill design, 70V/100V taps and an open-back design, the 8100 series brings elegance and performance to basic commercial sound systems, or any application not requiring a back can for installation. Features:
- (1) JBL VMA160 60-Watt 70 Volt 70V Mixer/Amplifier with Bluetooth 5 Channel Inputs
- (3) Pairs of JBL 8128 8"" Full Range Commercial 70V/100V 6w Ceiling Speakers 4 Restaurant
Description:
The JBL VMA Series is a cost-effective line of Mixer/Amplifiers with low impedance functionality (4O, 8O) and high impedance 70V and 100V output. They are designed with convenient and flexible features to be used by commercial integrators worldwide, ideal for emerging markets. Features:- JBL VMA160 60 Watt 70V Mixer/Amplifier with Bluetooth and 5 Channel Inputs
- Max Output Power: 60 Watts
- Frequency Response: 20 Hz - 20 kHz
- THD (Total Harmonic Distortion): <0.5%
- Signal-to-Noise Ratio: > 76 dB
- Input Impedance: Mic: 400 Ohms Line: 20 kOhms (balanced) RCA: 50 kOhms
- Phantom Power: 27VDC
- Crosstalk: -70 dB
- Nominal AC Line Voltages: 100V, 120V, 220V, 220-240V, 50/60 Hz
- Minimum Load Impedance: 4 Ohms, 80 Ohms,160 Ohms
- Insertion Loss: 1 dB Maximum
- Number of Inputs: 5
- Number of Outputs: 1
- Tone Control: Bass +/-14dB @ 50Hz; Treble +/-14dB @10kHz
- Input Sensitivity: Mic Input: 5.5mVRMS Line Input: 1.3VRMS RCA Input (stereo in): 130mVRMS
- Independent bass and treble controls for each output channel
- Paging Chime, and Priority Muting
- Rack mounting hardware included
- Product Dimensions (W x D x H): 17"" x 16.3"" x 3.5"" inches
- Product Weight: 19.4 Lbs.
Video of 8128 :
Description:
8-inch, Full-Range, In-Ceiling LoudspeakerThe 8128 is a 8-inch, full-range, cost-effective loudspeaker for commercial applications. The 8128 features high-fidelity performance in an easy to install package. The system’s high sensitivity drivers deliver maximum sound levels using minimal amplifier power. With its contemporary grill design, 70V/100V taps and an open-back design, the 8100 series brings elegance and performance to basic commercial sound systems, or any application not requiring a back can for installation. Features:
- (4) JBL 8128 8"" Full Range 70V/100V 6 Watt Commercial Ceiling Speakers for Restaurant/Bar/Cafe Component: 8"" Full-Range Driver Frequency Range: 50 Hz – 16 kHz Sensitivity: 97 dB Coverage: 90° Conical 70V/100V Taps:
- Package Includes: (1) JBL VMA160 60-Watt 70 Volt 70V Mixer/Amplifier with Bluetooth 5 Channel Inputs. (3) Pairs of JBL 8128 8" Full Range Commercial 70V/100V 6w Ceiling Speakers 4 Restaurant. Features: JBL VMA160 60 Watt 70V Mixer/Amplifier with Bluetooth and 5 Channel Inputs. Max Output Power: 60 Watts. Frequency Response: 20 Hz - 20 kHz. THD (Total Harmonic Distortion): <0.5%
- Signal-to-Noise Ratio: > 76 dB. Input Impedance: Mic: 400 Ohms Line: 20 kOhms (balanced) RCA: 50 kOhms. Phantom Power: 27VDC. Crosstalk: -70 dB. Nominal AC Line Voltages: 100V, 120V, 220V, 220-240V, 50/60 Hz. Minimum Load Impedance: 4 Ohms, 80 Ohms,160 Ohms. Insertion Loss: 1 dB Maximum. Number of Inputs: 5. Number of Outputs: 1. Tone Control: Bass +/-14dB @ 50Hz; Treble +/-14dB @10kHz
- Input Sensitivity: Mic Input: 5.5mVRMS Line Input: 1.3VRMS RCA Input (stereo in): 130mVRMS. Independent bass and treble controls for each output channel. Paging Chime, and Priority Muting. Rack mounting hardware included. Product Dimensions (W x D x H): 17" x 16.3" x 3.5" inches. Product Weight: 19.4 Lbs.. Features:
- (4) JBL 8128 8" Full Range 70V/100V 6 Watt Commercial Ceiling Speakers for Restaurant/Bar/Cafe. Component: 8" Full-Range Driver. Frequency Range: 50 Hz 16 kHz. Sensitivity: 97 dB. Coverage: 90 Conical. 70V/100V Taps: 6W, 3W, 1.5W (0.75W at 70V only). Termination: Bare Wires. Clear, High-Fidelity Performance. Dog-ears for easy Blind Mount Installations
- High Sensitivity (93 dB, 1W, 1m) for Maximum Power Efficiency. 6W Transformer for use of 70V / 100V Distributed Lines. Included Accessories: Sculpted Grille. Product Dimensions (Diameter x Depth): 11.3" x 4.1" inches. Product Weight: 3.0 Lbs.
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.
Specifications
Brand
JBL
Wireless
N
Model
VMA160
Warranty
Warranty information
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
