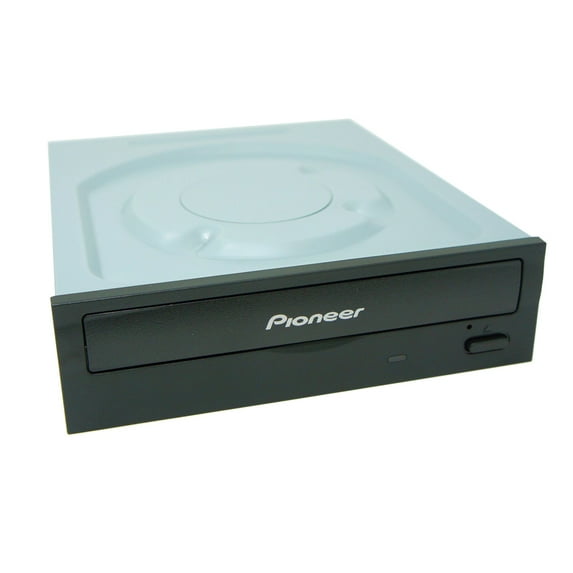

Pioneer DVR-S21WBK/PLUS Black 24x SATA Internal CD/DVD/RW DL DVD Writer Drive Burner For PC

Model#: DVR-S21WBK?PLUS

Color: Black

Packaging includes: Bare Drive X 1

Installation Instruction:

1, Turn off the power of personal; computer and remove the power cord from the AC outlet, then remove the cover of the fount panel.

2, Remove the blank panel installed on the front of the 5.25 inch slot.

3, Insert the drive into the slot.

4, When affixing is required, please refer to the instruction manual for the computer.

Please use screws with a length of 5 mm (3/16 in.) or less for mounting. Using longer screws may cause damage to the drive.

When the mounting screws are loose etc., the vibrations from disc rotation may generate a ripping noise. To prevent it, the screws should be tightened securely.

When slide rails are required, please contact your shop or the computer manufacturer.

Drive Specification:

Writing Format and Speed:

24X DVD-/+R

5X DVD-RAM

8X DVD-R/+R DL

6X DVD-RW

48X CD-R

24X CD-RW

Reading Format and Speed:

16X DVD-ROM (SL), DVD+/-R

13X DVD+RW/-RW

12X DVD-ROM (DL), DVD-R/+R DL

5X DVD-RAM

40X CD-RW

48X CD-ROM, CD-R

Buffer Memory Size: 0.5 M Bytes

ATA Interface: Serial ATA Gen.1

Mounting: Horizontal and Vertical Orientation

Support Disc Diameter: 12 cm or 8 cm

Dimension: W 146mm x H 41.3mm x D 171mm

Net Weight: 0.61 Kg

System requirement:OS: Windows 10 / 8.1 / 7 / Vista / XP

CPU: Pentium IV 3.2 GHz or above

Memory: 512 MB or above

HDD: 20 GB or above
