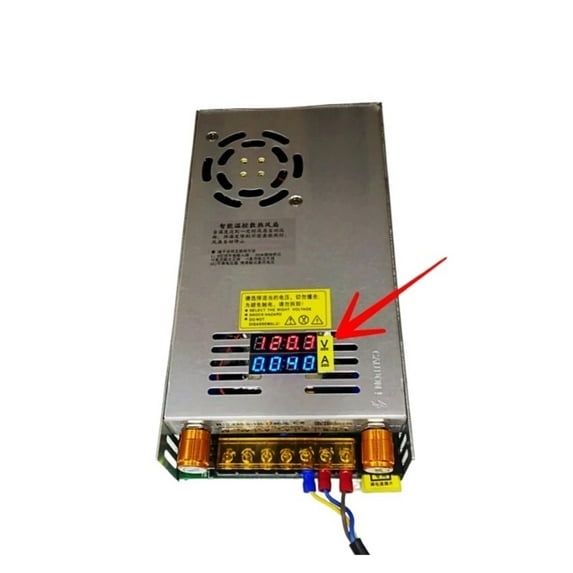

480W Output 0-5V 12V 24V 36V 48V 60v 80V 120v 160V Adjustable DC Stabilization Digital Switching Power Supply
(No ratings yet)
480W Output 0-5V 12V 24V 36V 48V 60v 80V 120v 160V Adjustable DC Stabilization Digital Switching Power Supply480W Output 0 5V 12V 24V 36V 48V 60v 80V 120v 160V Adjustable DC Stabilization Digital Switching Power Supply
Compatible Models:0-36V 0-15A-Out of stock
Compatible Devices:1-Out of stock
Key item features
- Input AC 480W output 0-24V 36V 48V 60v 80V 120v Adjustable DC stabilization Digital switching power supply
- To ensure the lifetime of the power supply, pls don't use full load when you use it. We recommend the use power should be 80% of the rated power.For example: the label of the power supply is 500W, use power should be : 500W*80%=400W
- Specifictation:
- Input : 110/ac selected by switch
- Output power limiting output ran limiting output current ran Max current
- 480W 0-12V 0-40A 40A
- 480W 0-24V 0-20A 20A
- 480W 0-36V 0-15A 15A
- 480W 0-48V 0-10A 10A
- 480W 0-60V 0-8A 8A
- 480W 0-80V 0-6A 6A
- 480W 0-120V 0-4A 4A
- 480W 0-160V 0-3A 3A
- 480W 0- 0-2.2A 2.2A
- Feature&Advantas
- With short-circuit and overload protection
- Compact size,light weight
- 100% full-load burn-in test
- Install with EMI filter,minimum wave
- Operational use
- (How to limit current) to adjust current?
- 1. Operate in the case of power failure, pull the small pull switch in the lower left corner to the current regulating ar
- 2. Pull out (dedicated current regulating insert) to the 2nd and 3rd ports of the wiring port, loosen the port screw with a screwdriver, and tighten with a screwdriver (at this time, connect to the listed power), and then connect The of the meter shows 0.00V, and the current shows the current current parameter. At this time, the power supply will emit a small current.
- 3. On the right side (adjust current knob), you can adjust the desired current limit parameter, and display the current parameter synchronously with the digital display. 0-21A/0-16A/0-11A/0-6.5A can be adjusted in the whole process.
- 4. Remove the (special adjustment current ) and insert it back into the original insert card holder. After removing the digital display, the is about 0.90V, and the current is 0.00A.
- 5. Pull the pull switch in the lower left corner to the right to open the "open (use)" position.
- 6. The current power supply is in the parameter value of the current limit. The power supply is adjusted to a few V (the digital display shows the output in real time), the current does not chan, and the current reaches the current limit of 95% of the current limiting parameter. Overload protection
- 7. The current parameter displayed by the digital display at this time is the current value of the device load, and the load current is monitored in real time.
- When the load device is connected, the current value can be adjusted directly in real time. The maximum current value is the maximum current value of the load device. If the current adjustment knob clockwise exceeds the maximum current value of the device, the digital current value will not last. Real-time synchronized digital display, showing only the maximum current value of the device.
- If there is no need for current limiting, use the neral equipment, without the above operation, pull the pull switch in the lower left corner to the "open (use)" position, and turn the (current adjustment knob) clockwise to the top. The maximum current limit at this time is 21A/16A/11A/6.5A/4A, at this time the power supply parameter is the output 0-24V21A/0-16A/0-48V11A/0-36V15A/0-80V6.5A/0-120V4A, which is equal to a 0-24V20A /0-36V15A/0-48V10A/0-80V6A/0-120V4A switching power supply
- Uses: Mainly used for various battery charging, DC equipment, DC motor stepless speed regulation, LED stepless dimming, chemical electroplating speed regulation, scientific research test, student experiment, etc., and a wide ran of uses.
- Special attention: If using inductive load such as motor or fan, please pay attention to the maximum starting current parameter of the motor. This parameter must not be higher than the maximum operating current of the power supply. Otherwise, the power supply may be damad. You should select a higher current power supply or soften the motor. The protection circuit is activated to absorb the inrush current.
- Power ) X current = power
- Terminal description and wiring method
- L, N AC input terminal FG ground mark V+ DC output positive terminal
- V-DC output negative terminal ADJ adjustable potentiometer Fine-tuning output DC
- full input
- Miniaturization
- Protection function Short circuit / overload / over
- 100% full load aging test
- Input & Frequency Ran----/AC/47-63Hz
- Start sur current ---------------20A@120VAC (cold start)
- Output adjustment ran --------------- ±100% (rated output )
- Overload protection -------------------105%~200% (rated load), self-recovery
- Over protection -------------------115%~135% (rated output )
- Short circuit protection ------------------- self-recovery
- Output start time ---------------2S@120VAC 1.0S@230VAC
- Output hold time ---------------10
Specs
- BrandKaspar Wire Works
- Has written warrantyNo
Current price is USD$149.78
Price when purchased online
Out of stock
How do you want your item?
Out of stock
About this item
Product details
Low price and high reliability
105 degree output capacitor
Universal AC input 110ACslected by switch
High efficiency and low operation temperature
Soft-start current can reduce the AC input impact effectively
- Input AC 480W output 0-24V 36V 48V 60v 80V 120v Adjustable DC stabilization Digital switching power supply
- To ensure the lifetime of the power supply, pls don't use full load when you use it. We recommend the use power should be 80% of the rated power.For example: the label of the power supply is 500W, use power should be : 500W*80%=400W
- Specifictation:
- Input : 110/ac selected by switch
- Output power limiting output ran limiting output current ran Max current
- 480W 0-12V 0-40A 40A
- 480W 0-24V 0-20A 20A
- 480W 0-36V 0-15A 15A
- 480W 0-48V 0-10A 10A
- 480W 0-60V 0-8A 8A
- 480W 0-80V 0-6A 6A
- 480W 0-120V 0-4A 4A
- 480W 0-160V 0-3A 3A
- 480W 0- 0-2.2A 2.2A
- Feature&Advantas
- With short-circuit and overload protection
- Compact size,light weight
- 100% full-load burn-in test
- Install with EMI filter,minimum wave
- Operational use
- (How to limit current) to adjust current?
- 1. Operate in the case of power failure, pull the small pull switch in the lower left corner to the current regulating ar
- 2. Pull out (dedicated current regulating insert) to the 2nd and 3rd ports of the wiring port, loosen the port screw with a screwdriver, and tighten with a screwdriver (at this time, connect to the listed power), and then connect The of the meter shows 0.00V, and the current shows the current current parameter. At this time, the power supply will emit a small current.
- 3. On the right side (adjust current knob), you can adjust the desired current limit parameter, and display the current parameter synchronously with the digital display. 0-21A/0-16A/0-11A/0-6.5A can be adjusted in the whole process.
- 4. Remove the (special adjustment current ) and insert it back into the original insert card holder. After removing the digital display, the is about 0.90V, and the current is 0.00A.
- 5. Pull the pull switch in the lower left corner to the right to open the "open (use)" position.
- 6. The current power supply is in the parameter value of the current limit. The power supply is adjusted to a few V (the digital display shows the output in real time), the current does not chan, and the current reaches the current limit of 95% of the current limiting parameter. Overload protection
- 7. The current parameter displayed by the digital display at this time is the current value of the device load, and the load current is monitored in real time.
- When the load device is connected, the current value can be adjusted directly in real time. The maximum current value is the maximum current value of the load device. If the current adjustment knob clockwise exceeds the maximum current value of the device, the digital current value will not last. Real-time synchronized digital display, showing only the maximum current value of the device.
- If there is no need for current limiting, use the neral equipment, without the above operation, pull the pull switch in the lower left corner to the "open (use)" position, and turn the (current adjustment knob) clockwise to the top. The maximum current limit at this time is 21A/16A/11A/6.5A/4A, at this time the power supply parameter is the output 0-24V21A/0-16A/0-48V11A/0-36V15A/0-80V6.5A/0-120V4A, which is equal to a 0-24V20A /0-36V15A/0-48V10A/0-80V6A/0-120V4A switching power supply
- Uses: Mainly used for various battery charging, DC equipment, DC motor stepless speed regulation, LED stepless dimming, chemical electroplating speed regulation, scientific research test, student experiment, etc., and a wide ran of uses.
- Special attention: If using inductive load such as motor or fan, please pay attention to the maximum starting current parameter of the motor. This parameter must not be higher than the maximum operating current of the power supply. Otherwise, the power supply may be damad. You should select a higher current power supply or soften the motor. The protection circuit is activated to absorb the inrush current.
- Power ) X current = power
- Terminal description and wiring method
- L, N AC input terminal FG ground mark V+ DC output positive terminal
- V-DC output negative terminal ADJ adjustable potentiometer Fine-tuning output DC
- full input
- Miniaturization
- Protection function Short circuit / overload / over
- 100% full load aging test
- Input & Frequency Ran----/AC/47-63Hz
- Start sur current ---------------20A@120VAC (cold start)
- Output adjustment ran --------------- ±100% (rated output )
- Overload protection -------------------105%~200% (rated load), self-recovery
- Over protection -------------------115%~135% (rated output )
- Short circuit protection ------------------- self-recovery
- Output start time ---------------2S@120VAC 1.0S@230VAC
- Output hold time ---------------10
