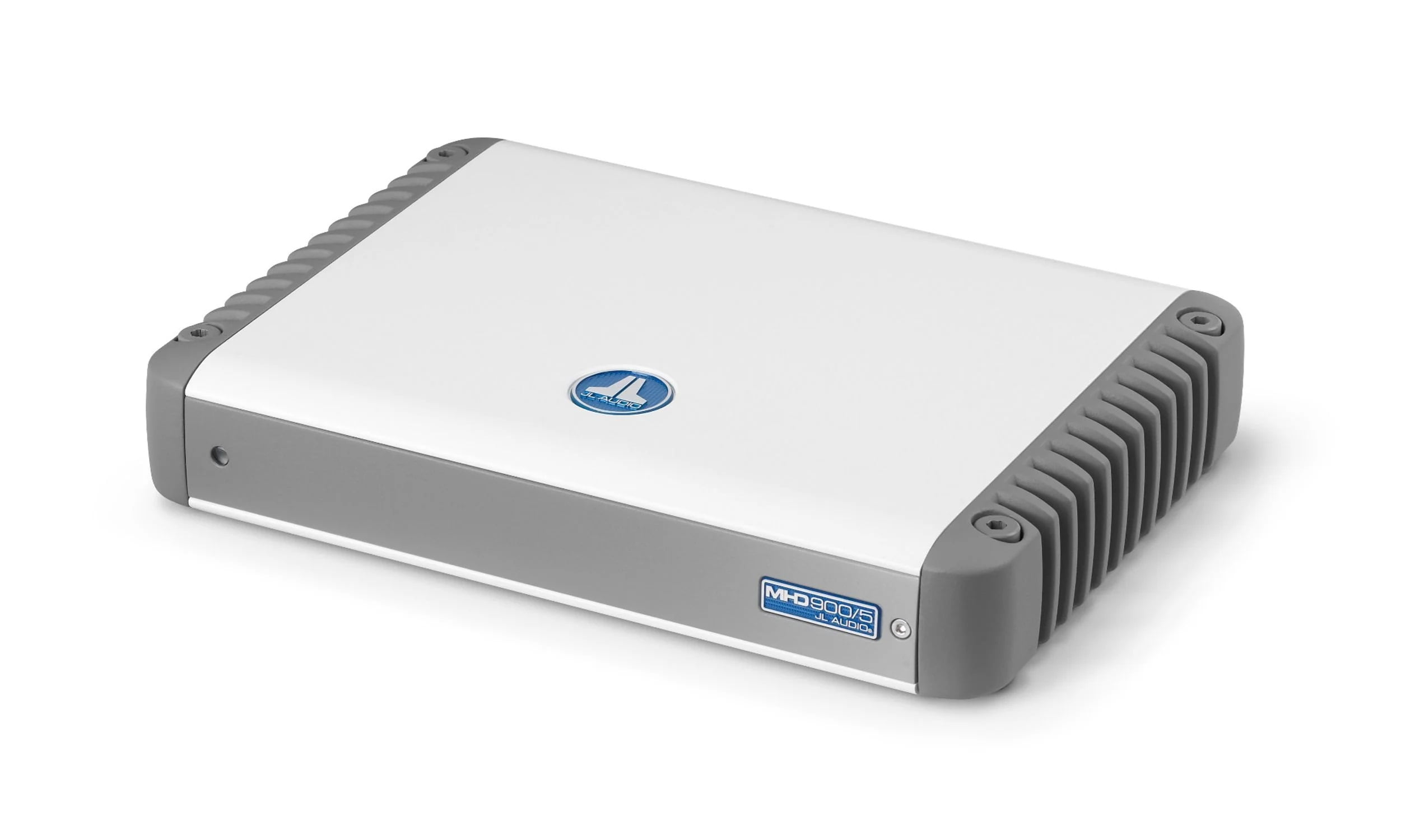

JL Audio MHD900/5: 5 Ch. Class D Full-Range Marine System Amplifier 900 W

Sorry, this item is out of stock

Browse similar items
JL Audio MHD900/5: 5 Ch. Class D Full-Range Marine System Amplifier 900 W
JL Audio MHD900/5: 5 Ch. Class D Full-Range Marine System Amplifier 900 W
Hero image 0 of JL Audio MHD900/5: 5 Ch. Class D Full-Range Marine System Amplifier 900 W, 0 of 6

JL Audio MHD900/5: 5 Ch. Class D Full-Range Marine System Amplifier 900 W

(No ratings yet)

Key item features

  • Rated Continuous (RMS) Power @ 14.4v

    Main Channels @ 4 Ω 100 W RMS x 4
    Main Channels @ 3 Ω 75 W RMS x 4
    Main Channels @ 2 Ω 75 W RMS x 4
    Main Channels @ 1.5 Ω 75 W RMS x 4
    Main Channels - Bridged @ 8 Ω 200 W RMS x 2
    Main Channels - Bridged @ 4 Ω 150 W RMS x 2
    Subwoofer Channel @ 4 Ω 500 W RMS x 1
    Subwoofer Channel @ 3 Ω 500 W RMS x 1
    Subwoofer Channel @ 2 Ω 500 W RMS x 1
    Subwoofer Channel @ 1.5 Ω 500 W RMS x 1

  • Rated Continuous (RMS) Power @ 12.5 V

    Main Channels @ 4 Ω 100 W RMS x 4
    Main Channels @ 3 Ω 75 W RMS x 4
    Main Channels @ 2 Ω 75 W RMS x 4
    Main Channels @ 1.5 Ω 75 W RMS x 4
    Main Channels - Bridged @ 8 Ω 200 W RMS x 2
    Main Channels - Bridged @ 4 Ω 150 W RMS x 2
    Subwoofer Channel @ 4 Ω 500 W RMS x 1
    Subwoofer Channel @ 3 Ω 500 W RMS x 1
    Subwoofer Channel @ 2 Ω 500 W RMS x 1
    Subwoofer Channel @ 1.5 Ω 500 W RMS x 1

  • General Specifications

    Frequency Response (Main Channels) 12 Hz - 28 kHz (+0, -1dB)
    Frequency Response (Subwoofer Channel) 12 Hz - 10 kHz (+0, -1dB)
    S/N Ratio, referred to highest rated power (Main Channels) >108.5 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
    S/N Ratio, referred to 1 W (Main Channels) >88.2 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
    Damping Factor @ 4 Ω >400 / 50 Hz
    Damping Factor @ 2 Ω >200 / 50 Hz
    THD+N @ Rated Power (Main Channels) <0.03% @ 4 Ω
    THD+N @ Rated Power (Subwoofer Channel) <0.05% @ 4 Ω
    Input Voltage Range @ RCA Inputs Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
    Min.Copper Power / Ground Wire Gauge Accepts up to 4 AWG wire
    Fuse Rating 60 A (AFS, AGU or MaxiFuseâ„¢)
  •

    Signal Processing

    Filter Mode(s): Channels 1 & 2 (front) High-Pass only
    Filter Slope(s): Channels 1 & 2 (front) 12/24 dB/octave
    Filter Frequency Range: Channels 1 & 2 (front) 50 Hz - 500 Hz
    Filter Mode(s): Channels 3 & 4 (rear) High-Pass only
    Filter Slope(s): Channels 3 & 4 (rear) 12/24 dB/octave
    Filter Frequency Range: Channels 3 & 4 50 Hz - 500 Hz
    Filter Mode(s): Subwoofer Channel Low-Pass only
    Filter Slope(s): Subwoofer Channel 12/24 dB/octave
    Filter Frequency Range: Subwoofer Channel 50 Hz - 500 Hz
    Detented, Calibrated Filter Freq. Potentiometers Yes
    Filter Defeat Function Yes
    Infrasonic Filter: Subwoofer Channel 30 Hz, Defeatable
    Remote Level Control Optional (HD-RLC)
    Remote Level Modes Sub Ch. only
    Channel Input Mode Switch Yes (2/4/6 ch.)
