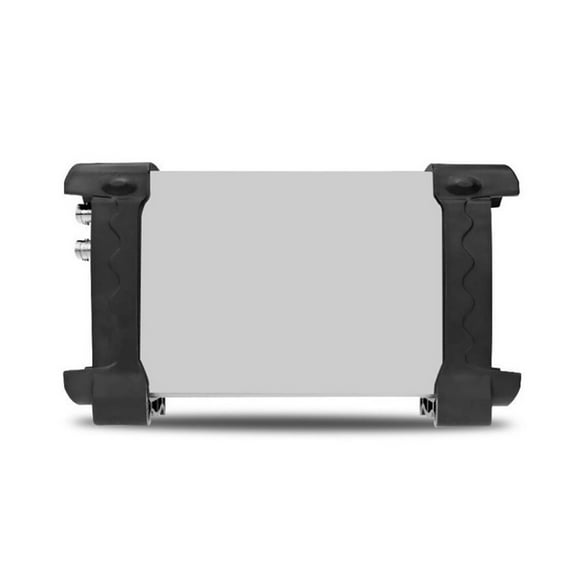

Hero image 0 of 6052BE Digital Multimeter Oscilloscope Handheld Portable PC Logic Analyzer Tester 2-Channel USB Virtual Oscilloscope, 0 of 6
Eugene Color

6052BE Digital Multimeter Oscilloscope Handheld Portable PC Logic Analyzer Tester 2-Channel USB Virtual Oscilloscope

(No ratings yet)

Key item features

  • 1.Characteristic
  • Excellent industrial design-the same anodised aluminium casing as which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.
  • Standard USBXI TM interface, easily inserts into USBXI TM housing to make up a combination instrument.
  • USB2.0 interface, no external power source required, easy to use.
  • Be suitable for notebook computer, product line maintenance,be used easily on business.
  • Dimensions (mm):205(L) x120(W) x35(H), be carried easily.
  • High performance, 150MS/s real-time sampling, 50MHz Bandwidth,
  • 23 measurement functions,be suitable for technical application.
  • Waveform average, persistence, intensity,invert,addition, subtraction, multiplication, division,X-Y plot.
  • Second Design
  • Supply DEMO code(VC,CVI,VB,LABVIEW) and technical support.
  • Specification:
  • 6000BE Series
  • Bandwidth: 20MHz-200MHz; Sample Rate: 250MSa/s;
  • Excellent industrial design-the same anodised aluminium casing as I, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.
  • Standard USBXI (TM) interface, easyly inserts into USBXI (TM) housing to make up a combination instrument.
  • Channel
  • 2 Channels
  • Bandwidth
  • 20MHz
  • 50MHz
  • 80MHz
  • 100MHz
  • 200MHz
  • Input Impedance
  • 1M 25pF
  • Max. Sample rate
  • 48MS/s
  • 150MS/s
  • 250MS/s
  • 250MS/s
  • 250MS/s
  • Coupling
  • DC
  • AC/DC/GND
  • Vertical resolution
  • 8Bit
  • Gain range
  • 10mV-5V, 9Steps
  • DC accuracy
  • ±3%
  • Timebase range
  • 4ns-5ks
  • 4ns-1h, 38 Steps
  • Vertical adjustable
  • Yes
  • Input protection
  • Diode clamping
  • X-Y
  • Yes
  • EXT. input
  • No
  • Yes
  • Trigger Mode
  • Auto, Normal and Single
  • Trigger Slope
  • +/-
  • Trigger level adjustable
  • Yes
  • Trigger Type
  • Rising edge, falling edge
  • Trigger Source
  • CH1, CH2
  • CH1, CH2, EXT
  • Pre/Post trigger
  • 0-100%
  • Buffer size
  • 1M
  • 10K-64KB/Channel
  • Sampling selection
  • Yes
  • Waveform
  • port/line, waveform average, persistence, intensity
  • Network
  • Open/Close
  • Vertical mode
  • CH1, CH2, Dual, ADD
  • Cursor measurement
  • Yes
  • Math
  • FFT, addition, subtraction, multiplication, division.
  • Cursor
  • Frequency, Voltage
  • Accessories
  • S/W CD, probes, manual, USB cord
