Hero image 0 of DY517A Digital Manifold Gauge Meter Refrigerant HVAC Vacuum Double Pressure Leak Temperature Tester Cold Storage, 0 of 6

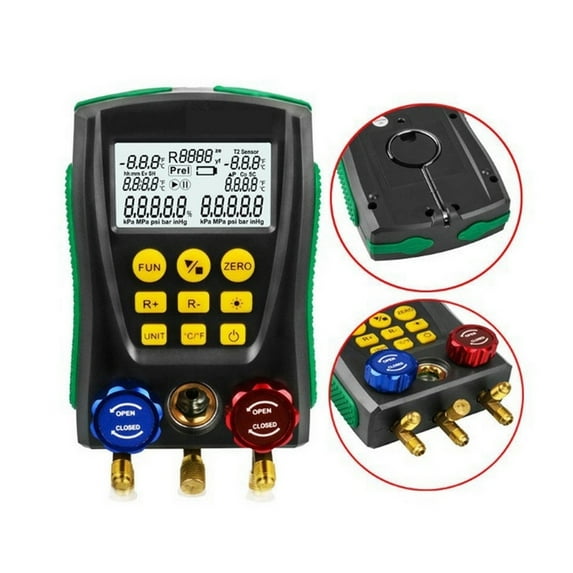

DY517A Digital Manifold Gauge Meter Refrigerant HVAC Vacuum Double Pressure Leak Temperature Tester Cold Storage
(No ratings yet)
Key item features
- DY517A Pressure Gauge Refrigeration Digital Vacuum Pressure Manifold Tester Leakage Monitor Detector
- Description:
- The intelligent electronic refrigerant group instrument is an auxiliary instrument for the installation, testing and maintenance of refrigeration equipment such as air conditioners and cold storage. The instrument has double pressure test, dual temperature test (need test clip,not include), digital readout, multi-unit switching, multi-mode function and built-in refrigerant database. The instrument uses high-strength engineering plastics and flexible non-slip silicone design, the whole machine is solid and comfortable to hold. Built-in 32-bit digital processing unit and high-precision data acquisition unit, high data and stability. Large-size liquid crystal, LCD backlight support, data clear and easy to read, convenient light operation. Long-life valve switch, 1/4-inch standard interface design to ensure that the instrument's durability and versatility.
- The instrument can measure double pressure (gauge pressure) at the same time, as well as dual temperature measurement (need test clip,not include), with automatic multi-unit pressure conversion, automatic conversion of temperature Celsius / Fahrenheit, to facilitate different needs. Built-in 89 kinds of refrigerant pressure-evaporation temperature database, also calculate the subcooling superheat, to facilitate direct reading of operating process data. Also it tests percentage of vacuum measurement; pressure leak measurement, leak time speed record. It is deserved to have this multi-functional, accurate and simply operated digital manifold let you do the job right.
- Feature:
- EC/EN61010-1 safety standards for design and production.
- 1) The pressure measured by the digtal manifold pressure tester is gauge pressure.
- 2) Pressure testing ranges from -101Kpa to 6Mpa (-0.1bar to 60bar).
- 3) The limit pressure is 10 Mpa (100 bar).
- 4) The maximum operating pressure of standard hose is 600 PSI ( approximate 4.13 Mpa, 41.3 bar ). The limit pressure is 3000 PSI approximate 20.68 Mpa, 206.8 bar ).
- 5) Please confirm the rated pressure value of the tested equipment before testing. Do not use it if it exceeds the range of the instrument. Also for DY517A, if the packed
- hoses does not match the pressure requirement, you can use suitable replacements for testing.
- 6) Do not use and store the instrument in high temperature, high humidity, flammable, explosive and strong electromagnetic fields.
- 7) Please do not change the instrument internal circuit, to avoid any damage of the instrument or danger occurring.
- 8) Please wear qualified protective equipment to protect user during testing.
- 9) Please use the instrument in a well-ventilated environment to prevent inhalation of toxic gases.
- Specification:
- Dimensions: 170*110*50mm/6.69*4.33*1.97"
- Weight: 950g
- Pressure test: gauge pressure
- Pressure test unit: Kpa; Mpa; bar; inHg; PSI.
- Pressure test range: 0 Kpa~6000 Kpa
- Pressure test resolution: 1 Kpa
- Pressure test accuracy: +/- 0.5 %(FS)+ 5dgt
- Pressure overload limit: 10000 Kpa (10 Mpa; 100 bar;)
- Vacuum test: relative vacuum
- Vacuum test unit: Kpa; Mpa; bar; inHg; PSI.
- Vacuum test range: -101 Kpa ~0 Kpa
- Vacuum test resolution: 1 Kpa
- Temperature test unit: °C (Celsius), °F (Fahrenheit)
- Temperature test range: -40°C~150°C (-40°F~302°F)
- Temperature test resolution:
- 0.1°C (-40°C~99.9°C), 1°C (100°C~150°C)
- 0.1°F (-40°F~99.9°F), 1°F (100°F~302°F)
- Temperature test accuracy: +/- 0.5 °C + 2dgt +/- 0.9 °F + 2dgt
- Power Supply: 4* AA Battery (not include)
- Note:
- 1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
- 2. Please allow slight measuring deviation due to manual measurement.
- Packages:
- 1 X Refrigerant Meter
- 2 X Temperature Clamps
- 3 X Test Tubes
- 1 X English Manual
Specs
- DisplayLCD
- BrandEugene Color
- Power typeBattery
- MaterialEngineering Plastics
- Size170*110*50mm
- Has written warrantyNo
Current price is USD$272.59
Price when purchased online
- Free shipping
Free 30-day returns
How do you want your item?
Ships to
Arrives between May 22 - May 29
|
Sold and shipped by VigorMetric
3.0526315789473686 stars out of 5, based on 19 seller reviews(3.1)19 seller reviews
Free 30-day returns
About this item
Product details
The instrument has double pressure test, dual temperature test , digital readout, multi-unit switching,multi-mode function and built-in refrigerant database.
The instrument uses high-strength engineering plastics and flexible non-slip silicone design,the whole machine is solid and comfortable to hold.
Built-in 32-bit digital processing unit and high-precision data acquisition unit, high data and stability.
Large-size liquid crystal, LCD backlight support, data clear and easy to read, convenient light operation.
Long-life valve switch, 1/4-inch standard interface design to ensure that the instrument's durability and versatility.
- DY517A Pressure Gauge Refrigeration Digital Vacuum Pressure Manifold Tester Leakage Monitor Detector
- Description:
- The intelligent electronic refrigerant group instrument is an auxiliary instrument for the installation, testing and maintenance of refrigeration equipment such as air conditioners and cold storage. The instrument has double pressure test, dual temperature test (need test clip,not include), digital readout, multi-unit switching, multi-mode function and built-in refrigerant database. The instrument uses high-strength engineering plastics and flexible non-slip silicone design, the whole machine is solid and comfortable to hold. Built-in 32-bit digital processing unit and high-precision data acquisition unit, high data and stability. Large-size liquid crystal, LCD backlight support, data clear and easy to read, convenient light operation. Long-life valve switch, 1/4-inch standard interface design to ensure that the instrument's durability and versatility.
- The instrument can measure double pressure (gauge pressure) at the same time, as well as dual temperature measurement (need test clip,not include), with automatic multi-unit pressure conversion, automatic conversion of temperature Celsius / Fahrenheit, to facilitate different needs. Built-in 89 kinds of refrigerant pressure-evaporation temperature database, also calculate the subcooling superheat, to facilitate direct reading of operating process data. Also it tests percentage of vacuum measurement; pressure leak measurement, leak time speed record. It is deserved to have this multi-functional, accurate and simply operated digital manifold let you do the job right.
- Feature:
- EC/EN61010-1 safety standards for design and production.
- 1) The pressure measured by the digtal manifold pressure tester is gauge pressure.
- 2) Pressure testing ranges from -101Kpa to 6Mpa (-0.1bar to 60bar).
- 3) The limit pressure is 10 Mpa (100 bar).
- 4) The maximum operating pressure of standard hose is 600 PSI ( approximate 4.13 Mpa, 41.3 bar ). The limit pressure is 3000 PSI approximate 20.68 Mpa, 206.8 bar ).
- 5) Please confirm the rated pressure value of the tested equipment before testing. Do not use it if it exceeds the range of the instrument. Also for DY517A, if the packed
- hoses does not match the pressure requirement, you can use suitable replacements for testing.
- 6) Do not use and store the instrument in high temperature, high humidity, flammable, explosive and strong electromagnetic fields.
- 7) Please do not change the instrument internal circuit, to avoid any damage of the instrument or danger occurring.
- 8) Please wear qualified protective equipment to protect user during testing.
- 9) Please use the instrument in a well-ventilated environment to prevent inhalation of toxic gases.
- Specification:
- Dimensions: 170*110*50mm/6.69*4.33*1.97"
- Weight: 950g
- Pressure test: gauge pressure
- Pressure test unit: Kpa; Mpa; bar; inHg; PSI.
- Pressure test range: 0 Kpa~6000 Kpa
- Pressure test resolution: 1 Kpa
- Pressure test accuracy: +/- 0.5 %(FS)+ 5dgt
- Pressure overload limit: 10000 Kpa (10 Mpa; 100 bar;)
- Vacuum test: relative vacuum
- Vacuum test unit: Kpa; Mpa; bar; inHg; PSI.
- Vacuum test range: -101 Kpa ~0 Kpa
- Vacuum test resolution: 1 Kpa
- Temperature test unit: °C (Celsius), °F (Fahrenheit)
- Temperature test range: -40°C~150°C (-40°F~302°F)
- Temperature test resolution:
- 0.1°C (-40°C~99.9°C), 1°C (100°C~150°C)
- 0.1°F (-40°F~99.9°F), 1°F (100°F~302°F)
- Temperature test accuracy: +/- 0.5 °C + 2dgt +/- 0.9 °F + 2dgt
- Power Supply: 4* AA Battery (not include)
- Note:
- 1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
- 2. Please allow slight measuring deviation due to manual measurement.
- Packages:
- 1 X Refrigerant Meter
- 2 X Temperature Clamps
- 3 X Test Tubes
- 1 X English Manual
