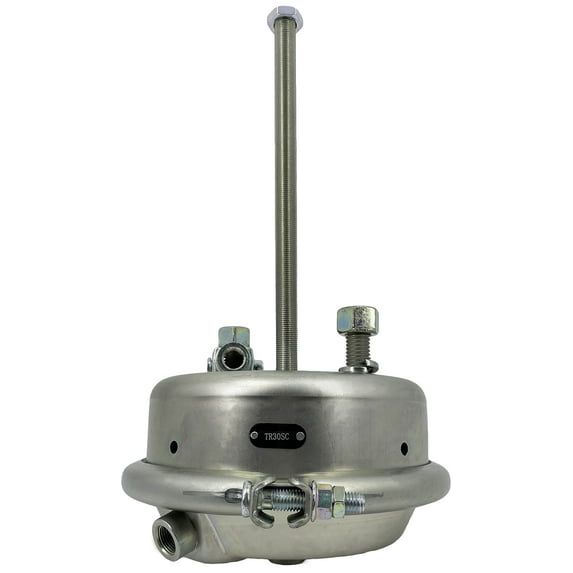

Torque Type 30 Service Brake Chamber 2.5" Stroke for semi Truck Trailer (Replaces Haldex SC30 3000001 53000001 MA36300) (TR30SC)

(No ratings yet)

Key item features

Service Brake: This is a Torque Type 30 Service Brake Chamber, model TR30SC, designed for semi-truck trailers with a 2.5" stroke.
Direct Replacement: It directly replaces Haldex SC30, 3000001, 53000001, and MA36300 brake chambers.
Robust Construction: Features a powder-coated steel pressure housing with resistance-welded air ports and a sturdy, powder-coated service housing with a flat bottom made from 10-gauge steel.
Durable Diaphragm: Equipped with a world-class diaphragm made from a high-quality rubber compound, offering resistance to both heat and cold.
Key Dimensions: Specifications include a 2-1/2" available stroke, 3/8"-18 NPTF air port threads, a 10" pushrod length, and a maximum air pressure of 150 psi.
Integrated Features: Includes a self-piloting dust shield and 5/8"-18 UNF pushrod threads, with the air port positioned at 90 degrees.

Generated by AI

Specs

Manufacturer part number
TR30SC
Vehicle model
TR30SC
Vehicle mount location
Rear
Vehicle fitment type
Specific
Brand
Torque
Automotive specialty part type
Air Brake Chamber

Current price is $44.99

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Columbus, 43215

Arrives by Thu, May 7

Sold and shipped by AftermarketUS

4.75 stars out of 5, based on 24 seller reviews(4.8)

Report an issue with this seller

Free 30-day returns

About this item

Product details

- High-Quality Torque Air Brake Chamber Service Type 30
- Steel Pressure Housing; Powder coated with resistance welded airports
- World Class Diaphragm; High-quality rubber compound, resistant to heat and cold
- Sturdy Service Housing; Powder coated for corrosion resistance; Flat bottom with 10 gauge steel
- Self-piloting Dust Shield

Replaces

Haldex: SC30, 3000001, 53000001, MA36300

Specifications

Actuator Type Size	: 30
Stroke Type	: Standard
Available Stroke	: 2-1/2", 64mm
AirPort Threads	: 3/8"-18 NPTF
Length from mounting bracket to the end of Spring Housing	: 3-11/16", 94mm
Dimension at Service Clampband	: 10-3/16", 259mm
Stud Spacing with 5/8-11 UNC studs	: 4-3/4", 120.7mm
Pushrod Length from the face of Service Housing	: 10"
Pushrod threads	: 5/8"-18 UNF
AirPort position	: 90°
Service Clampband position	: 0°
Maximum Air Pressure	: 150 psi
Weight	: 10.3 lbs. , 4.7 kg.

Model Name : TR30SC
Manufacturer : Torque
TYPE - Air Brake Chamber Service Type 30 T30
REPLACEMENT - Haldex SC30 3000001 53000001 MA36300
SPECS - Actuator Type Size: 30 // Stroke Type: Standard // Available Stroke: 2-1/2" // Air Port Threads: 3/8"-18 NPTF // Length from mounting bracket to end of Spring Housing: 3-11/16" // Dimension at Service Clampband: 10-3/16" // Stud Spacing with 5/8-11 UNC studs: 4-3/4" Pushrod Length from face of Service Housing: 10" // Pushrod threads:5/8"-18 UNF, Air Port position: 90 degree, Maximum Air Pressure: 150 psi // Weight: 10.3 lbs.
FEATURES - Steel Pressure Housing; Powder coated with resistance welded air ports // World Class Diaphragm; High quality rubber compound, resistant to heat and cold // Sturdy Service Housing; Powder coated for corrosion resistance; Flat bottom with 10 gauge steel // Self-piloting Dust Shield
WARRANTY - 1-Year Unlimited Mile Warranty - includes assurances about the quality of the item, as well as a promise to provide replacement if something goes wrong within a set amount of time.
Color : C) 1 Pack
Size : 1 pack
Manufacturer Part Number : TR30SC
