Hero image 0 of 7.5 HP Air Compressor Motor Single Phase Electric Motor 3450RPM 208V-230V 2Pole 1-1/8"Shaft Diameter CW/CCW ODP, 0 of 4

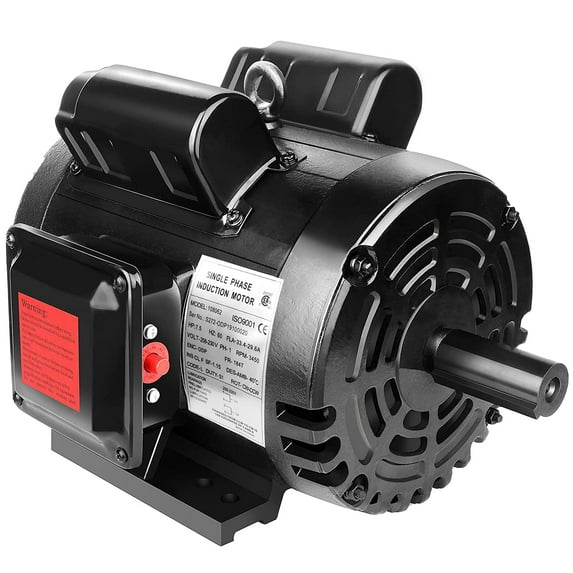

7.5 HP Air Compressor Motor Single Phase Electric Motor 3450RPM 208V-230V 2Pole 1-1/8"Shaft Diameter CW/CCW ODP
(No ratings yet)
Key item features
- Air Compressor: HP - 7.5,POLE - 2,FRAME -184T, ENC - ODP,IP - 23, INS - CLF, Rotation - CW/CCW, Shaft diameter - 1-1/8",Shaft length - 2-3/4" Open drip-proof is better used in environment that are relatively clean and dry environments
- Detailed Parameters: HZ: 60Hz, Voltage: 208-230v,AMP: 33.4-29.6A,RPM: 3450 Housing Material: Cast iron shell. Adopt S1 continuous working system, safe and durable, long service life
- High Efficiency Work: 7.5HP air compressor motor is specially designed for air compressors, with a sturdy metal casing and enough high horsepower will bring great convenience to your work
Specs
- Horsepower7.5 HP
- Electric motor typeAC Motor
- Electrical phaseSingle Phase
- Volts230 V
- Maximum motor speed3450 rpm
- BrandHaosegd
Current price is USD$419.95
Price when purchased online
Out of stock
How do you want your item?
Out of stock
About this item
Product details
Description
Note the following:
1: To exclude whether the customer's load is normal, whether it exceeds the actual power of the motor.
2: Whether the power line is thick enough, it must be above line 10.
3: Whether the relay is large enough, at least 60A.
Specification
POLE:2
FRAME:184T
Frequency: 60 Hz
Gross weight:107.48 lb
PHASE: Single phase
HORSEPOWER : 7.5 HP
Rated speed: 3450 RPM
Shaft length: 2-3/4 inch
Shaft diameter: 1-1/8 inch
Package size: 18.9 x 14.57 x 13.78 inches
Rotation: CW/CCW (Counter clockwise rotation when viewed from the shaft end. THIS MOTOR IS REVERSIBLE.)
Package Including
1 x Air Compressor Motor
Note the following:
1: To exclude whether the customer's load is normal, whether it exceeds the actual power of the motor.
2: Whether the power line is thick enough, it must be above line 10.
3: Whether the relay is large enough, at least 60A.
Specification
POLE:2
FRAME:184T
Frequency: 60 Hz
Gross weight:107.48 lb
PHASE: Single phase
HORSEPOWER : 7.5 HP
Rated speed: 3450 RPM
Shaft length: 2-3/4 inch
Shaft diameter: 1-1/8 inch
Package size: 18.9 x 14.57 x 13.78 inches
Rotation: CW/CCW (Counter clockwise rotation when viewed from the shaft end. THIS MOTOR IS REVERSIBLE.)
Package Including
1 x Air Compressor Motor
- Air Compressor: HP - 7.5,POLE - 2,FRAME -184T, ENC - ODP,IP - 23, INS - CLF, Rotation - CW/CCW, Shaft diameter - 1-1/8",Shaft length - 2-3/4" Open drip-proof is better used in environment that are relatively clean and dry environments
- Detailed Parameters: HZ: 60Hz, Voltage: 208-230v,AMP: 33.4-29.6A,RPM: 3450 Housing Material: Cast iron shell. Adopt S1 continuous working system, safe and durable, long service life
- High Efficiency Work: 7.5HP air compressor motor is specially designed for air compressors, with a sturdy metal casing and enough high horsepower will bring great convenience to your work
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it. Â
Specifications
Horsepower
7.5 HP
Electric motor type
AC Motor
Electrical phase
Single Phase
Volts
230 V
Warranty
Warranty information
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
